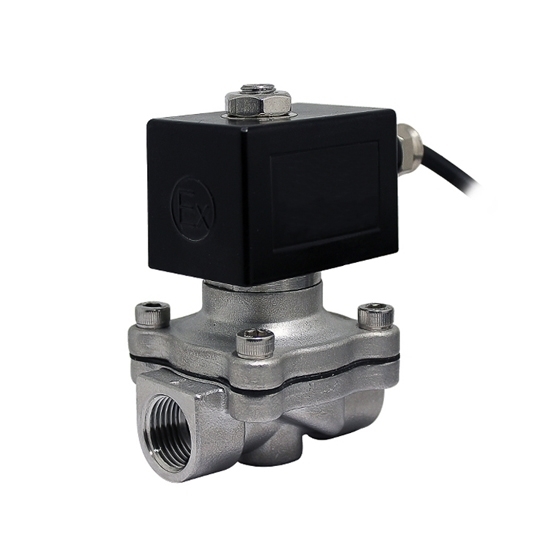

Explosion Proof Solenoid Valve, Stainless Steel, NC, AC 24V/110V/220V

0 reviews • Write a review

from

$311.53

Ex Tax: $311.53

Stock: In Stock
Model: RDDLZ-EPSV-SNCA
Weight: 1.00
SKU: RDDLZ-EPSV-SNCA

Available Options

Short Description

Voltage

Port Size

Fluid Temperature

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

Stainless steel solenoid valves is suitable for hot water and oil. This solenoid valve features high quality, high reliability and long service life.

Specification:

Model	RDDLZ-2WEX-10	RDDLZ-2WEX-15	RDDLZ-2WEX-20	RDDLZ-2WEX-25	RDDLZ-2WEX-32	RDDLZ-2WEX-40	RDDLZ-2WEX-50
Port Size	3/8"	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Orifice (mm)	10	15	20	25	32	40	50
Cv	4.5	4.5	9.3	12	24	29	48
Min Pressure	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa	0.0 MPa
Max Pressure (AC 20VA)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Max Pressure (DC 16W)	0.7 MPa	0.7 MPa	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Medium	steam and hot water, civil gas, oil
Fluid Temperature	NBR (-5 ℃ to 80 ℃), EPDM (-5 ℃ to 100 ℃), VITON (-5 ℃ to 120 ℃)
Screw Thread	NPT (contact us for G screw thread if you need)
Port Thread	BSPP, BSPT, NPT, FLANCE
Voltage	AC 24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Coils	Ex1620, 20VA (AC),16W (DC), IP65, 100% ED
Body Material	stainless steel UPVC
Tolerance	±10%
Seal	VITON, PTFE, NBR, EPDM
Armature Tube	stainless steel 304 (316 can be customized)
Explosion Proof	Ex mb II T4 Gb

Explosion Proof Solenoid Valve NC Structure:

Thread Connection Dimension (Unit: mm)

Size		2WEX-10	2WEX-15	2WEX-20	2WEX-25
A		68	68	68	97
B		56	56	56	76
C	NO	110	120	128	135
C	NC	100	110	117	125
D		13.5	13.5	16.5	20

Size		2WEX-32	2WEX-40	2WEX-50
A		115	122	166
B		86	93	118.5
C	NO	148	157	182
C	NC	148	157	182
D		24	28	36

Tips: What is NBR?

Nitrile butadiene rubber (NBR)is prepared by emulsion polymerization of butadiene and acrylonitrile. Nitrile butadiene rubber is mainly produced by low temperature emulsion polymerization. It has excellent oil resistance, high wear resistance, good heat resistance and strong adhesion. It is widely used to make all kinds of oil-resistant rubber products, bushing, flexible packaging, flexible hose, cable adhesive materials, etc., and has become an indispensable elastic material in automobile, petroleum, and other industries.
