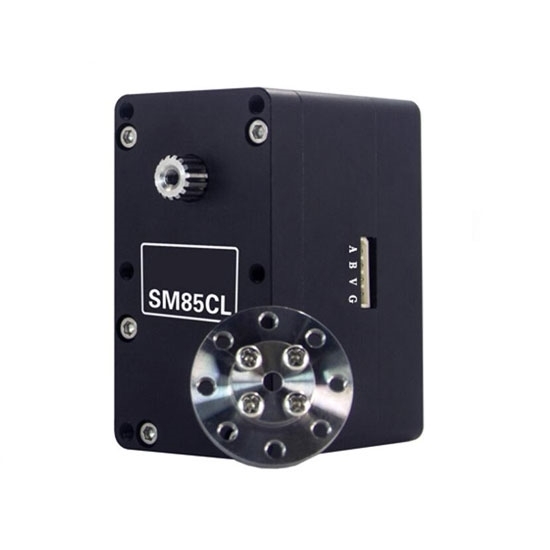

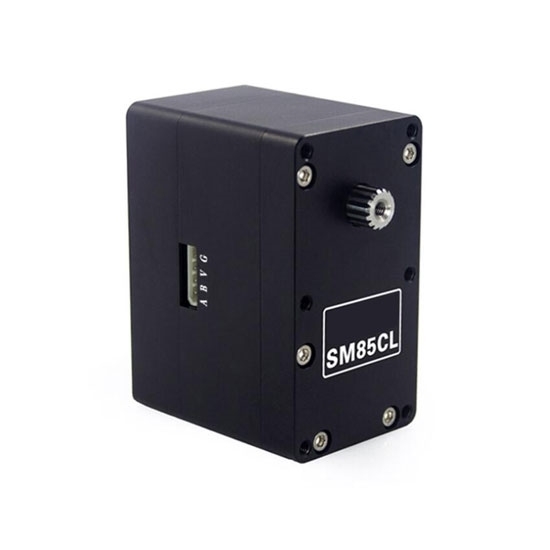

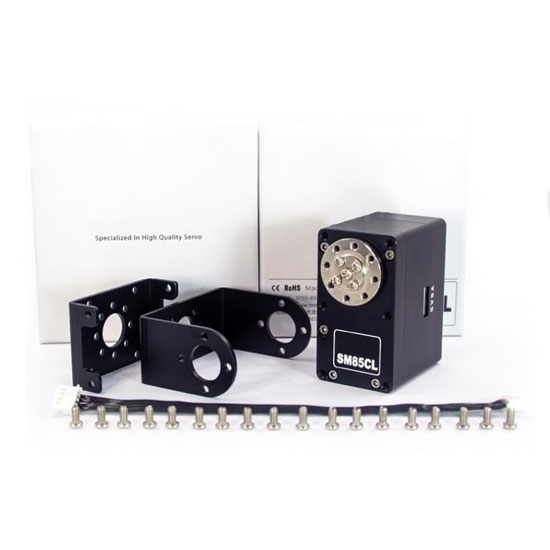

85 Kg·cm (8 Nm) RC Servo Motor, 12V

0 reviews • Write a review

from

$379.99

Ex Tax: $379.99

Stock: In Stock
Model: RDDLZ-SERVO-RC85
Weight: 1.00
SKU: RDDLZ-SERVO-RC85

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

85 kg·cm micro remote control servo has a high-precision brushless motor, engineered for superior performance and durability. Digital radio control (RC) steering servos are widely used in various remote-controlled systems, such as model airplanes, cars, boats, and robots.

Features

High resolution: Micro RC servo motor uses a non-contact absolute 12-bit encoder (360 degrees 0.088 degrees) with high resolution.
Serial bus type: Radio control servo motor supports serial bus daisy chain, 254 ID addresses are optional.
Position servo control mode: Digital remote control servo can rotate 0~360° and multiple turns of any absolute angle.
Speed control mode: With a wide speed adjustment range, it can control continuous rotation in forward and reverse directions at a constant speed.
One-button setting of intermediate position: The current position can be freely defined as the initial or intermediate point.

Specification

Model	RDDLZ-SM8512BL
Electrical Specification	Operating Voltage	12V
	No Load Speed	0.27sec/60°
	Idle Current (at Stopped)	40mA
	Running Current (No Load)	200mA
	Stall Torque	85 kg·cm (8 Nm)
		1182.5oz. in
	Stall Current (at Locked)	3200mA
Mechanical Specification	Size	623447mm
	Limit Angle	No Limit
	Case Material	Aluminum
	Gear Material	Steel Gear
	Bearing Type	2 Ball Bearings
	Weight	140g
	Horn Type	15T (7.6mm)
	Connector Wire	150mm ± 5mm
	Motor	Core Motor
	Storage Temperature Range	-30℃ ~ 80℃
	Operating Temperature Range	-20℃ ~ 70℃
	Temperature Range	25℃ ± 5 ℃
	Humidity Range	65% ± 10%
	Certificate	EMC, ROHS
Control Specification	Command Signal	Bus Packet Communication RS485
	Amplifier Type	Half Duplex Asynchronous Serial Communication
	Pulse Width Range	0-253
	Neutral Position	38400bps ~ 1 Mbps
	Running Degree	360° (when 0 ~ 4096)
	Feedback	Load, Speed, Input Voltage
	Position Sensor (Resolution)	12 Bits Magnetic Coding (360° / 4096)

Dimensions (Unit: mm)

Details

Tips: RC servo motor operation and performance characteristics

The digital radio control servo motor is widely used in automatic control occasions. Its output torque, rotation speed, command update frequency, etc. standardizes the working performance of the radio control servo motor. Normally, the operation of the micro remote control servo motor depends on the unique pulse command high-level time width and has nothing to do with the frequency of the pulse command. Therefore, the function of the pulse waveform that controls the RC servo motor and the PWM waveform that controls the operation of the motor are different. There is a drive circuit board inside the RC servo motor to ensure a proportional relationship between the output angle and the width of the pulse command. The output angular speed of the RC steering servo motor depends on various factors such as the internal mechanical structure, the performance of the motor, and the working voltage. Since the speed of the RC servo motor has nothing to do with the command, in essence, it is not a linear model. When it rotates at a larger angle, its dynamic nonlinearity is more obvious.
