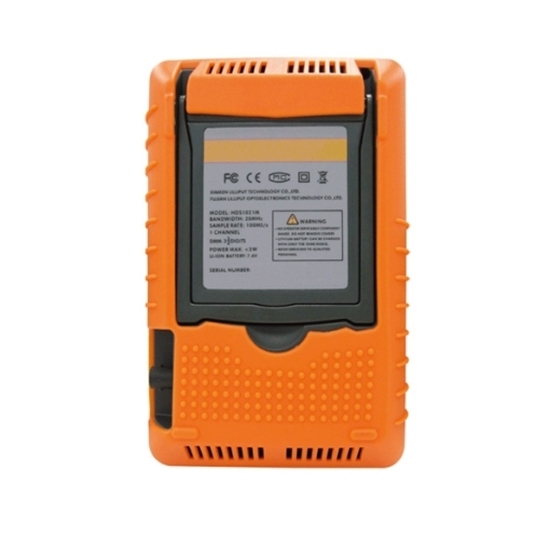

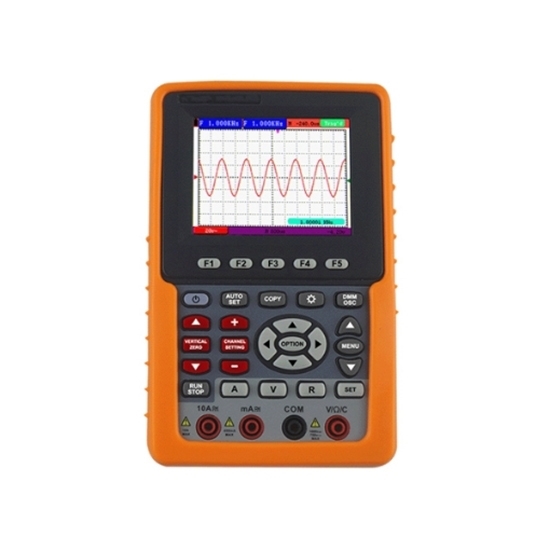

60 MHz Handheld Oscilloscope, 500 MSa/s, Single Channel

0 reviews • Write a review

from

$554.13

Ex Tax: $554.13

Stock: In Stock
Model: RDDLZ-HO-60
Weight: 1.00
SKU: RDDLZ-HO-60

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Lower-cost single-channel portable oscilloscope with 500 MSa/s sample rates, 8 bits, and 6 kinds of automatic measurement functions. The single-channel oscilloscope can quickly and accurately detect the faults of the circuit under test and can serve as an assistant, and will provide a great convenience for you at work.

Specification

Performance Characteristics

Model	RDDLZ-HDS2061M-N
Bandwidth	60 MHz
Channel	Single channel
Sample rate	500 MSa/s
Horizontal Scale (s/div)	5ns/div～100s/div, step by 1～2.5～5
Record length	24K points
Display	3.7" color TFT display (640 * 480 pixels)
Waveform refresh rate	10000 wfrms/s
Input coupling	DC, AC, Ground
Input impedance	1 MΩ±2%, in parallel with 18 pF±5 pF
Probe attenuation	1X,10X,100X,1000X
Max. input voltage	400V (PK - PK) (DC + AC, PK - PK, 1MΩ input impedance, probe attenuation 10 : 1), CAT II
Bandwidth limit(typical)	20MHz / Full bandwidth
Sampling rate range	5ns/div ~ 500s/div, step by 1 – 2 - 5
DC Accuracy (average)	average >16: ±(5% reading + 0.05div) for △V
Vertical Sensitivity	5mV/div～5V/div (at input)
Rise time (at input, Typical)	≤ 17.5ns
Trigger type	Edge and Video
Trigger model	Auto, Normal, Single
Trigger level range	±6 div from the screen center
Automatic measurement	Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Vamp, Overshoot, Preshoot, Rise Time, Fall Time, +Width, -Width, +Duty, -Duty, Delay A→B , Delay A→B
Cursor measurement	ΔV, ΔT, ΔT&ΔV between cursors,auto cursor
Communication interface	USB Type-C
Acquisition Mode	Sample, Peak Detect, and Average
Interpolation	sin (x) / x
Vertical Resolution (A/D)	8 bits
Waveform Storage	4 waveforms
Communication Interface	Mini-USB，mini-RS232
Power Supply	100V-240V AC, 50/60Hz

Digital Multimeter Specification

Full-Scale Reading	3 3/4 digits (max 4000-count)
Diode	0V-1.5V
Input Impedance	10 MΩ
On/ Off Test	< 50 (± 30) beeping
Voltage	VDC: 400mV, 4V, 40V, 400V, 1000V : ±(1% ± 1 digit); max input: DC 1000V
	VAC: 4V, 40V, 400V: ±(1% ± 3 digits), 750V: ±(2% ± 3 digits); Frequency: 40Hz - 400Hz;
	Max input: AC 750V (virtual value)
Current	DC: 40mA, 400mA : ±(1.5% ± 1 digit), 10A: ±(3% ± 3 digits)
Current	AC: 40mA: ±(1.5% ± 3 digits), 400mA: ±(2% ± 1 digit), 10A : ±(5% ± 3 digits)
Impedance	400Ω: ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ: ±(1% ± 1 digit), 40MΩ: ±(1.5% ± 3 digits)
Capacitance	51.2nF - 100uF: ±(3% ± 3 digits)

Accessories

Power cord
CD rom
USB cable
Probe
Probe Adjust
Multimeter lead
Adapter
User manual
5V, 1KHz Output
Capacitance Ext Module
Soft Bag
Metal Case (optional)

Dimension (mm)

Details

Tips: Tips for using a handheld oscilloscope

Thermal electronic instruments generally need to avoid frequent startup and shutdown, and the same is true for oscilloscopes.
If you find that the waveform is disturbed by the outside world, you can ground the oscilloscope shell.
The voltage of "Y input" should not be too high, so as not to damage the instrument, and it should not exceed 400V at the maximum attenuation. When the "Y input" wire is suspended in the air, interference waveforms will appear due to external electromagnetic interference, which should be avoided.
Before shutting down, turn the brightness adjustment knob counterclockwise to the bottom to minimize the brightness, and then turn off the power switch. Analog oscilloscope.
When observing and adjusting the bright spot on the screen, the brightness of the bright spot should be moderate and not too bright.
