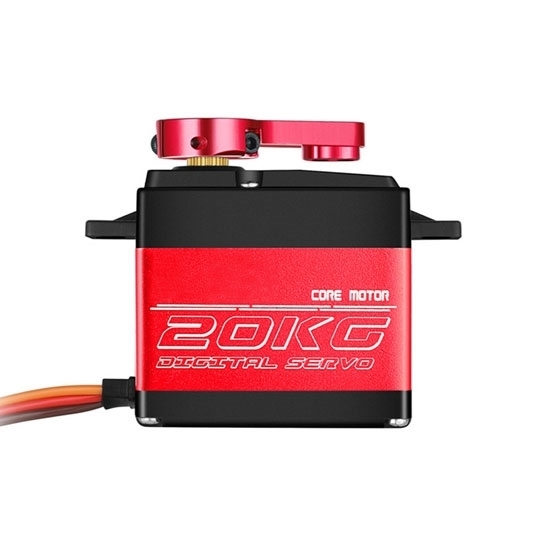

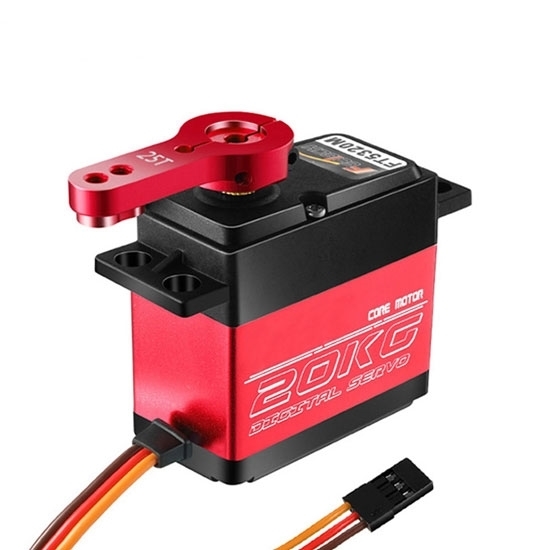

Digital radio control (RC) servo motor adopts 12-bit high precision non-contact magnetic encoder position sensing, compact design with high torque, best for remote controlled cars, model planes, submarines, remote-controlled robots, etc.

Specification

Dimensions (Unit: mm)

Waterproof details

• A waterproof rubber ring is added to the connection of the radio control servo motor.
• The circuit board of the RC servo motor is waterproofed with three-proof paint.
• The remote control servo motor is sealed.
• The potentiometer is sealed.

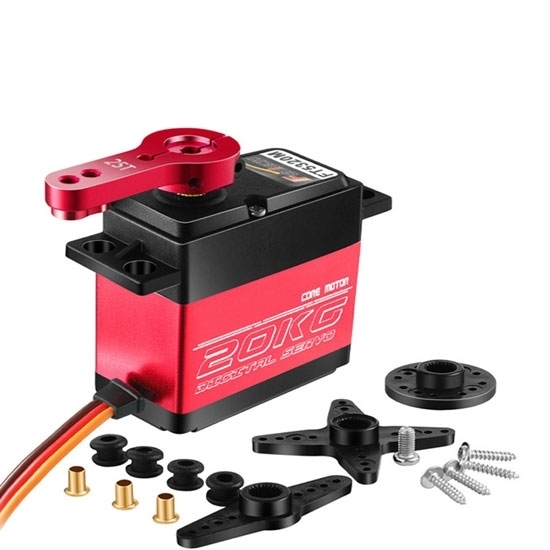

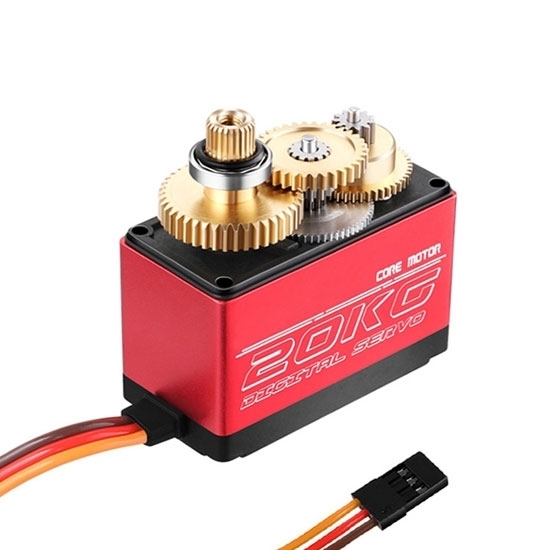

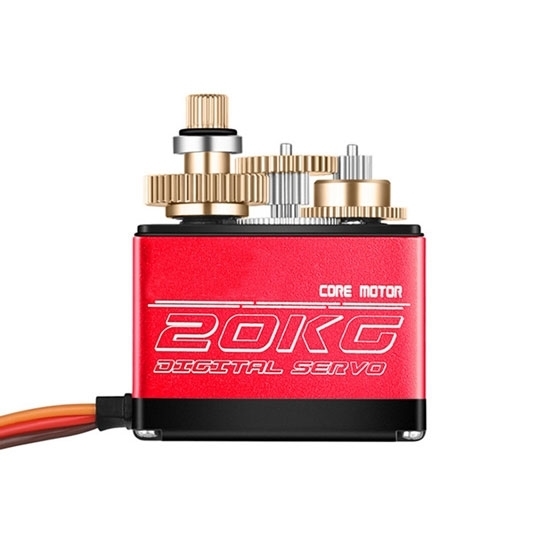

Details

Tips: What is a micro RC servo motor?

RC micro servo motor refers to the motor that controls the operation of mechanical components in the servo system and is an auxiliary motor indirect speed change device. Digital radio control servo motors can control the speed and position very accurately and can convert the voltage signal into torque and speed to drive the control object. The rotor speed of the remote control servo motor is controlled by the input signal and can react quickly. In the automatic control system, it is used as an actuator and has the characteristics of small electromechanical time constant, high linearity, and starting voltage. It can control the received electrical signal Converted into angular displacement or angular velocity output on the motor shaft. Divided into two major categories of DC and AC servo motors, its main feature is that there is no rotation when the signal voltage is zero, and the speed decreases at a uniform speed as the torque increases.
