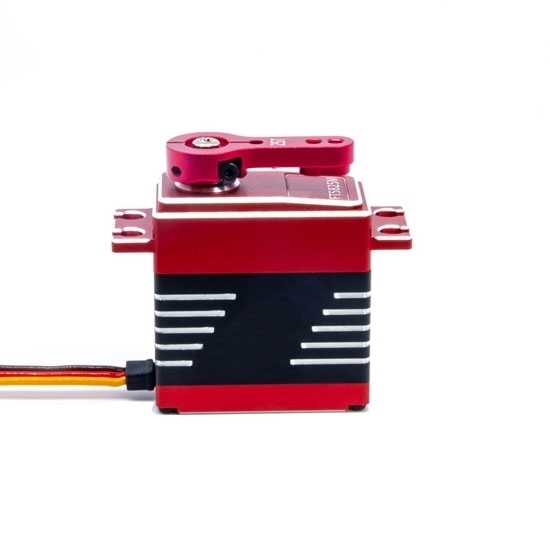

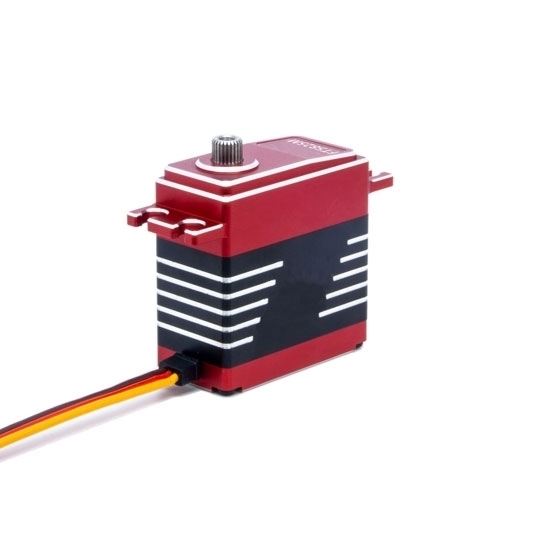

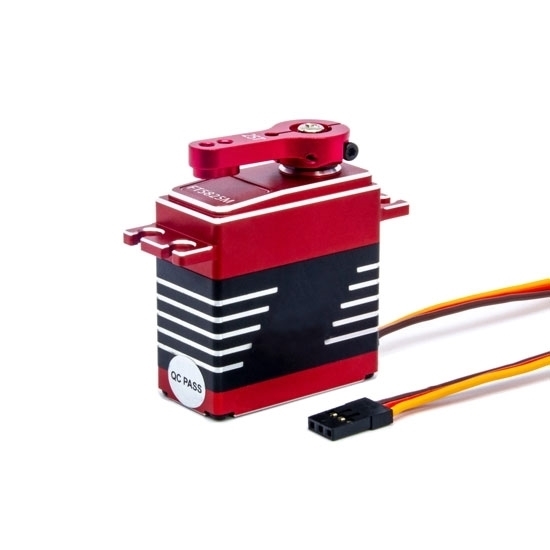

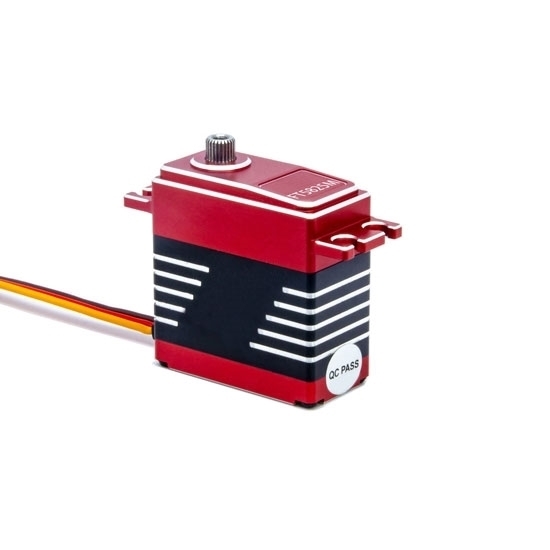

Digital 30 kg·cm radio control (RC) servo motor features a core motor with a 220° angle sensor, steel gears, and operating voltages of 6V or 7.4V. RDDLZ micro remote control servo is compact and waterproof, making it ideal for use in RC cars, planes, and other steering systems.

Specification

Dimensions (Unit: mm)

Waterproof details

• A waterproof rubber ring is added to the connection of the radio control servo motor.
• The circuit board of the RC servo motor is waterproofed with three-proof paint.
• The remote control servo motor is sealed.
• The potentiometer is sealed.

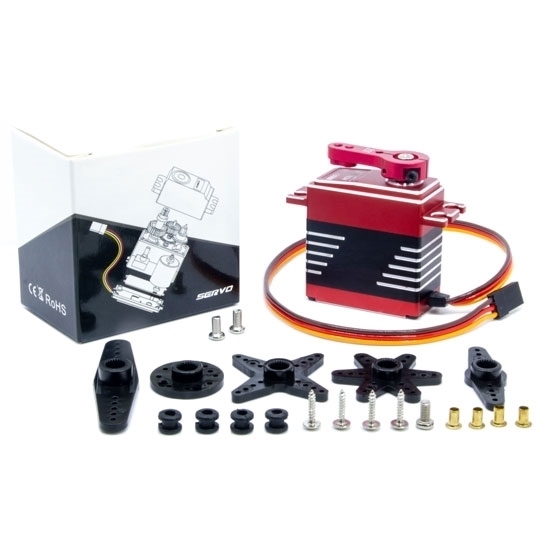

Details

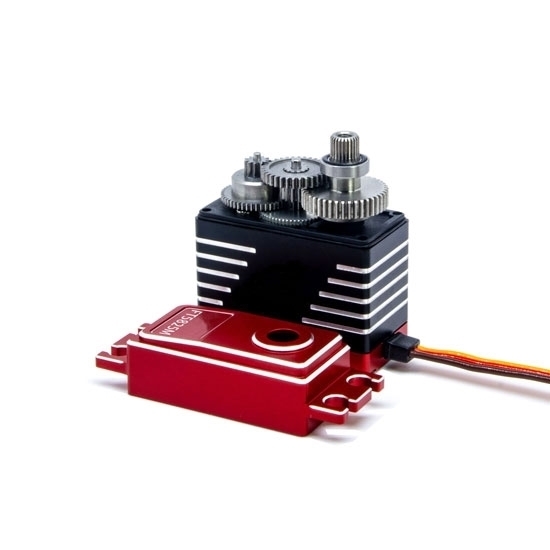

Tips: Structure of micro RC servo motor

The structure of a micro RC servo motor consists of several key components working together to provide precise control and high torque. At its core, the servo includes a small electric motor that drives the mechanism. The motor is coupled with a set of gears, often made from durable materials like steel, which help to amplify the torque and reduce wear. A typical radio control servo uses a system of metal or plastic gears, which are supported by double ball bearings for smooth and efficient movement.
Additionally, a position feedback sensor, usually an angle sensor, is integrated into the digital RC servo to provide real-time position data. This allows the remote control servo to make precise adjustments based on the control signal. The motor's casing is typically waterproof, ensuring it can function in various environmental conditions, such as RC cars, boats, or planes. The servo’s compact size, combined with selectable voltage options, makes it versatile for various RC applications.
