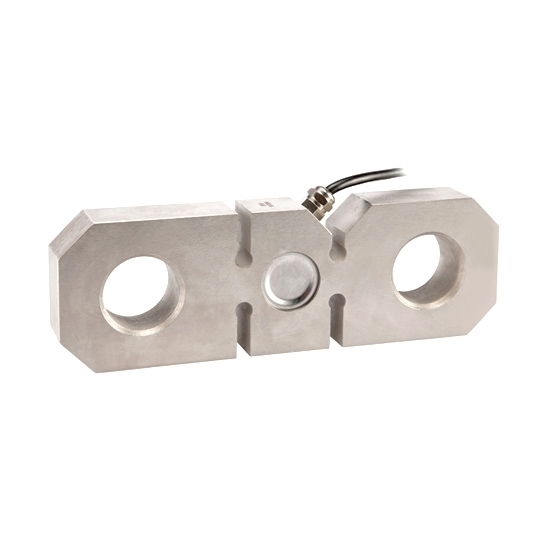

Tension Load Cell For Crane, 2 Ton/5 Ton/30 Ton/50 Ton To 70 Ton

0 reviews • Write a review

from

$153.85

Ex Tax: $153.85

Stock: In Stock
Model: RDDLZ-LC-T01
Weight: 1.00
SKU: RDDLZ-LC-T01

Available Options

Capacity

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal of load cell transmitter is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Tension and compression load cells have capacity range from 2 ton, 3 ton, 5 ton, 7 ton, 10 ton, 20 ton, 30 ton, 50 ton, 70 ton to 100 ton. Strain gauge load cell capacity can be customized according to customer requirements.

Specification

Model	RDDLZ-LCST-TJL-7
Shipping Weight	1.5~50kg
Capacity Range *	2 ton~100 ton

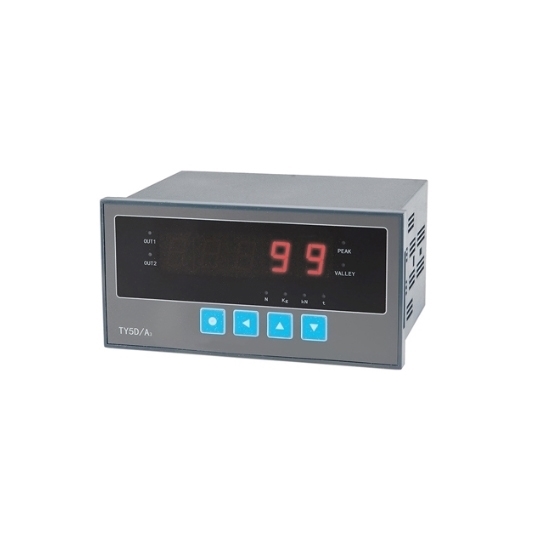

Matched Display Controller	RDDLZ-TY5DA3 (Click it to the controller page)

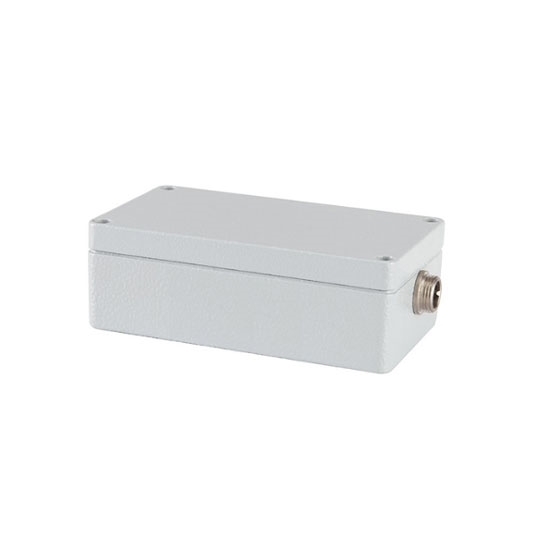

Matched Transmitter	RDDLZ-LCTR-NTB3K (Click it to the transmitter page)
Accuracy	0.03~0.05%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±0.1mV/V
Creep	±0.02%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.02%F.S/10℃
Temperature Effect on Output	±0.02%F.S/10℃
Operating Temperature	-20℃~+65℃
Input Impedance	380±10Ω
Output Impedance	350±3Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 10V
Material	Alloy steel
Protection Class	IP67
Cable Length	3m (＜5ton), 6m (≥5ton)
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
Certification	CE

Feature

Sealed Structure: Excellent sealing performance, easy to install, resistant to corrosion, and pressure.
Multiple Range Options: Selectable measurement ranges from 2t to 70t based on actual needs.
High Precision: Accurate measurements in extreme environments, including high/low temperatures and high pressure.
High-Quality Materials: Made with 42CrMo alloy steel, offering high strength and toughness.
Stable Output: Stable signal output, with strong anti-dry and anti-pull performance.
Fine Workmanship: Advanced drilling technology, well-designed for easy installation with two board hole designs.

Tension load cell for crane dimension

Capacity	Dimension (mm)
Capacity	A	B	C	D	Ф
2~3 ton	200	65	25	130	32
5 ton	230	70	30	150	36
7~10 ton	300	90	38	200	45
15~20 ton	330	110	42	205	60
30 ton	350	126	50	216	60
50~70 ton	500	180	60	320	72

Wiring Method

Application

Tips: How does a Tension Load Cell improve crane operation and maintenance?

Tension Load Cells contribute significantly to both crane operation and maintenance in the following ways:

Enhanced Crane Operation: By providing real-time feedback on the load being lifted, operators can ensure that cranes are not overloaded, which reduces the risk of mechanical failure. Additionally, load cells can be integrated into a crane’s control system to adjust lifting speeds or stop operations if an overload is detected, providing automatic protection.
Improved Maintenance Practices: With accurate load measurements, maintenance teams can track the crane’s usage more precisely. For instance, if a load cell reports frequent overloads, this could indicate that the crane's mechanical components are under excessive strain, prompting early intervention before damage occurs.
Preventive Maintenance: By consistently monitoring the loads lifted, maintenance staff can anticipate when the crane will require servicing. This helps schedule preventive maintenance tasks, ensuring that the crane remains in optimal working condition, reducing unexpected downtime and repair costs.
