Note: This Y type strainer cannot be used for drinking water.

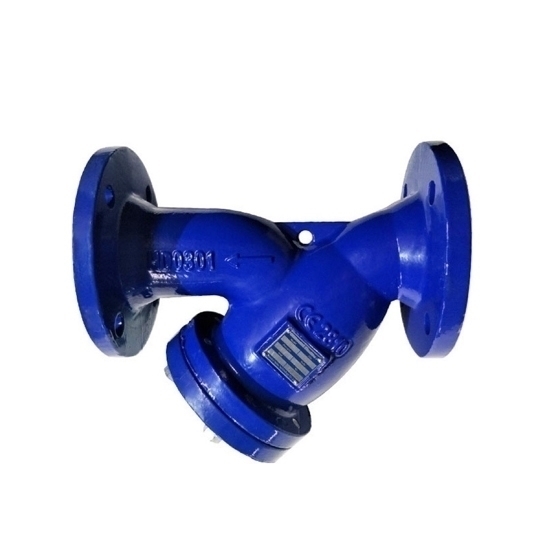

Low price 6" (DN150) Y strainer, flanged type, comes with PN16 working pressure, ductile cast iron material, commonly used in water plants, papermaking, metallurgy, chemical, petroleum, construction, wind power, construction and other pipeline projects.

Specifications

• Model: RDDLZ-GL41H-16Q
• Type: Y Type Strainer
• Size: 6 inch (DN150, 150mm)
• Connection Method: Flange Connection
• Material: Ductile Cast Iron
• Pressure: PN16
• Applicable Temperature: -10~200℃
• Suitable Medium: Water, oil etc.
• Design and Manufacture: GB/T 14382
• Pressure Test: GB/T 14382
• Applications: Food, medicine, chemical industry, environmental protection, water treatment, water supply and drainage.

Dimension (Unit: mm)

Applications

Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.

Tips: What is the difference between a Y strainer and a basket strainer?

The primary difference between a Y strainer and a basket strainer lies in their design and application. A Y strainer has a compact, angled design, making it suitable for smaller pipelines or tight spaces. It typically features a conical or cylindrical filter element positioned in the shape of a "Y," which allows for efficient filtration in a smaller footprint. In contrast, a basket strainer has a larger, more open filtering area due to its basket-shaped screen. This design is ideal for applications with higher debris loads or where more extensive filtering capacity is needed. Basket strainers are usually used in larger pipelines and can handle more significant volumes of debris, but they require more space for installation and maintenance.
