80mm Non Contact Displacement Measurement Sensor

0 reviews • Write a review

from

$1,218.89

Ex Tax: $1,218.89

Stock: In Stock
Model: RDDLZ-MSR-A0080
Weight: 1.00
SKU: RDDLZ-MSR-A0080

Available Options

Output Signal

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

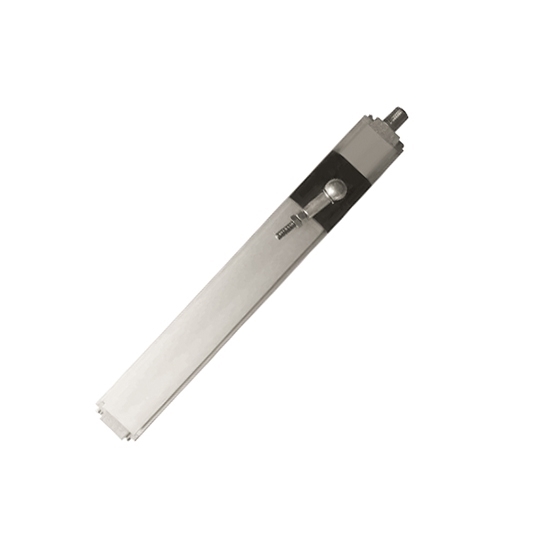

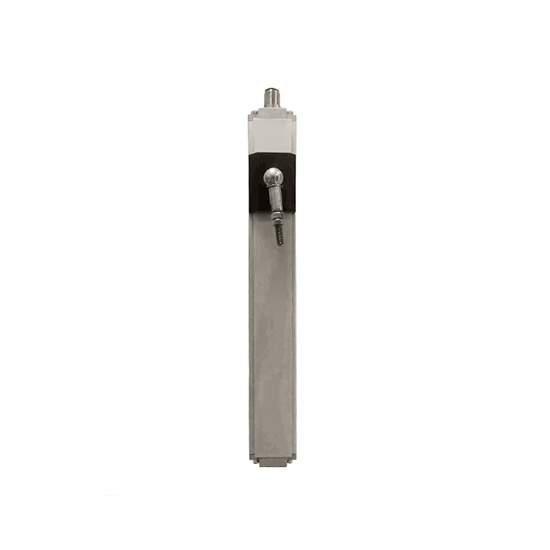

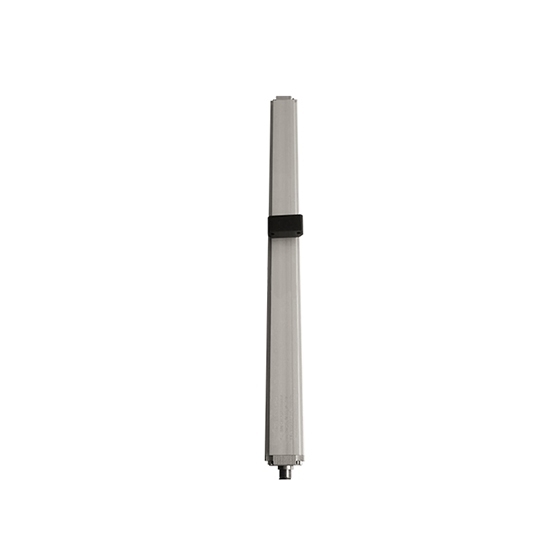

Non contact linear displacement sensor with measuring range 80mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive displacement sensors are widely used in all kinds of CNC machinery that always working in large vibration.

Specification:

Model	RDDLZ-CTH-A-80
Measuring Range	80mm
Output Signal	0~5V/ 0~10V/ 0~20mA/ 4~20mA (Optional)
Linearity	≤±0.05%FS
Repeatability	≤±0.005%FS
Resolution	Infinite resolution (depending on controller AD and power supply ripple)
Hysteresis	≤0.001%FS
Temperature Drift	≤0.001%FS
Operating Voltage	24VDC
Current Draw	5~16mA
Vibration	5g/10-2000Hz/IEC Standard IEC Standard 68-2-6
Temperature	-40°C~+85°C
Load Characteristics	Voltage output load resistance ≥3KΩ
Load Characteristics	Current output load resistance ≤1KΩ
Connection Type	Slide type or magnetic levitation type
Protection Class	IP65

Dimensional drawing (unit: mm):

Installation diagram:

Tips: Why magnetostrictive sensor is the non contact measurement sensor?
The magnetostrictive displacement sensor adopts working principle of non-contact magnetic induction measurement. So, the problem about mechanical wear will not occur within the full service life of the product. In the meantime, such measuring mode can be favorable for effectively eliminating the measuring error caused by the vibration and enhancing the reliability of the sensor and extending its service life.
