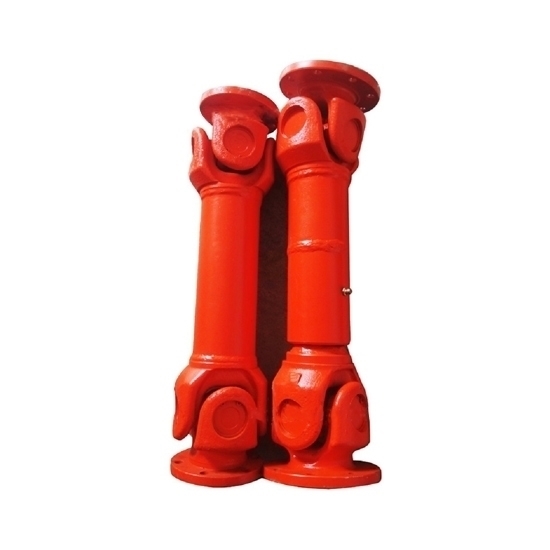

High-efficiency universal joint shaft coupling with a bore of 225mm, and flexibility of 140mm. The structure of the universal coupling is reasonable, the use is safe and reliable.

Features

• The structure is reasonable, the use is safe and reliable, and the integral fork head is adopted, which eliminates the weak link of the bolt pressing the bearing seat (cover), and completely avoids the common vicious damage caused by the loosening or breaking of the bolts.
• The service life is 30%-50% higher than other types of couplings.
• High carrying capacity.
• The transmission efficiency is high, the transmission efficiency is as high as 98.7%-99.9%, and the energy saving is remarkable when used in high-power transmission, which can reduce power consumption by 5%-15%.
• The transmission is stable and the noise is low, the general noise is 30-40dB(A).

Specification

• Model: RDDLZ-SWC-225BH
• Nominal torque: 40 KNm
• Bore: 225mm
• Shaft hole diameter D1: 225 mm
• Shaft bore D2: 225 mm
• Outer diameter: 152 mm
• Overall length: 920 mm
• Fatigue torque: 20 KNm
• Maximum axis knuckle: ≤15°
• Flexibility: 140 mm

Dimension

Application

Tips: Where is universal coupling used?

A universal coupling is a linkage or joint between two shafts, for example, a driving shaft and a driven shaft, which permits rotation of the shafts when their axes do not coincide. Such couplings are very widely used, for example, in machine tools, instruments, control devices, and automobiles.
