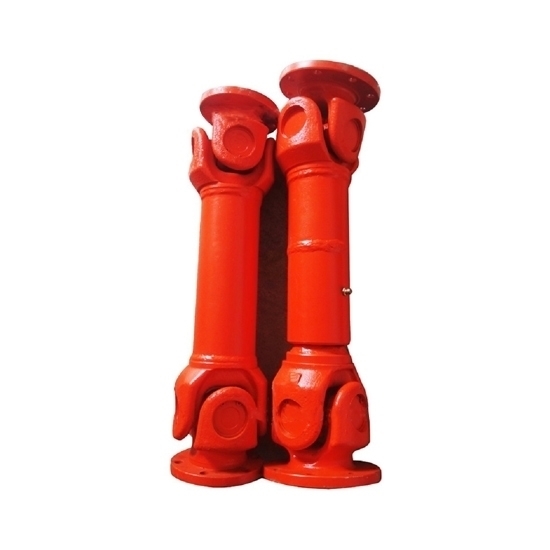

Universal Joint Coupling, 180mm

0 reviews • Write a review

from

$1,288.46

Ex Tax: $1,288.46

Stock: In Stock
Model: RDDLZ-UJC-180
Weight: 1.00
SKU: RDDLZ-UJC-180

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High-accuracy universal joint shaft coupling with bore 180mm, flexibility of 100mm. 180mm universal coupling is widely used in metallurgical machinery, heavy machinery, petroleum machinery, engineering machinery and other industries.

Features

The structure is reasonable, the use is safe and reliable, and the integral fork head is adopted, which eliminates the weak link of the bolt pressing the bearing seat (cover), and completely avoids the common vicious damage caused by the loosening or breaking of the bolts.
The service life is 30%-50% higher than other types of couplings.
High carrying capacity.
The transmission efficiency is high, the transmission efficiency is as high as 98.7%-99.9%, and the energy saving is remarkable when used in high-power transmission, which can reduce power consumption by 5%-15%.
The transmission is stable and the noise is low, the general noise is 30-40dB(A).

Specification

Model: RDDLZ-SWC-180BH
Nominal torque: 12.5 KNm
Bore: 180mm
Shaft hole diameter D1: 180 mm
Shaft bore D2: 180 mm
Outer diameter: 114 mm
Overall length: 810 mm
Fatigue torque: 6.3 KNm
Maximum axis knuckle: ≤25°
Flexibility: 100 mm

Dimension

Lmin	D1	D2	D3	Lm	n-d	K	t
810mm	155mm	105mm	114mm	110mm	8-φ17	17mm	5mm
