1000mm Magnetostrictive Displacement Sensor For Wallboard Machine

0 reviews • Write a review

from

$979.86

Ex Tax: $979.86

Stock: In Stock
Model: RDDLZ-MSR-B1000
Weight: 1.00
SKU: RDDLZ-MSR-B1000

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

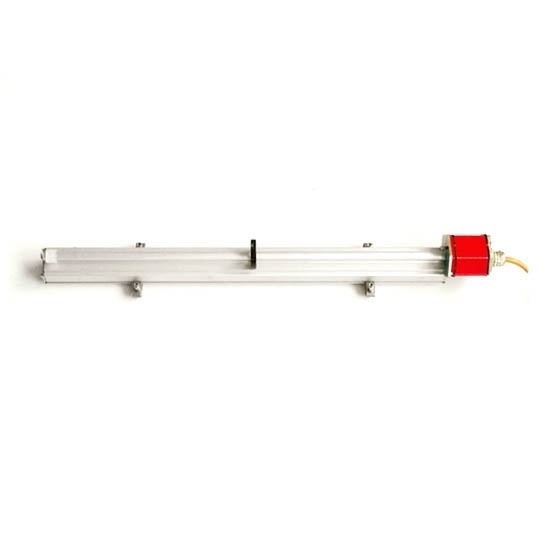

Magnetostrictive linear displacement sensor with measuring range 1000mm has a aluminum alloy rail. Its electronic head parts are all built into aluminum alloy shell. Magnetostrictive sensors are widely used in all kinds of CNC machinery that always working in large vibration.

Specification:

Basics	Model	RDDLZ-MSR-B1000
	Measuring range	0~1000 mm
	Shipping weight	5.5 kg
	Length	1173.1 mm
Technical parameters	Linearity	≤0.03%FS
	Repeatability	≤0.003%FS
	Resolution ratio	≤0.001%FS
	Hysteresis	≤0.001%FS
	Temperature excursion	≤0.001%FS
	Operating voltage	24V DC
	Current drain	5～16mA
	Vibration coefficient	5g/10-2000Hz/IEC standards IEC standards 68-2-6
	Operating temperature	-40℃~85℃
	Load characteristic	Output voltage, load resistance≥3KΩ; Output current, load resistance≤1KΩ
	Output	0~5V; 0~10V; 0~20mA; 4~20mA
	Installation method	Fixed clip, with specific screw M5X20
	Magnet type	Slider magnet, levitating magnet
	Protection Class	IP65

Dimensional drawing (unit: mm):

Installation diagram:

Tips: Magnetostrictive sensors apply in hydraulic mill control
Hydraulic mill is the main equipment to produce black and colorful strip, the main index including tolerance of strip thickness, strip shape, production capacity. Of which, tolerance of strip thickness is the key index. Tolerance of strip thickness control is the most important step in the whole rolling process. In control unit (process), inspecting oil cylinder position (roll gap) is the most important. Oil cylinder position value is the feedback value of closed loop controlled by roll gap. According to mill bounding principle, roll gap control means control the strip rolling thickness. Refer to automatic gain control (AGC) of hydraulic mill, the position detection of hydraulic oil cylinder normally adopts magnetostrictive sensor.
