100mm Linear Displacement Sensor For Injection Machine

0 reviews • Write a review

from

$929.86

Ex Tax: $929.86

Stock: In Stock
Model: RDDLZ-MSD-0100
Weight: 1.00
SKU: RDDLZ-MSD-0100

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

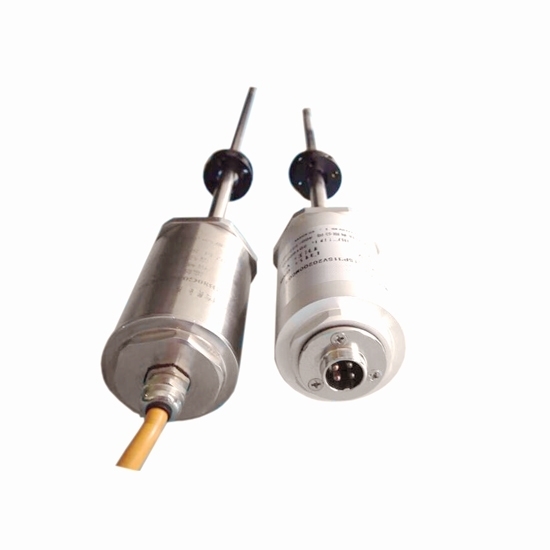

Magnetostrictive linear displacement sensor with measuring range 100mm is used for liquid level preset and feedback, such as the liquid level of injection machine hydro-cylinder. Magnetostrictive sensors also can be used in most industrial automation systems.

Specification:

Basics	Model	RDDLZ-MSD-0100
	Measuring range	0~100 mm
	Shipping weight	1 kg
	Length	299.3 mm
	Diameter	51 mm
Technical parameters	Linearity	≤0.03%FS
	Repeatability	≤0.003%FS
	Resolution ratio	≤0.001%FS
	Hysteresis	≤0.001%FS
	Working Voltage	24V /12V DC
	Working current	Voltage /digital output type≤16mA; Current output type≤35mA
	Output method	0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
	Product type	Normal type; Explosion-proof type; Anti-corrosion type
	Measuring rod material	0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
	Measuring rod diameter	Ф10mm
	Electronic bin material	1Cr18Ni9 (304)
		304 and PTFE casing outside (Anti-corrosion type, special custom-made)
		1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
	Connecting screw thread	M18×1.5; M20×1.5; 3/4-16UNF
	Type of lead wire	PVC shielded cable; aviation plug (not applicable to explosion-proof type)
	Measuring rod pressure	40MPa, 70MPa (Explosion-proof type)
	Temperature	T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
	Buffer area	Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
	Vibration	100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
	Protection Class	IP67
	Explosion-proof level	Explosion-proof type: EXd II BT5

Installation diagram (unit: mm):
1. PG7 connection

2. Explosion-proof connection

3. External installation

Tips: Magnetostrictive sensor vs Potentiometer
In the earlier stage, potentiometer is widely applied into injection molding machine. However, no matter its accuracy, reliability, stroke and service life is not better than that of magnetostrictive displacement sensor. Because the potentiometer is contact-type, carbon brush will be inevitably worn after repeatedly used for a long time and ultimately invalid. However, magnetostrictive displacement sensor features non-contact, no wear, durability, simple installation and compact appearance. So it possesses more incomparable technical advantages than potentiometer.
