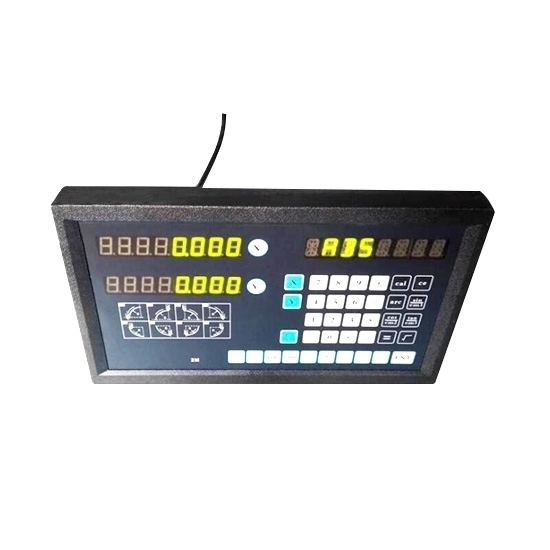

Precision Digital Panel Meter For Grating Ruler 7 Digit

0 reviews • Write a review

from

$226.15

Ex Tax: $226.15

Stock: In Stock
Model: RDDLZ-DPM-GR7D
Weight: 1.00
SKU: RDDLZ-DPM-GR7D

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Intelligent digital panel meter is widely used in machine tool processing and precision measurement of instruments, and can be selected for all kinds of machine tool retrofitting, and instrument digitized transformation.

Functions:

Absolute/ relative counting conversion
1000 groups of zero memory
Function calculator operation
Metric system/ british system conversion
Circular arc processing
Bevel processing
Circumference drilling
Oblique line drilling
Any point zero clearing
Power failure memory
Non-linear compensation

Specification:

Basics	Model	RDDLZ-DPM7
	Dimension	29517065 mm
	Shipping weight	2 kg
Technical parameters	Voltage	80-260V AC, 50-60Hz
	Power	15VA
	Display method	7 digit LED display
	Operating temperature	0~45℃
	storage temperature	-30~70℃
	Relative humidity	＜90%
	Display coordinate axis	two-axis, three-axis, four-axis, five-axis (optional)
	Input signal	TTL square wave
	Resolution ratio	0.1um; 0.2um; 0.5um; 1um; 5um; 10um
	Resolution ratio of angle (minimum)	0.001/pulse
	Communication	RS232 serial communication

Tips: How to install precision digital panel meter for grating ruler/infrared linear displacement sensor?

On the fixed distribution cabinet, choose a proper place to trepan an mounting hole according to the hole size.
Take out the panel meter, loosen the positioning screw, and remove the fixed clamp.
Insert the precision digital panel meter into the mounting hole of distribution cabinet.
Insert the fixed clamp of the panel meter and fasten the positioning screw.
