Handheld Barcode/QR Code Inkjet Printer

0 reviews • Write a review

from

$384.62

Ex Tax: $384.62

Stock: In Stock
Model: RDDLZ-PRINT-01
Weight: 1.00
SKU: RDDLZ-PRINT-01

Available Options

Ink Type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

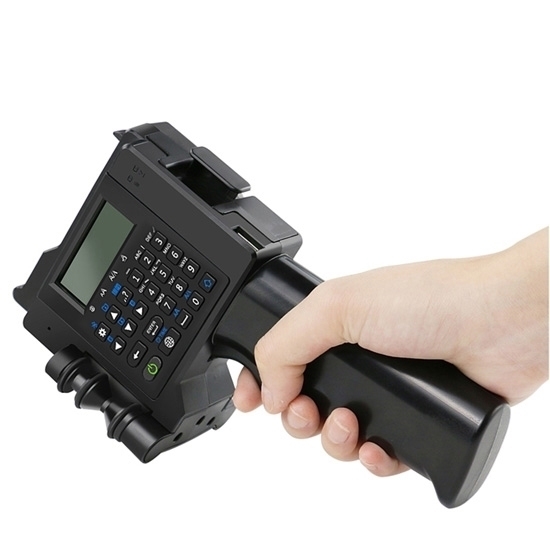

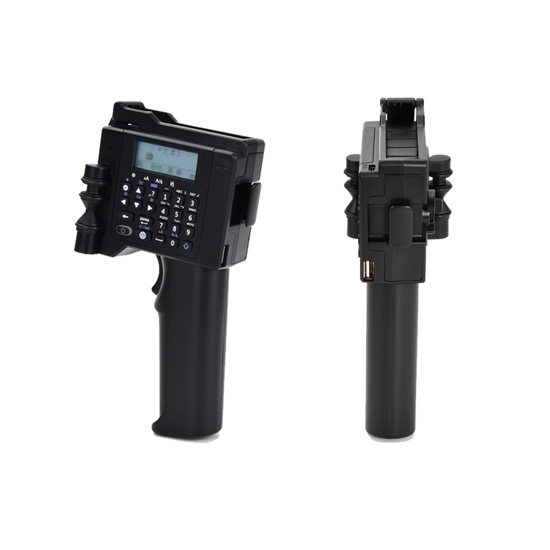

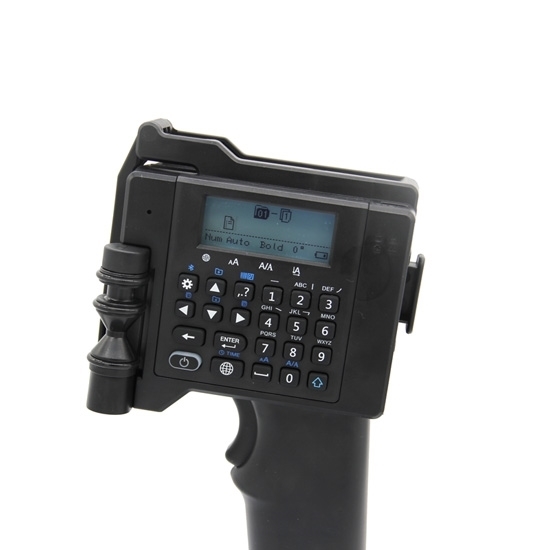

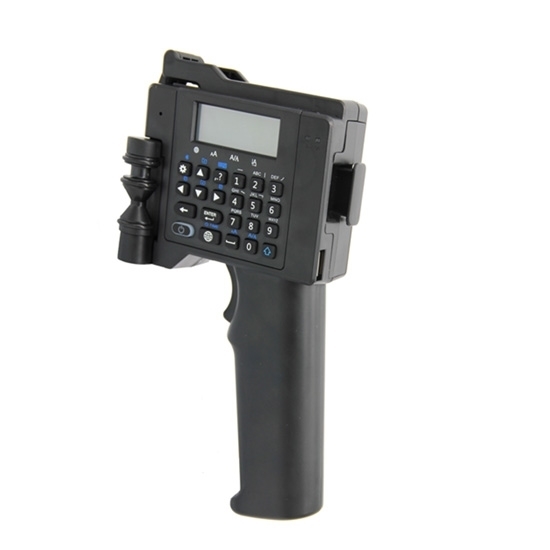

Handheld inkjet printer coding machine with keyboard control is light and portable, is suitable for printing a variety of content including Barcode, QR code, time, date, number, symbol, trademarks, graphics and so on, and supports printing on various materials like wood, box, stone, plastic, tube, metal, cloth, glass, etc. Moreover, you can control this printer by your mobile phone after Bluetooth wireless connection.

Specification

Model	RDDLZ-CP2000SE
Printing Accuracy	4 grayscales between 300DPI and 600DPI
Printing Lines	1 to 4 lines, can be adjusted
Printing Height	3-12.5mm
Printing Distance	2-5mm (the distance between the print nozzle and the object that needs printing)
Pinting Direction	360 degree
Printing Speed	The highest speed can be 50m/min (continuous printing)
Printing Graphics	The device can print almost all kinds of trademarks and graphics
Printing Code	Bar code and QR code
Support Materials	Wood, carton, stone, firber board, steel, tube, pipe, metal, plastic, aluminum foil, cables, etc.
Ink Capacity	25mL
Ink Type *	Water-based ink: black Solvent ink: black
Battery	1500mAh Lithium battery
Continuous Printing Time	More than 7 hours
System Power Consumption	≤1W
Control Panel	Keyboard
Information Storage	50
External Interface	USB port (Type-C)
Working Environment	Temperature: 0℃ ~ 40℃ Humidity: 10% ~ 80%RH
Size	209mm113.5mm75mm (LWH)
Weight	440g
Packing List	Handheld printer×1, Ink Cartridge×1, Charger×1, User Manual×1

Note:
* Solvent ink is used for printing on plastics, glass, metal, pipes, stone products, wood, fiber board, aluminum foil, cables and films, etc.
Water-based ink is suitable for printing on the hygroscopic materials such as paper and carton.

Printing Materials & Content

Tips for Using Handheld Inkjet Printer

1. Please shake the ink cartridge before use.
2. When the ink cartridge is placed separately, please cover the head of ink cartridge. Otherwise, the ink cartridge couldn’t use because of the nozzle clogging.
3. While editing the information, setting the machine or not using the printer, please cover the head of nozzle. Otherwise, the ink cartridge couldn’t use because of the nozzle clogging.
4. When you load or unload the cartridge, please make sure the inkjet printer is turned off.
5. The ink cartridge is consumable. Its expired time is 6 months. The ink cartridge is not covered under warranty.
6. The DRV mode must be Synchronizer. Settings section has been set up in advance. Please don’t change the system setting.
