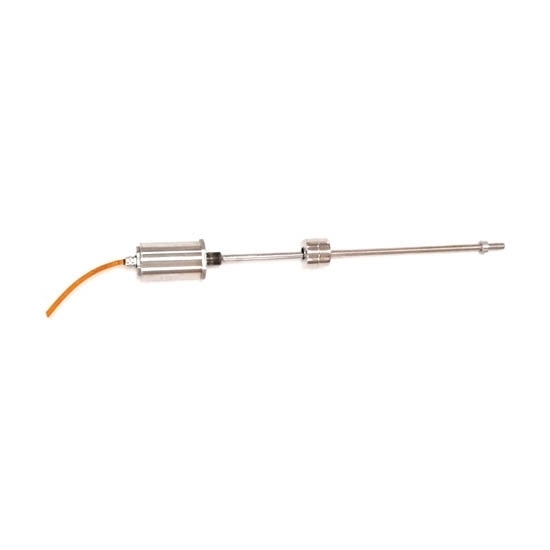

1000mm Level Sensors For Sewage Disposal System

0 reviews • Write a review

from

$979.86

Ex Tax: $979.86

Stock: In Stock
Model: RDDLZ-MSL-1000
Weight: 1.00
SKU: RDDLZ-MSL-1000

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Magnetostrictive level sensor with measuring range 1000mm is used for the liquid level preset and feedback, such as the liquid level of sewage. Magnetostrictive transducers also can be used in most industrial automation systems.

Specification:

Basics	Model	RDDLZ-MSL-1000
	Measuring range	0~1000 mm
	Shipping weight	5.5 kg
	Length	1199.3 mm
	Diameter	50 mm
Technical parameters	Linearity	≤0.03%FS
	Repeatability	≤0.003%FS
	Resolution ratio	≤0.001%FS
	Hysteresis	≤0.001%FS
	Working Voltage	24V /12V DC
	Working current	Voltage /digital output type≤16mA; Current output type≤35mA
	Output method	0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
	Product type	Normal type; Explosion-proof type; Anti-corrosion type
	Measuring rod material	0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
	Measuring rod diameter	Ф10mm
	Electronic bin material	1Cr18Ni9 (304)
		304 and PTFE casing outside (Anti-corrosion type, special custom-made)
		1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
	Connecting screw thread	M18×1.5; M20×1.5; 3/4-16UNF
	Type of lead wire	PVC shielded cable; aviation plug (not applicable to explosion-proof type)
	Measuring rod pressure	40MPa, 70MPa (Explosion-proof type)
	Temperature	T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
	Buffer area	Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
	Vibration	100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
	Protection Class	IP67
	Explosion-proof level	Explosion-proof type: EXd II BT5

Installation diagram (unit: mm):

Tips: Three module of magnetostrictive displacement sensor
Magnetostrictive sensor consists of three modules: measurement module, position detection module and circuit measurement module, in which the measurement module is composed of waveguide tube, waveguide wire, signal output terminal and front damping component. Position detection module is composed of steel ring and embedded permanent magnet block, in which the outer diameter of the steel ring can be changed according to actual requirement; Circuit measurement module is comprised of signal input interface, signal output interface, power interface and signal generation & acquisition circuit.
