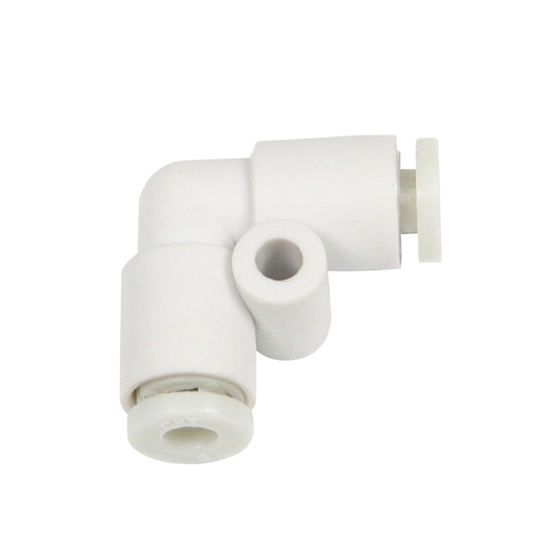

Air Hose Quick Connector, Intubation Type

0 reviews • Write a review

from

$3.27

Ex Tax: $3.27

Stock: In Stock
Model: RDDLZ-QC-I02
Weight: 1.00
SKU: RDDLZ-QC-I02

Available Options

Short Description

Input Cannula Diameter

Output Cannula/Thread Diameter (03)

Output Cannula/Thread Diameter (04)

Output Cannula/Thread Diameter (06)

Output Cannula/Thread Diameter (23)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price quick connector does not require any tools to connect or disconnect, which can save time and money. It is an intubation type. 03/04/06 mm input cannula diameters for selection. Air Hose Quick Connector is perfect for various watering devices such as nozzle, sprayers, sprinklers, etc.

Specifications

Model	RDDLZ-KJL
Fluid	Air/Water
Material	Brass
Maximum operating pressure	1.0MPa
Operating vacuum pressure	-100kPa
Proof pressure	3.0MPa
Ambient and fluid temperature	Air:-5~60°C, Water:0~40°C
Tubing material	Nylon, Soft nylon, Polyurethane
Tubing O.D.	Φ3, Φ3.2, Φ4, Φ6

Quick Connector Details

Applicable tubing O.D (mm)	Model	Weight (g)
Ø3	RDDLZ-KJL03-00	1.6
Ø3.2	RDDLZ-KJL23-00	1.7
Ø4	RDDLZ-KJL04-00	2
Ø6	RDDLZ-KJL06-00	3.1

Tips for using air quick connector

Do not use an air quick connector for purposes other than fluid.
Do not use for fluids other than the applicable fluid.
Do not exceed the maximum operating pressure when using.
Do not use outside the operating temperature range to prevent deformation of the seal material, which may easily lead to the formation of leaks.
Do not perform artificial beating, bending, or stretching to air quick connector.
Do not use in places where metal powder or sand and dust are mixed.
Attachment of debris may cause ineffective work or leakage.
Do not disassemble the quick connector.
