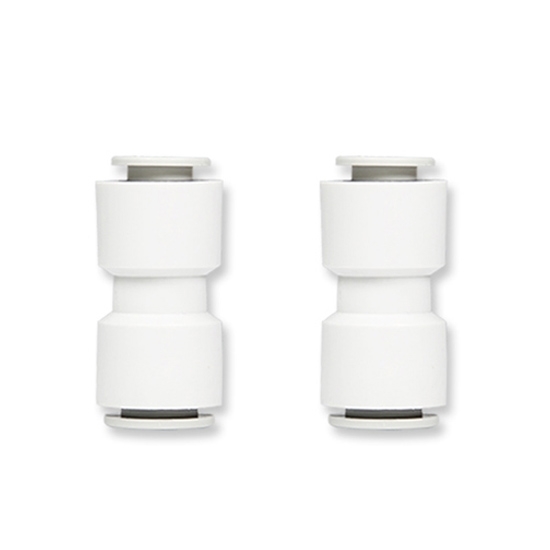

Garden Hose Quick Connector, Intubation Type

Garden Hose Quick Connector, Intubation Type
Garden Hose Quick Connector, Intubation Type
0 reviews • Write a review
from
$2.25
Ex Tax: $2.25
  • Stock: In Stock
  • Model: RDDLZ-QC-I05
  • Weight: 1.00
  • SKU: RDDLZ-QC-I05

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Get a perfect quick connector solution online. It can quickly connect to watering equipment and garden accessories. Well-made faster connectors feature 04~16 mm input cannula diameters and can connect and disconnect in seconds without tools.

Specifications

ModelRDDLZ-KQ2H
FluidAir/Water
MaterialBrass
Maximum operating pressure1.0MPa
Operating vacuum pressure-100kPa
Proof pressure3.0MPa
Ambient and fluid temperatureAir:-5~60°C, Water:0~40°C
Tubing materialNylon, Soft nylon, Polyurethane
Tubing O.D.Φ4, Φ6, Φ8, Φ10, Φ12, Φ16

Quick Connector Details

Applicable tubing O.D (mm)ModelWeight (g)
ab
Ø4RDDLZ-KQ2H04-003
Ø6RDDLZ-KQ2H06-004
Ø8RDDLZ-KQ2H08-006
Ø10RDDLZ-KQ2H10-0011
Ø12RDDLZ-KQ2H12-0014
Ø16RDDLZ-KQ2H16-0024
Ø4Ø6RDDLZ-KQ2H04-065
Ø6Ø8RDDLZ-KQ2H06-086
Ø8Ø10RDDLZ-KQ2H08-1011
Ø10Ø12RDDLZ-KQ2H10-1214
Ø12Ø16RDDLZ-KQ2H12-1647

Tips: What are the types of quick connectors?

Quick connectors are divided into air type, gas type,gas-liquid type, inert gas type, etc.

  • Air quick connectors are mainly used for quick installation of air pipelines, and connector fittings for pneumatic tools.
  • Gas quick connectors are mainly used for general fuse piping, with high flow, durability and corrosion resistance.
  • Quick connectors for gases and liquids are mainly used for piping of ion cooling devices, brewing devices, cutting oil piping of working machines, and car wash machines. It is connected by a simple lever operation and can convey liquids, gases, powders, etc.
  • The inert gas quick connector is to be used for evacuation piping and compressor pressure test. The sleeve and plug have built-in automatic switching valves suitable for vacuum use, and a vacuum of 1.3×10Pa can be maintained in the separated state.
