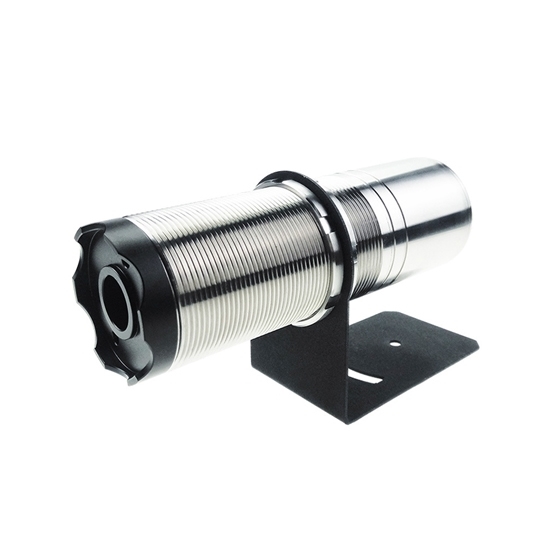

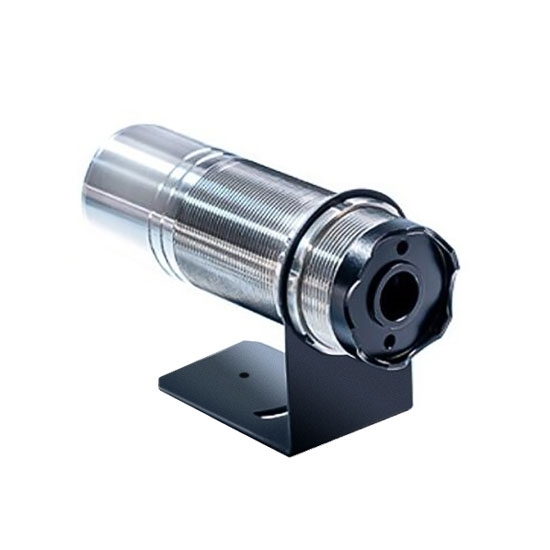

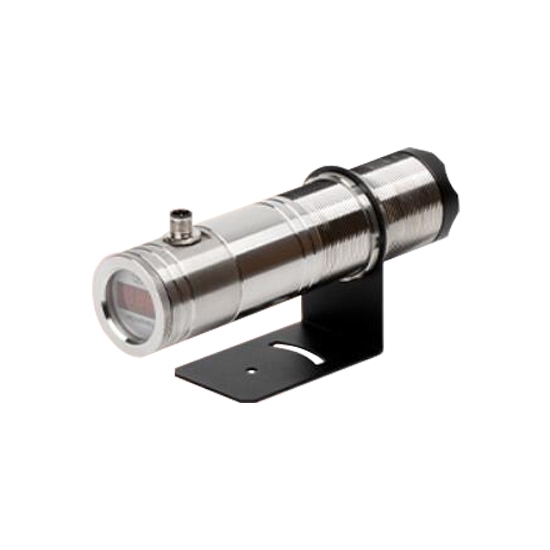

High Temperature Infrared Sensor, Non-Contact, 4-20mA Output

High Temperature Infrared Sensor, Non-Contact, 4-20mA Output
High Temperature Infrared Sensor, Non-Contact, 4-20mA Output
High Temperature Infrared Sensor, Non-Contact, 4-20mA Output
High Temperature Infrared Sensor, Non-Contact, 4-20mA Output
High Temperature Infrared Sensor, Non-Contact, 4-20mA Output
High Temperature Infrared Sensor, Non-Contact, 4-20mA Output
High Temperature Infrared Sensor, Non-Contact, 4-20mA Output
0 reviews • Write a review
from
$359.39
Ex Tax: $359.39
  • Stock: In Stock
  • Model: RDDLZ-IR-402
  • Weight: 1.00
  • SKU: RDDLZ-IR-402

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Industrial high temperature infrared sensor, non-contact with -50℃~300℃ measuring range, infrared measurement, M12 connector, millisecond response speed, can monitor temperature continuously, small in size, easy to install, suitable for temperature monitoring in steel, glass and plastic production areas.

Specification

ModelRDDLZ-BRW600-402
Measurement Range-50℃ ~ 300℃ (-58 ~ 572°F)
Measuring Distance10 ~ 30 cm
Power Supply24VDC, 50mA Max
Accuracy±2% or ±2℃
Emissivity0.95
Signal Output4–20 mA
Working Temperature50℃
Response Time500 ms
Response Wavelength8~14 μm
Maximum Current< 50 mA
Storage Temperature-20 ~ 50℃
Ambient Temperature0 ~ 50℃ (Better performance in this range)
Relative Humidity10 ~ 95%RH (No condensation)
Object Distance Ratio16:01
Protection GradeIP65
DimensionL168mm × φ50mm
Electrical ConnectionM12 Connector
Shell MaterialAluminium Alloy + Stainless Steel
Weight1 kg


Dimension & Wiring

Unit: mm

Detail

Application

Widely used in electric power equipment; modern medical field; food industry; chemical industry; construction industry; machining control field and other temperature control scenarios.

Tips for installing the non-contact infrared temperature sensor

  1. According to the measurement requirements and the measurement coefficient of the infrared temperature sensor, select the appropriate distance and orientation, and fix the infrared temperature probe and the adjustment bracket well.
  2. Adjust the measurement direction of the probe so that the measured object is roughly facing the observation site.
  3. Lock the orientation of the adjustment bracket.
