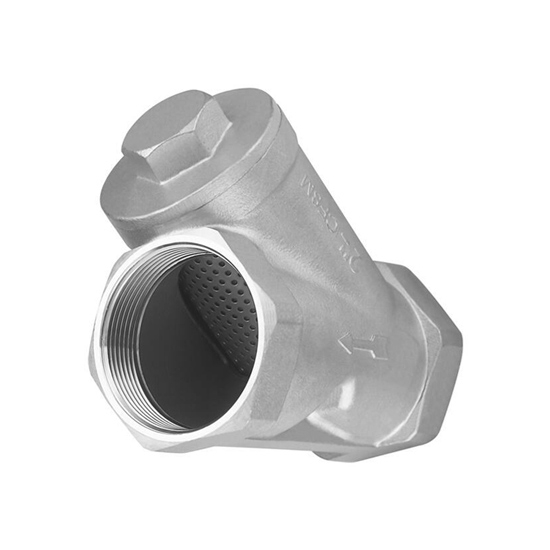

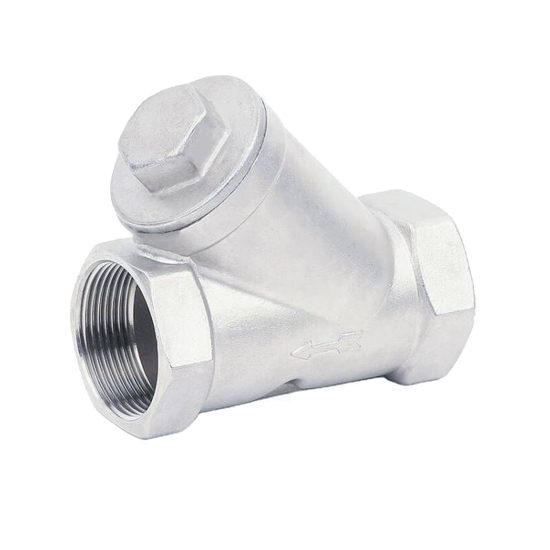

1-1/2 Inch Stainless Steel Y Strainer

0 reviews • Write a review

from

$59.26

Ex Tax: $59.26

Stock: In Stock
Model: RDDLZ-SSYS-40
Weight: 1.00
SKU: RDDLZ-SSYS-40

Available Options

Short Description

Material

Thread

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This Y type strainer cannot be used for drinking water.

The 1-1/2 inch (DN40) stainless steel Y strainer is used in piping systems to remove unwanted particles, debris, and other impurities from fluid flowing through the system. 800PSI working pressure, BSP, BSPT and NPT thread for selection, stainless steel materials can withstand high temperature and pressure.

Specifications

Model: RDDLZ-T11F-800WOG (P/R)
Type: Y Type Strainer
Nominal Diameter: 1-1/2 inch (DN40)
Working Pressure: 800PSI
Product Material: 304/316 Stainless Steel
Connection Form: Thread
Thread Standard: BSP, BSPT, NPT
Temperature Range: -20°C~180°C
Weight: 0.76kg

Dimensions (Unit: mm)

Main Part Materials
NO.	Part Name	Materials	QTY
1	BODY	CF8/CF8M	1
2	FILTER	S304/S316	1
3	JOINT GASKET	PTRE/RPTFE	1
4	CAP	CF8/CF8M	1
Dimension (Unit: mm)
DN	D	L±1.5	H
40	38	107	73

Applications

Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.

Tips: Functions of Y-Type Strainer

The primary purpose of a Y-type strainer is to protect downstream equipment and systems from damage caused by debris or particles that may be present in the fluid. By capturing and removing these contaminants, Y-type strainers help to maintain the efficiency and longevity of equipment, reduce maintenance costs, and prevent downtime.
