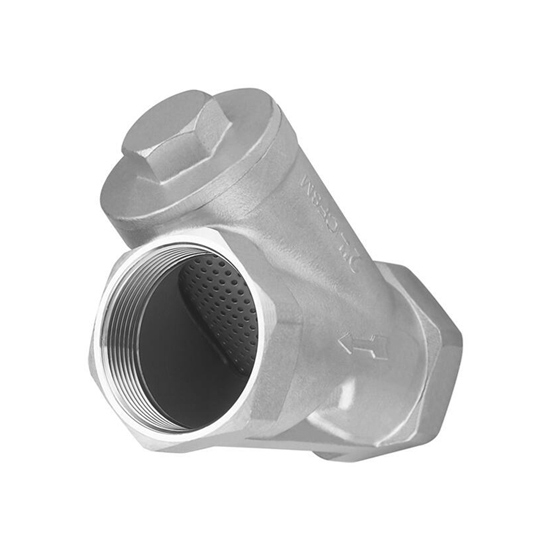

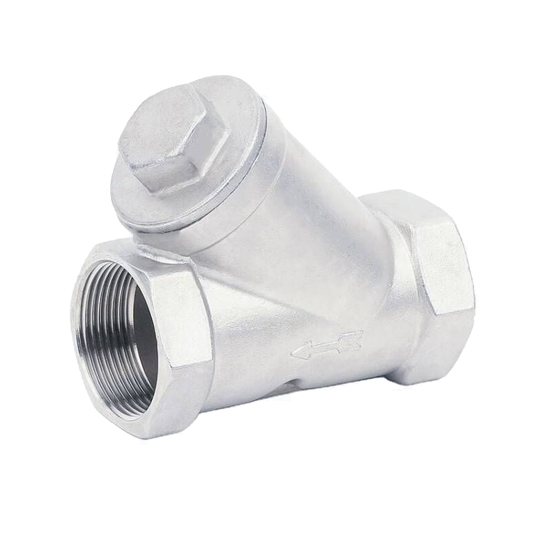

1/2 Inch Stainless Steel Y Strainer

0 reviews • Write a review

from

$46.87

Ex Tax: $46.87

Stock: In Stock
Model: RDDLZ-SSYS-15
Weight: 1.00
SKU: RDDLZ-SSYS-15

Available Options

Short Description

Material

Thread

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low price 1/2 inch (DN15) stainless steel Y strainer comes with 800PSI working pressure, SS 304/316 material, and BSP, BSPT, NPT for selection. Y type strainer is widely used in water plants, papermaking, metallurgy, chemical, petroleum, construction, wind power, construction and other pipeline projects.

Specifications

Model: RDDLZ-T11F-800WOG (P/R)
Type: Y Type Strainer
Nominal Diameter: 1/2 inch (DN15)
Working Pressure: 800PSI
Product Material: 304/316 Stainless Steel
Connection Form: Thread
Thread Standard: BSP, BSPT, NPT
Temperature Range: -20°C~180°C
Weight: 0.15kg

Dimensions (Unit: mm)

Main Part Materials
NO.	Part Name	Materials	QTY
1	BODY	CF8/CF8M	1
2	FILTER	S304/S316	1
3	JOINT GASKET	PTRE/RPTFE	1
4	CAP	CF8/CF8M	1
Dimension (Unit: mm)
DN	D	L±1.5	H
15	15	59	39

Applications

Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.

Tips: Types of Strainer

Y-Type Strainer: As mentioned earlier, a Y-type strainer has a Y-shaped body and is designed to remove solid particles from fluid or gas pipelines.
Basket Strainer: A basket strainer has a cylindrical body and a removable basket-like strainer element that can be easily cleaned or replaced. It is used in applications where large volumes of fluid need to be filtered.
Duplex Strainer: A duplex strainer consists of two basket strainers that can be used alternatively to ensure continuous filtration. When one basket is being cleaned or replaced, the other is still in use.
Tee Strainer: A tee strainer is designed to remove impurities from fluids flowing in pipelines. It has a T-shaped body and a removable strainer element.
Inline Strainer: An inline strainer is installed directly in the pipeline and filters fluid or gas as it flows through. It is designed for low-volume applications.
Cone Strainer: A cone strainer has a conical shape and is used in applications where larger particles need to be removed from fluids.
Magnetic Strainer: A magnetic strainer uses a magnetic field to remove metallic impurities from fluids or gases.
