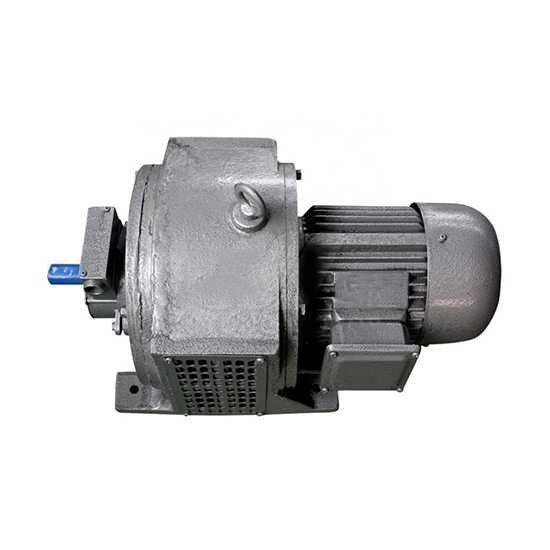

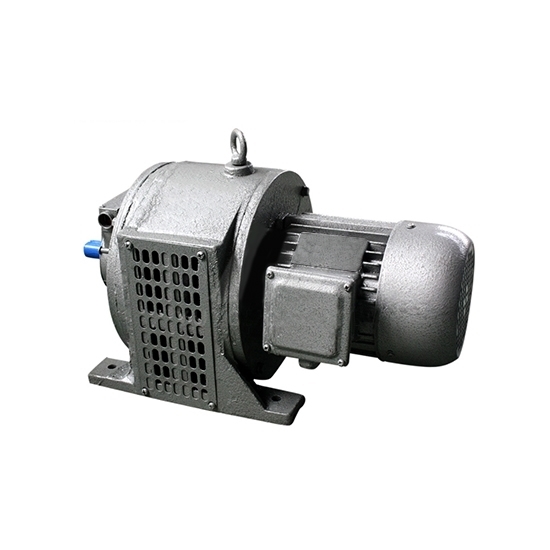

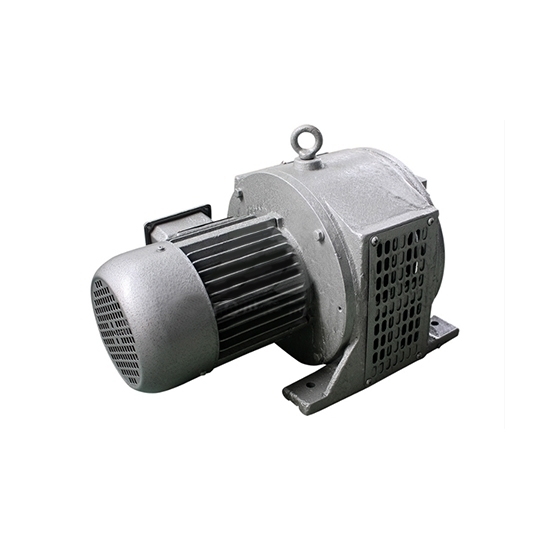

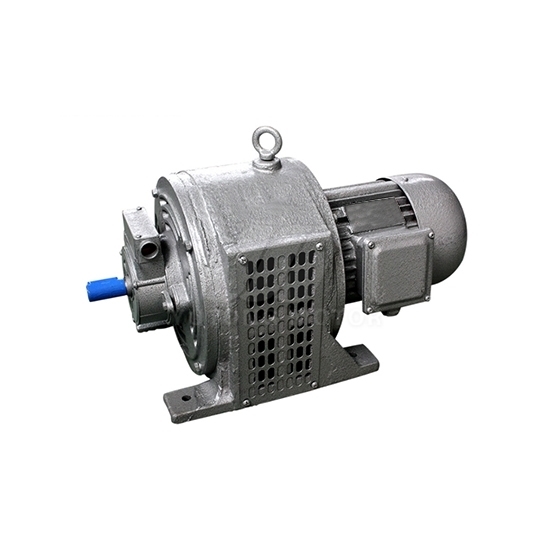

500W 3-Phase Asynchronous Motor With Clutch

0 reviews • Write a review

from

$1,085.71

Ex Tax: $1,085.71

Stock: In Stock
Model: RDDLZ-AMWC-500W
Weight: 1.00
SKU: RDDLZ-AMWC-500W

Available Options

With Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

500 watt 3-phase asynchronous electric motor is widely used in textile, chemical, metallurgy, building materials, food mining, paper making, plastic and other industries. Factory price and manufacturer direct sale.

500W Asynchronous Motor Specification

Model	RDDLZ-YCT112-4A
Capacity	500W
Rated Torque	3.6Nm
Speed Adjustable Range	1250-125r/min
Speed Changing Rate	3%
Output Power	500W
Rated Voltage	380V
Installation	B3
Frequency	50Hz
Phase	3 phase
Certification	CE, CCC, IS9001, IS2008
IP Grade	IP21
Efficiency	IE1/IE2/IE3
Frame	Cast Iron or aluminum
Weight	55kg
Ambient temperature	-15℃~40℃
Altitude	not exceeding 1000 Meters
Duty	Continuous running
Insulation Grade	B
Warranty	1 year

500W 3-phase Asynchronous Motor Dimensions

Model	YCT112-4A
Mounting Dimension & Tolerance (mm)	A	Basic Size	190
	A/2	Basic Size	95
	WB	Basic Size	210
	WC	Basic Size	40
	WC	Limit Size	±1.5
	D	Basic Size	19
	D	Limit Tolerance	+0.009 -0.004
	E	Basic Size	40
	E	Limit Tolerance	±0.31
	F	Basic Size	6
	F	Limit Tolerance	0
	G	Basic Size	15.5
	G	Limit Tolerance	0
	H	Basic Size	112
	H	Limit Tolerance	0
	K	Basic Size	12
		Limit Tolerance	±0.43
		Position Tolerance	Φ 1.0 Ⓜ
Mounting Dimension & Tolerance (mm)	AB	240
	AC	260
	AD	150
	HD	280
	L	490

Details

Tips: What is an Asynchronous Motor with Clutch?

Asynchronous motor with clutch is a kind of AC constant torque induction speed control motor, which consists of drag motor (three-phase asynchronous motor), electromagnetic differential clutch, speed measuring generator and controller. Its speed regulation features are large speed range, no runaway zone, large starting torque, and strong excitation starting. Three-phase asynchronous motor with clutch is a kind of AC constant torque induction speed control motor, which consists of drag motor (three-phase asynchronous motor), electromagnetic differential clutch, speed measuring generator and controller. Its speed regulation features are large speed range, no runaway zone, large starting torque, and strong excitation starting. It has no impact on the power grid when starting frequently and has high accuracy of speed stabilization.

YCT series asynchronous motors with clutch are suitable for machinery and equipment in textile, chemical, metallurgy, building materials, food, mining, paper, plastic and other industries, which require precise control of running speed. It is more suitable for variable torque centrifugal water pump and phoenix machine load, with speed regulation to replace the opening and closing of the door, in order to control the flow and pressure, to achieve better energy-saving effect.
