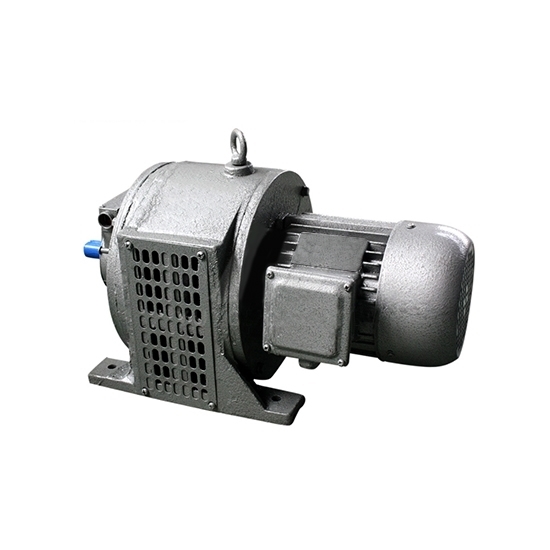

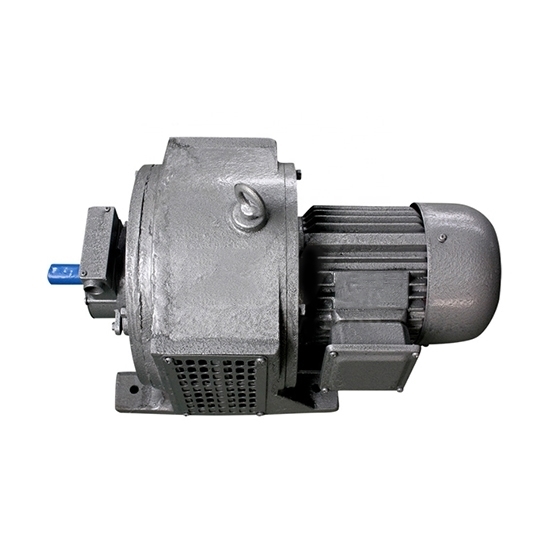

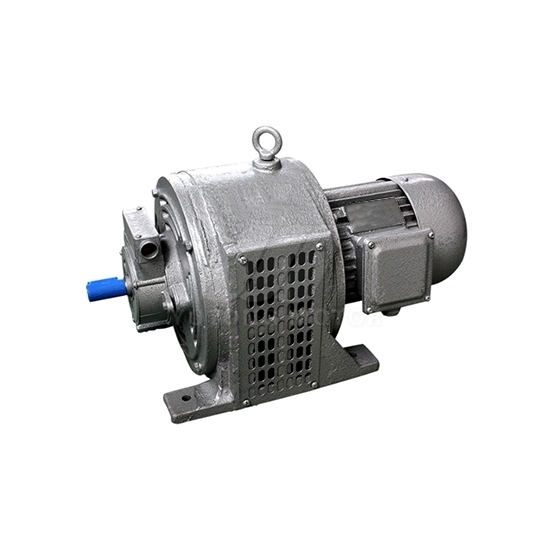

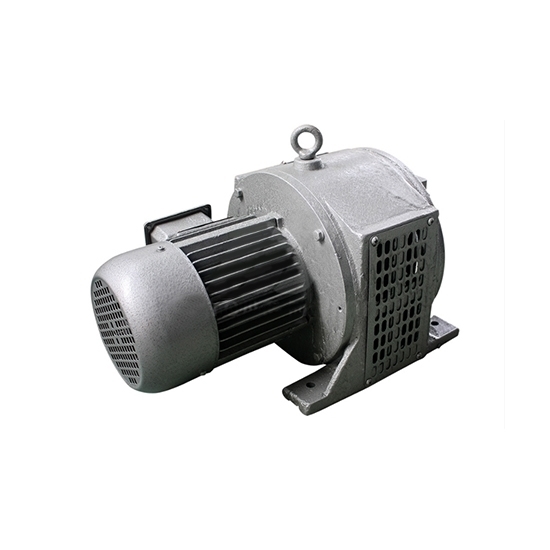

1hp (750W) 3-Phase Asynchronous Motor With Clutch

0 reviews • Write a review

from

$1,097.53

Ex Tax: $1,097.53

Stock: In Stock
Model: RDDLZ-AMWC-750W
Weight: 1.00
SKU: RDDLZ-AMWC-750W

Available Options

With Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1 hp (750W) 3-phase asynchronous motor with clutch features 1250rpm of rated speed, rated torque 4.9Nm It can widely used in textile, chemical, metallurgy, building materials, food mining, paper making, plastic and other industries.

1hp (750W) Asynchronous Motor Specification

Model	RDDLZ-YCT112-4B
Capacity	1hp (750W)
Rated Torque	4.9Nm
Speed Adjustable Range	1250-125r/min
Speed Changing Rate	3%
Rated Voltage	380V
Installation	B3
Frequency	50Hz
Phase	3 phase
Certification	CE, CCC, IS9001, IS2008
IP Grade	IP21
Efficiency	IE1/IE2/IE3
Frame	Cast Iron or aluminum
Weight	55kg
Ambient temperature	-15℃~40℃
Altitude	not exceeding 1000 Meters
Duty	Continuous running
Insulation Grade	B
Warranty	1 year
Cooling Method	IC411

1hp (750W) 3-phase Asynchronous Motor Dimensions

Model	YCT112-4B
Mounting Dimension & Tolerance (mm)	A	Basic Size	190
	A/2	Basic Size	95
	WB	Basic Size	210
	WC	Basic Size	40
	WC	Limit Size	±1.5
	D	Basic Size	24
	D	Limit Tolerance	+0.009 -0.004
	E	Basic Size	40
	E	Limit Tolerance	±0.31
	F	Basic Size	6
	F	Limit Tolerance	-0.030
	G	Basic Size	15.5
	G	Limit Tolerance	-0.1
	H	Basic Size	112
	H	Limit Tolerance	0
	K	Basic Size	12
		Limit Tolerance	±0.43
		Position Tolerance	Φ 1.0 Ⓜ
Mounting Dimension & Tolerance (mm)	AB	240
	AC	260
	AD	150
	HD	280
	L	490

Details

Tips: The Features of 1hp (750W) 3-Phase Asynchronous Motor with Clutch.

High speed rotation of over 10,00r/min is easily achieved.
High operating efficiency at high speed and low torque.
High torque at low speed, and wide speed control range.
High reliability (robustness).
Low manufacturing cost.
Simplicity of control devices.
