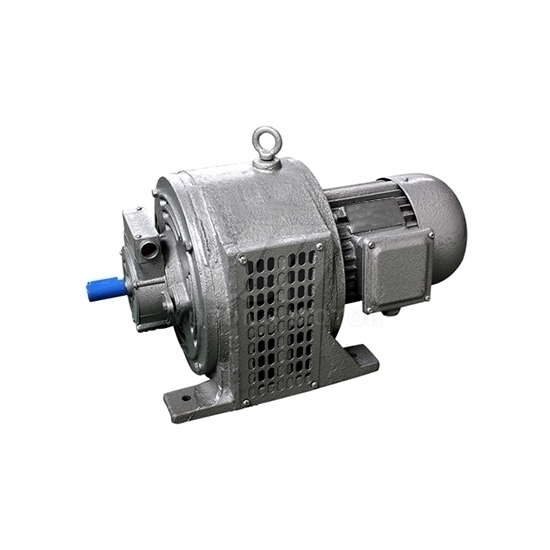

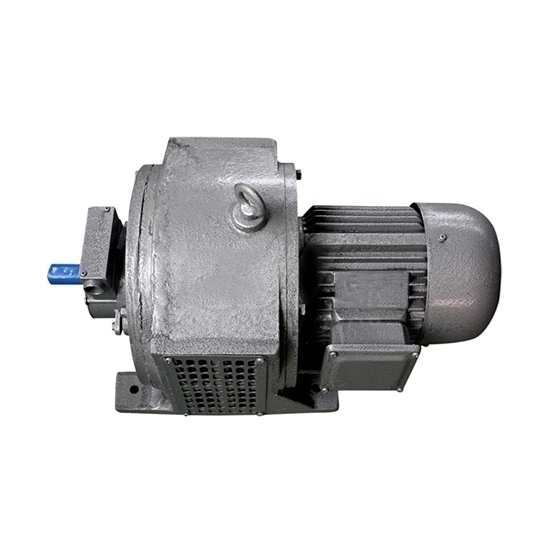

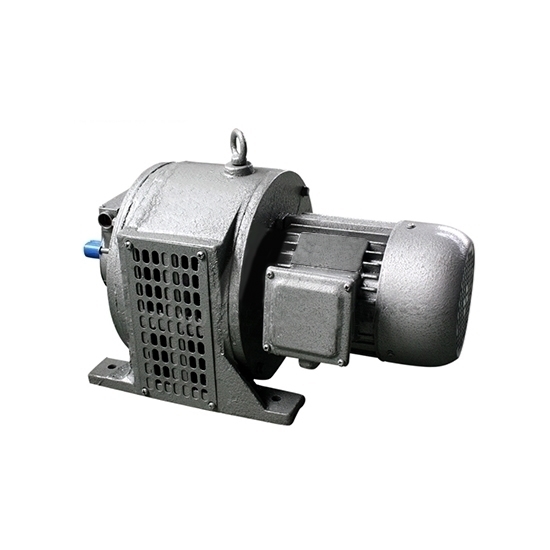

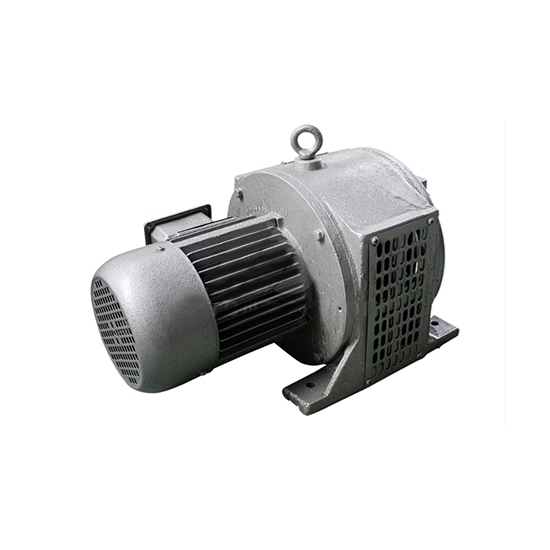

15hp (11kW) 3-Phase Asynchronous Motor With Clutch

Free Shipping

15hp (11kW) 3-Phase Asynchronous Motor With Clutch

0 reviews • Write a review

from

$7,893.71

Ex Tax: $7,893.71

Stock: In Stock
Model: RDDLZ-AMWC-11000W
Weight: 1.00
SKU: RDDLZ-AMWC-11000W

Available Options

With Controller

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

15hp/11kW synchronous motor with clutch at affordable price, running at 380V 50Hz, IP grade IP21, the altitude is less than 1000m and ambienttemperature is -15℃-+40℃.

15hp (11kW) 3 Phase Asynchronous Motor with Clutch Specification

Model	RDDLZ-YCT225-4A
Capacity	11kW
Rated Torque	69.1Nm
Speed adjustable Range	1250-125r/min
Speed Changing Rate	3%
Rated Voltage	380V
Installation	B3
Frequency	50Hz
Phase	3 phase
Certification	CE, CCC, IS9001, IS2008
IP Grade	IP21
Efficiency	IE1/IE2/IE3
Frame	Cast Iron or aluminum
Weight	420kg
Ambient temperature	-15℃~40℃
Altitude	not exceeding 1000 Meters
Duty	Continuous running
Insulation Grade	B
Warranty	1 year

15hp (11kW) 3 Phase Asynchronous Motor with Clutch Dimensions

Details

Tips: How to Check and Maintain the 15hp (11kW) 3-Phase Asynchronous Motor with Clutch？

A. The motor cannot rotate after power is applied, but there is no strange sound, no smell and smoke.
1. Cause of failure
① power is not on (at least two phases are not on).
②Fuse fused (at least two phases fused).
③ overcurrent relay is set too small.
④ control equipment wiring errors.
2. Troubleshooting
① check the power circuit switch, fuse, junction box at whether there are broken points, repair.
② Check the fuse type, the reason for fusing, and change the new fuse.
③Adjust the relay adjustment value to match the motor.
④ Correct the wiring.
B. The motor no-load current is not balanced, the three-phase phase difference is large
1、Cause of failure
①When rewinding, the number of turns of stator three-phase winding is not equal.
② Wrong winding head and tail end connection.
(iii) unbalanced power supply voltage.
④There is a short circuit between turns of the winding, coil reversal and other faults.
2. Troubleshooting
① re-wind the sub-winding.
②Check and correct.
③ Measure the power supply voltage and try to eliminate the imbalance.
④Clear the winding fault.
