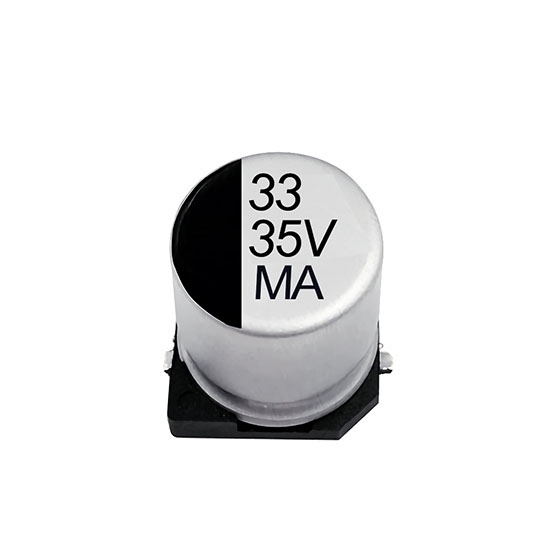

33μF 35V SMD Electrolytic Capacitor

0 reviews • Write a review

from

$1.15

Ex Tax: $1.15

Stock: In Stock
Model: RDDLZ-EC-HV330M035
Weight: 1.00
SKU: RDDLZ-EC-HV330M035

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Get a SMD electrolytic capacitor at reasonable price. Surface mount electrolytic capacitor featuring 33μF capacity, 1000h shelf life, -55~105℃ operating temperature.

Features

Endurance: 105℃ - 2000 hours
Low ESR and high ripple current
Vibration-proof (vP) version (up to 30g) available upon request
AEC-Q200 version available
High voltage, automotive 105°C type

Specification

Model		RDDLZ-EC-HV330M035
Capacity		33㎌
Rated voltage		35V
Size		6.3*5.5mm
Installation type		Surface mount
Operating temperature		-55~105℃
Cap. tolerance (∆C)		±20% (120Hz 20℃)
Dissipation factor (tanδ)		14%
Low temperature characteristic at 120Hz (Z ratio max.)		3 (Z-25℃/Z+20℃)
Leakage current (L_leak)		≤0.01CRV_Ror 3 ㎂ * after 2 minutes
Enduarance (105℃)	Test	2000h
	∆C	≤20% of initial measured value
	tanδ	≤200% of specified measured value
	L_leak	≤ the specified measured value
Shelf life (105℃)	Test	1000h
	∆C	≤20% of initial measured value
	tanδ	≤200% of specified measured value
	L_leak	≤ the specified measured value
Resistance to soldering heat (105℃)	∆C	Within ±10% of initial value
	tanδ	Less than specified value
	L_leak	Less than specified value

Dimension (mm)

Model	Dimension (mm)
RDDLZ-EC-HV330M035	∅D	6.3
	L	5.5
	a	0.2
	A	6.6
	B	6.6
	C	7.2
	W	0.5~0.8
	P±2	2.2

Tips: Reflow Soldering Conditions of SMD Electrolytic Capacitor.

Reflow soldering is suitable for SMD aluminum electrolytic capacitors. Reflow Soldering Conditions:

Infrared or hot air reflow soldering should be used instead of vapor phase heating reflow soldering.
The number of reflow soldering is up to 2 times, please ensure that the product has sufficient cooling time between the first and second times.
The preheating time from 150C to 200C is within 180 seconds: the soldering time of the capacitor top temperature exceeding 217C shall not exceed tL (seconds); the peak temperature of the capacitor top shall not be better than TP (C), the actual peak value in the range of 5C temperature time must not exceed tp (seconds).
The average temperature rise is at most 3C per second.
Temperature drop averages up to 6C per second.
Up to 8 minutes from 25C to peak temperature.
