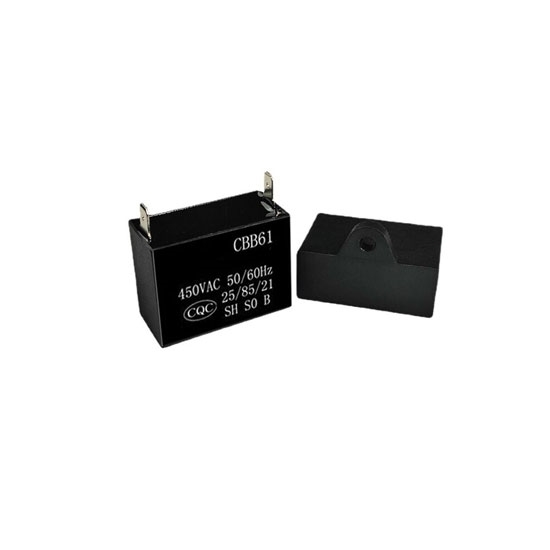

12μF 450V Ceiling Fan Capacitor

0 reviews • Write a review

from

$4.68

Ex Tax: $4.68

Stock: In Stock
Model: RDDLZ-FC-CBB61-120
Weight: 1.00
SKU: RDDLZ-FC-CBB61-120

Available Options

Short Description

Type

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Purchase the ceiling fan capacitors at lowest price, capacity value 20 μF, model CBB61, double lead length color can be customized, fan capacitor shell made of environmentally friendly materials, good sealing, high temperature resistance, explosion-proof.

Specification

Model: RDDLZ-FC-CBB61-120
Capacity: 12μF
Rated Voltage: 450V
Tolerance: ±5%
Withstand Voltage: 2. 0 Un (2s)
Loss: (DF)≤0.0010 100Hz
Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
Rated Frequency: 50/60Hz
Climate Category: 40/105/21
Scope of Application: Start, run
Appearance: Rectangular
Lead Out Method: Cord, pin, insert
Dielectric Material: Organic thin film
Dimension: 48(W) x 28(L) x 40(H)mm
Certificate: CE, CQC

12μF Ceiling Fan Capacitor Wiring Diagram

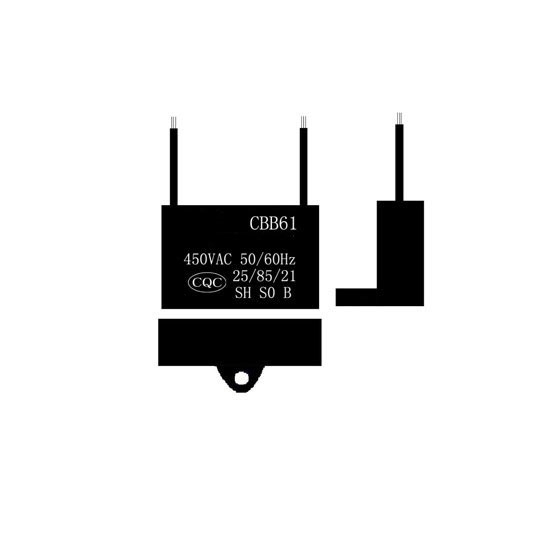

Ceiling Fan Capacitor Details

Tips: Characteristics of non-polarity capacitors

Non-polarized capacitors can be used in pure AC circuits and are mainly used for high frequency filtering because their capacitance is generally small. Typical capacitance value 0.1uF, 0.01uF, etc. are commonly used. The above value of non-polarized capacitor is often placed at the chip power supply to eliminate high frequency interference.
