- Stock: In Stock
- Model: RDDLZ-WT-DS
- Weight: 1.00
- SKU: RDDLZ-WT-DS
Available Options
Note: This small water turbine electric generator cannot be used for drinking water.

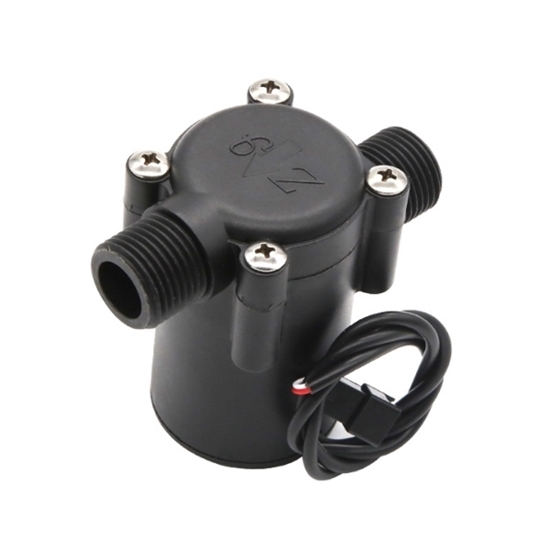

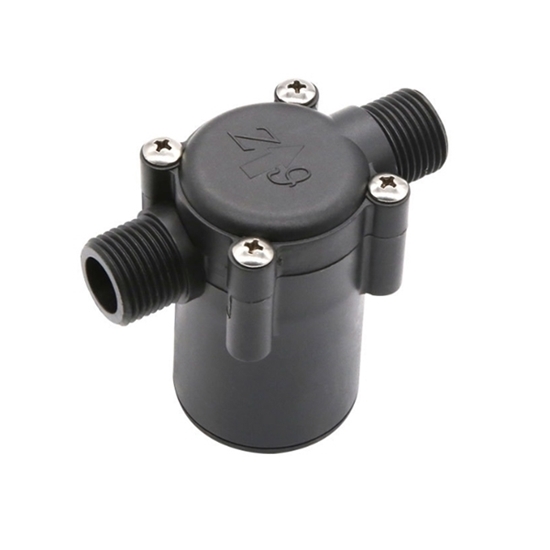

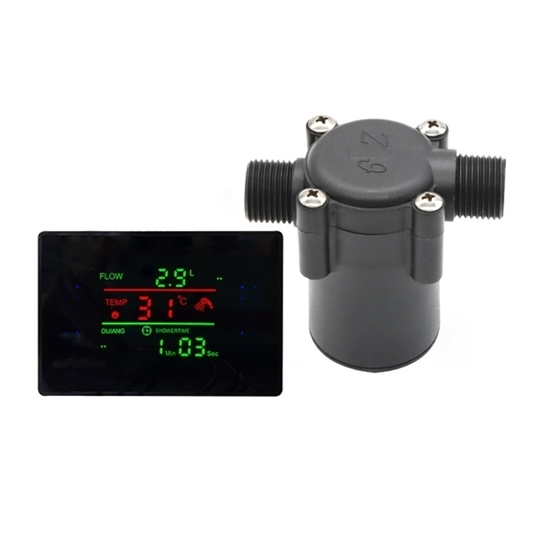

Micro hydro generator with a display is built from safe materials for long service life. The screen shows real-time flow, temperature, and usage time, making it ideal for bathrooms, faucets, and induction sanitary ware. With strong sealing and easy installation, water turbine generator provides stable and sustainable power for small-scale applications.
Specification
Model | RDDLZ-HY-3683 |
Inner Diameter | 12 mm |
Outer Diameter | 20 mm |
Thread Length | 15.5 mm |
Interface Size | 1/2" (G1/2) |
Max Working Pressure | 1.75 MPa |
Test Pressure | 1.2 MPa |
Flow Range | 2.0 ~ 15 L/min |
Max Output | 21.2V ±2V AC (6 L/min Flow) |
Output Voltage | 4.7 ~ 21V ±0.3V AC |
Temperature Range | 0°C ~ 120°C |
Precautions | 1. Avoid strong impacts and exposure to corrosive chemicals. |
Features
- Leak-Proof Construction: Features hermetic sealing design for hydroelectric power generator that effectively blocks water ingress.
- Abrasion-Resistant Material: Engineered with robust components specifically to ensure extended service life.
- ECO-Friendly Compliance: Meets international ROHS standards, eliminating hazardous substances.
- Real-Time Performance Monitoring: Provides instant readouts of flow rate and temperature for portable hydropower turbine operation.
- Compact Design: Space-optimized format enables straightforward integration into residential piping systems.
- Precision Sensing Technology: High-accuracy detection mechanism delivers reliable performance data and operational efficiency.
- Gentle Handling Requirement: Essential maintenance protocol for small water turbine generator to preserve system integrity.
Dimension (Unit: mm)
Details
Performance Characteristics
Application
Tips: What makes the water turbine electric generator with display screen different?
The portable water turbine generator with display screen differs from traditional models by integrating a display that shows real-time data such as voltage, current, power, and water flow. Unlike ordinary generators that only output electricity, this feature of RDDLZ hydroelectric power generator allows users to monitor performance and efficiency directly. It is more convenient and intelligent, making it ideal for homes, teaching, research, and outdoor use while offering both clean energy and easier operation.
