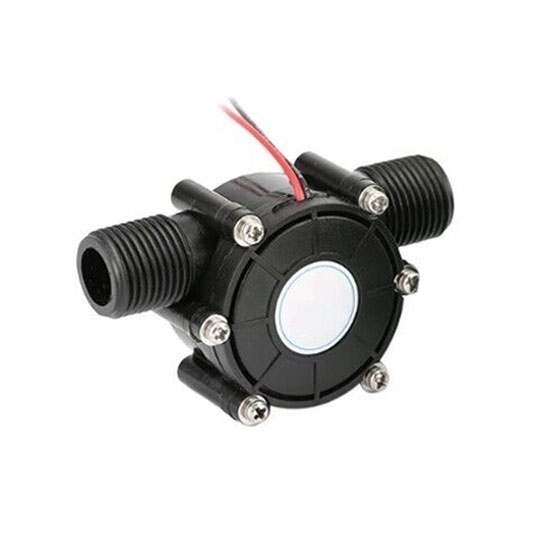

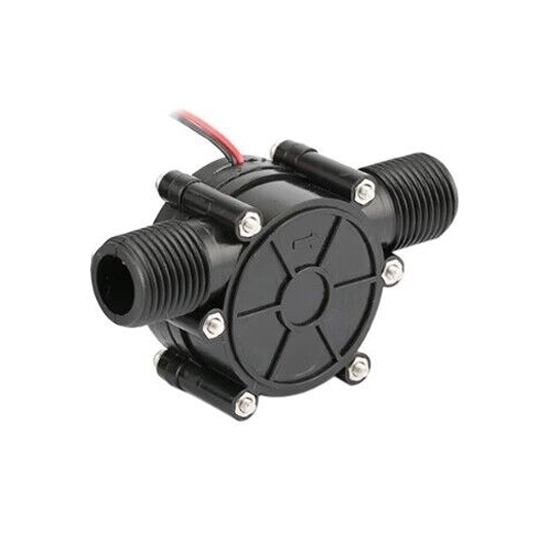

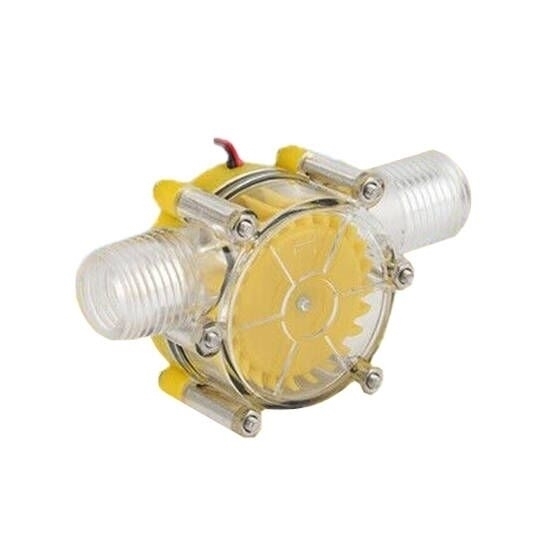

20V AC Micro Water Turbine Generator

0 reviews • Write a review

from

$27.86

Ex Tax: $27.86

Stock: In Stock
Model: RDDLZ-MWT-20
Weight: 1.00
SKU: RDDLZ-MWT-20

Available Options

Color

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This 20V AC micro water turbine generator cannot be used for drinking water.

Low cost hydroelectric power generator for sale, three-phase brushless AC generator with output voltage AC 0-20V, output current 0-150MA, perfect for converting water energy into electricity. This small water turbine generator comes without a voltage regulator and the output voltage is proportional to the water pressure.

Specification

Model	RDDLZ-MWT-AC20
Output Voltage	AC 0-20V
Output Current	0-150 mA
Flow Range	3-18L per minute
Pressure Range	0.15-0.8 mPA
Inter-Wire Resistance	10.5±0.5 Ω
Insulation Resistance	10 MΩ (DC100 megohm meter)
Peak Withstand Pressure at Closed Outlet	0.6 Mpa
Open Outlet Peak Withstand Pressure	1.2 Mpa
Starting Water Pressure	0.05 Mpa
Axial Clearance	0.2-1.0 mm
Mechanical Noise	≤55 dB
Generator Weight	About 90 g
Generator Life	≥3000 h
Output Characteristics	Output voltage without a voltage regulator is proportional to the water pressure
Installation	Installed in the direction of the arrow, standard household plumbing 4-pipe
External Diameter	20 mm
Inner Diameter	13 mm

Dimension (Unit: mm)

Hydraulic/voltage diagram

Water pressure/ velocity diagram

Applications

Water turbines are commonly used in various applications where hydroelectric power can be harnessed from moving water sources. Water turbines are also used in smaller scale applications such as irrigation systems, rural electrification, and in off-grid communities where hydroelectric power is a reliable and sustainable source of energy.

Tips: What is the maximum power output that can be generated by a water turbine generator?

The maximum power output that can be generated by a water turbine generator depends on several factors such as the flow rate of water, the head (the difference in height between the water source and the turbine), the efficiency of the turbine and generator, and the size of the turbine.

For example, a large hydroelectric power plant can generate several hundred megawatts (MW) of power, while a smaller run-of-river hydroelectric plant might generate only a few kilowatts (kW) of power. Similarly, the power output of a water turbine generator used for small-scale hydropower systems, such as those used in homes or farms, may range from a few watts to a few kilowatts.

It's worth noting that the power output of a water turbine generator can vary depending on the water flow rate and head, which can fluctuate depending on factors such as the time of year and weather conditions. Therefore, it's important to carefully consider the specific site conditions and potential power output when designing a water turbine generator system.
