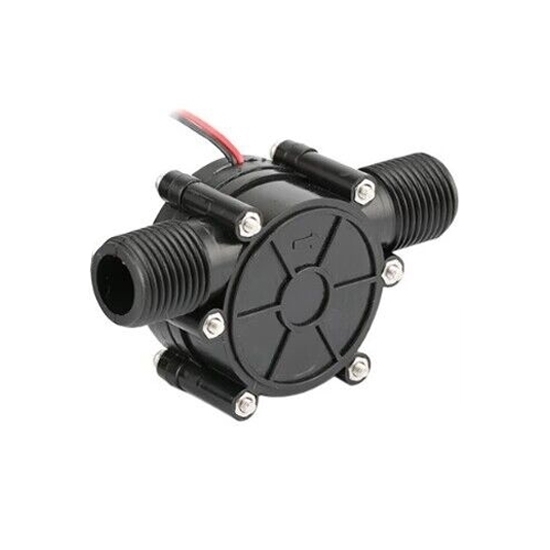

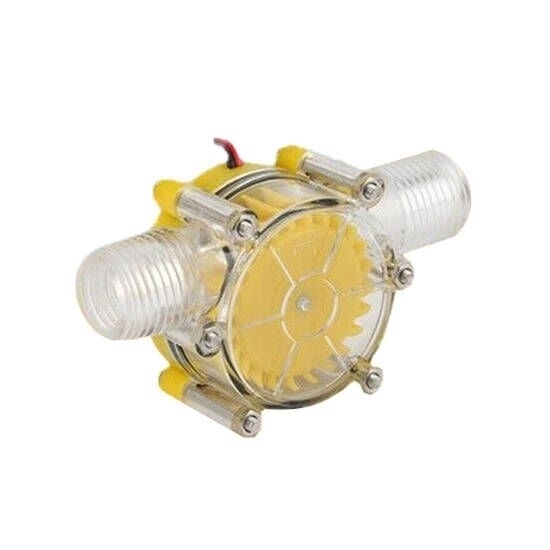

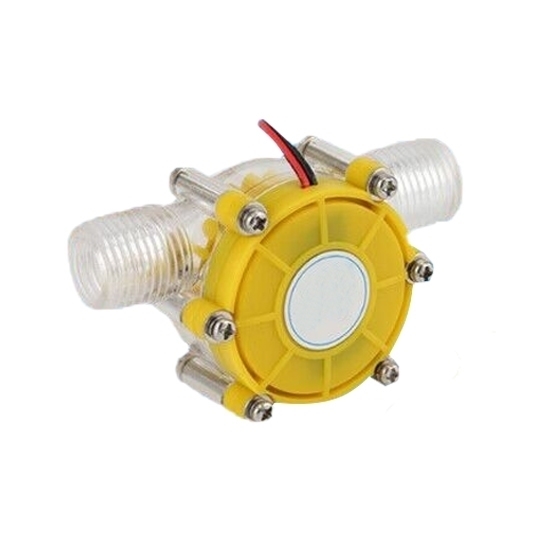

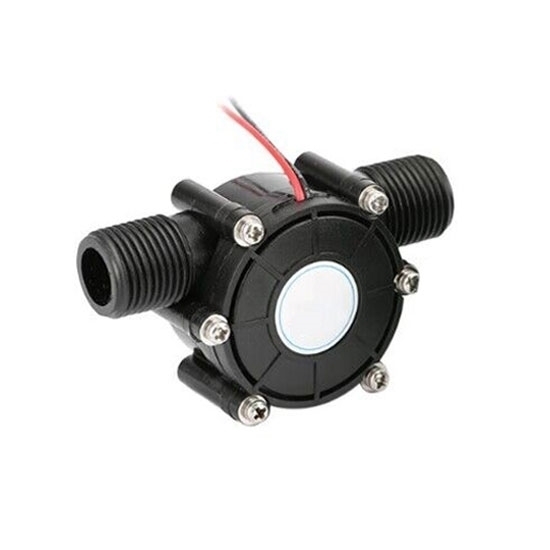

12V DC Micro Water Turbine Generator

0 reviews • Write a review

from

$28.76

Ex Tax: $28.76

Stock: In Stock
Model: RDDLZ-WT-12
Weight: 1.00
SKU: RDDLZ-WT-12

Available Options

Color

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This 12V DC micro water turbine generator cannot be used for drinking water.

The 12V DC micro water turbine features a non-reluctive energy efficient generator and water and electricity separation technology, it has a clean surface area with no scratches or rust and offers extended availability. RDDLZ micro water turbine has a low environmental impact, high efficiency and long life, making it the perfect choice for anyone looking to reduce their carbon footprint and generate clean, renewable energy.

Specification

Model	RDDLZ-F50-12V
Peak Output Voltage	DC 12V regulated output
Inter-Wire Resistance	10.5±0.5 Ω
Insulation Resistance	10 MΩ (DC100 megohm meter)
Peak Withstand Pressure at Closed Outlet	0.6 Mpa
Open Outlet Peak Withstand Pressure	1.2 Mpa
Starting Water Pressure	0.05 Mpa
Axial Clearance	0.2-1.0 mm
Mechanical Noise	≤55 dB
Generator Weight	About 90 g
Generator Life	≥3000 h
Installation	Installed in the direction of the arrow, standard household plumbing 4-pipe
External Diameter	20 mm
Inner Diameter	13 mm

Dimension (Unit: mm)

Hydraulic/voltage diagram

Water pressure/ velocity diagram

Applications

Water turbines are commonly used in various applications where hydroelectric power can be harnessed from moving water sources. Water turbines are also used in smaller scale applications such as irrigation systems, rural electrification, and in off-grid communities where hydroelectric power is a reliable and sustainable source of energy.

Tips: Can a water turbine power a house?

Yes, it is possible for a water turbine to generate enough electricity to power a house. A water turbine works by converting the energy of flowing water into mechanical energy, which is then converted into electricity through a generator.

In order to generate enough electricity to power a house, the water turbine must be connected to a generator that can produce enough power to meet the household's energy needs. The amount of electricity that can be generated by a water turbine will depend on a number of factors, including the size and flow rate of the water source, the size and efficiency of the turbine, and the efficiency of the generator.

In general, a small water turbine with a flow rate of 10 gallons per minute (GPM) can produce around 1000 kilowatt-hours (kWh) of electricity per year, which is enough to power a typical American household for about a month. However, larger turbines with higher flow rates can produce much more electricity and can potentially power an entire house.
