Two Diaphragms Coupling, 8mm To 16mm

0 reviews • Write a review

from

$146.98

Ex Tax: $146.98

Stock: In Stock
Model: RDDLZ-SC-GLM3950
Weight: 1.00
SKU: RDDLZ-SC-GLM3950

Available Options

Short Description

φd1 Inner Diameter Size (mm)

φd2 Inner Diameter Size (mm)

WIth Keyway

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

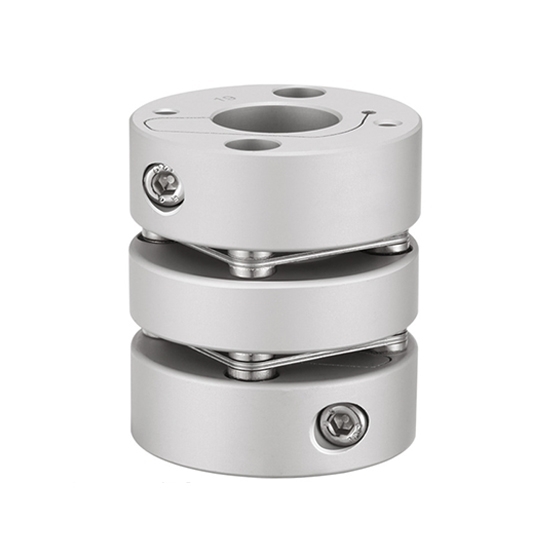

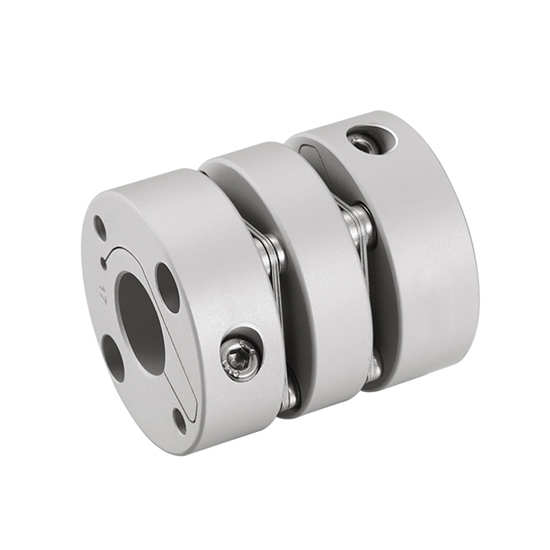

Two diaphragms coupling bore 8mm to 16mm, rated torque 10 N.m, internal clamping, easy installation. Shaft sleeve made of high-strength aluminum alloy, high torque, can accurately control shaft rotation.

Specification

Model	RDDLZ-SC-GLM3950
Length	50mm
Width	39mm
Bore	8mm to 16mm
Rated Torque	10 N.m
Allow Eccentricity	0.22mm
Allowable Deflection Angle	1.5∠°
Allowable Axial Deviation	±0.45
Allowable Speed	10000 RPM
Static Torsional Stiffness	4050N.m/rad
Moment of Inertia	3.0 x 10^-5
Weight	125g
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

Bore 8mm to 16mm Diaphragm Coupling Dimension (unit: mm)

d1/d2 Inner Diameter Size	Φd	L	LF	LP	S	φd3	F	M	Tightening Torque
8-9-9.52-10-11-12-12.7-14-15-16	39	50	14.9	11.2	4.5	17.5	6.0	M4	3.5 N.m

Details

Keyway

Shaft Diameter	Keyway Standard Machining Dimensions				Keyway Size
d1/d2	b		t		(bXh)
d1/d2	Width of groove	Tolerance	Depth of groove	Tolerance	(bXh)
φ6~φ7.9	2	±0.0125	1	±0.10	2x2
φ8~φ10	3	±0.0125	1.4		3x3
φ10.1~φ12	4	±0.0150	1.8		4x4
φ12.1~φ17	5		2.3		5x5
φ17.1~φ22	6		2.8		6x6
φ22.1~φ30	8	±0.0180	3.3	±0.20	8x7
φ30.1~φ38	10	±0.0180	3.3		10x8
φ38.1~φ44	12	±0.0215	3.3		12x8
φ44.1~φ50	14		3.8		14x9
φ50.1~Ф58	16		4.3		16x10
φ58.1~φ65	18		4.4		18x11

Keyway Machining Standard Drawing

Tips: How to install the diaphragm coupling?

Wipe clean the dust and dirt on the surface of the installation shaft, and apply a thin layer of engine oil or lubricant.
Clean the inner hole of the diaphragm coupling, and apply oil or lubricant.
Insert the diaphragm coupling into the installation shaft; if the aperture is too tight, be careful not to hit the installation with a hammer or hard metal.
After the positioning is completed, first press the diagonal direction and gently tighten the screw with a torque wrench (the specified tightening torque 1/4).
Increase the strength (1/2 of the specified tightening torque) and repeat the fourth step.
Tighten the tightening torque according to the specified tightening torque.
Finally, tighten the fixing screws in the circumferential direction.
When disassembling, please proceed with the device completely stopped, loosen the locking screws one by one.
