One Diaphragm Coupling, 4mm To 8mm

0 reviews • Write a review

from

$126.98

Ex Tax: $126.98

Stock: In Stock
Model: RDDLZ-SC-GSM1920
Weight: 1.00
SKU: RDDLZ-SC-GSM1920

Available Options

Short Description

φd1 Inner Diameter Size (mm)

φd2 Inner Diameter Size (mm)

WIth Keyway

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

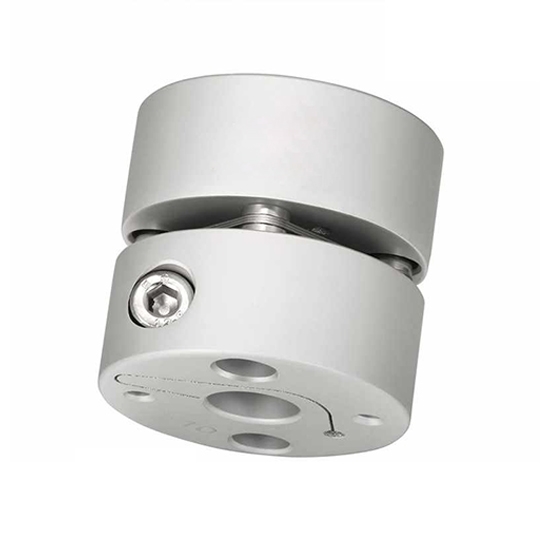

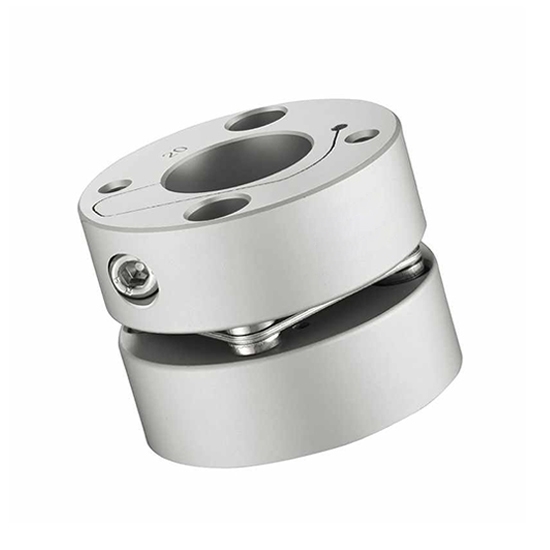

Shaft coupling for connecting servo motors and stepping motors, single diaphragm, bore 4mm to 8mm, diameter 19mm x length 20mm, light weight, easy to install.

Specification

Model	RDDLZ-SC-GSM1920
Length	20mm
Width	19mm
Bore	4mm to 8mm
Rated Torque	1 N.m
Allow Eccentricity	0.1mm
Allowable Deflection Angle	1∠°
Allowable Axial Deviation	±0.09
Allowable Speed	10000 RPM
Static Torsional Stiffness	1400N.m/rad
Moment of Inertia	6.7 x 10^-7
Weight	12g
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

Single Diaphragm Flexible Coupling Dimension (unit: mm)

d1/d2 Inner Diameter Size	Φd	L	LF	S	F	M	Tightening Torque
3-4-5-6-6.35-7-8	19	20	9.1	1.8	3.3	M2.5	1 N.m

Details

Keyway

Shaft Diameter	Keyway Standard Machining Dimensions				Keyway Size
d1/d2	b		t		(bXh)
d1/d2	Width of groove	Tolerance	Depth of groove	Tolerance	(bXh)
φ6~φ7.9	2	±0.0125	1	±0.10	2x2
φ8~φ10	3	±0.0125	1.4		3x3
φ10.1~φ12	4	±0.0150	1.8		4x4
φ12.1~φ17	5		2.3		5x5
φ17.1~φ22	6		2.8		6x6
φ22.1~φ30	8	±0.0180	3.3	±0.20	8x7
φ30.1~φ38	10	±0.0180	3.3		10x8
φ38.1~φ44	12	±0.0215	3.3		12x8
φ44.1~φ50	14		3.8		14x9
φ50.1~Ф58	16		4.3		16x10
φ58.1~φ65	18		4.4		18x11

Keyway Machining Standard Drawing

Tips: Flexible Shaft Coupling Features

Zero clearance: The entire coupling is not allowed to have clearance during transmission.
Low inertia: On the basis of ensuring the transmission strength, the weight of the coupling should be reduced as much as possible. Good flexibility:
The precision coupling needs to absorb the deviation between the shaft and the shaft produced during the installation process to a large extent.
Compact structure: The shaft coupling is usually small in size, and its clockwise and counterclockwise rotation characteristics are exactly the same.
Maintenance-free: After the shaft coupling is installed, there is basically no need for maintenance, and the installation is extremely convenient.
