One Diaphragm Coupling, 8mm To 16mm

0 reviews • Write a review

from

$116.98

Ex Tax: $116.98

Stock: In Stock
Model: RDDLZ-SC-GSM39345
Weight: 1.00
SKU: RDDLZ-SC-GSM39345

Available Options

Short Description

φd1 Inner Diameter Size (mm)

φd2 Inner Diameter Size (mm)

WIth Keyway

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

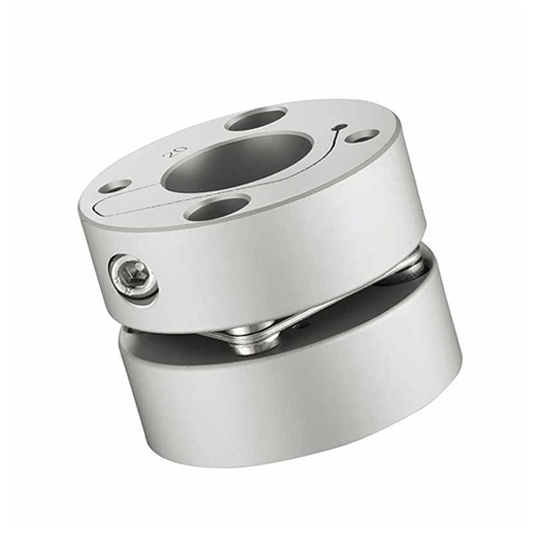

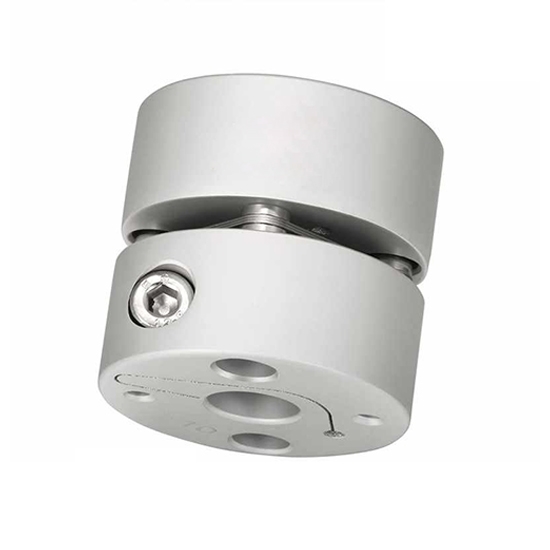

8mm to 16mm shaft coupler with 1 diaphragm, 39 diameter x 34.5 length, diaphragm coupling is made of aluminum alloy, strong oxidation resistance, light weight, easy to install, 12 months warranty.

Specification

Model	RDDLZ-SC-GSM39345
Length	34.5mm
Width	39mm
Bore	8mm to 16mm
Rated Torque	10 N.m
Allow Eccentricity	0.1mm
Allowable Deflection Angle	1∠°
Allowable Axial Deviation	±0.23
Allowable Speed	10000 RPM
Static Torsional Stiffness	8100N.m/rad
Moment of Inertia	2.2 x 10^-5
Weight	88g
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

Single Diaphragm Flexible Coupling Dimension (unit: mm)

d1/d2 Inner Diameter Size	Φd	L	LF	S	F	M	Tightening Torque
8-9-9.525-10-11-12-12.7-14-15-16	39	34.5	14.9	4.5	5	M4	3.5 N.m

Details

Keyway

Shaft Diameter	Keyway Standard Machining Dimensions				Keyway Size
d1/d2	b		t		(bXh)
d1/d2	Width of groove	Tolerance	Depth of groove	Tolerance	(bXh)
φ6~φ7.9	2	±0.0125	1	±0.10	2x2
φ8~φ10	3	±0.0125	1.4		3x3
φ10.1~φ12	4	±0.0150	1.8		4x4
φ12.1~φ17	5		2.3		5x5
φ17.1~φ22	6		2.8		6x6
φ22.1~φ30	8	±0.0180	3.3	±0.20	8x7
φ30.1~φ38	10	±0.0180	3.3		10x8
φ38.1~φ44	12	±0.0215	3.3		12x8
φ44.1~φ50	14		3.8		14x9
φ50.1~Ф58	16		4.3		16x10
φ58.1~φ65	18		4.4		18x11

Keyway Machining Standard Drawing

The difference between one diaphragm coupling and two diaphragm coupling
Diaphragm couplings are generally divided into one diaphragm couplings and two diaphragm couplings. The difference between the two is the ability to handle various deviations. In view of the complex bending of the diaphragm, the single diaphragm coupling is not well adapted to eccentricity. The double diaphragm coupling can bend in different directions at the same time to compensate for eccentricity.
