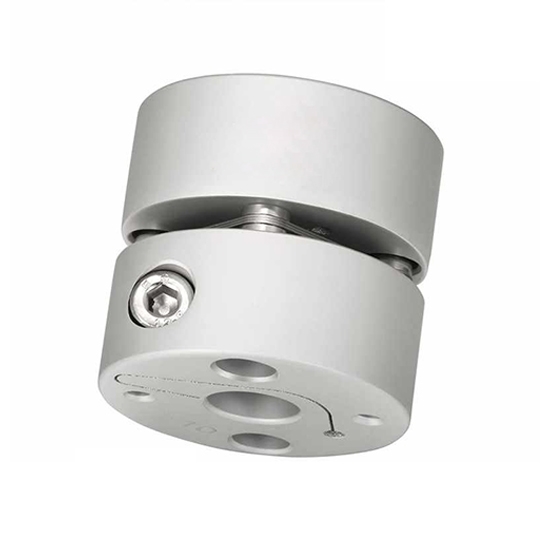

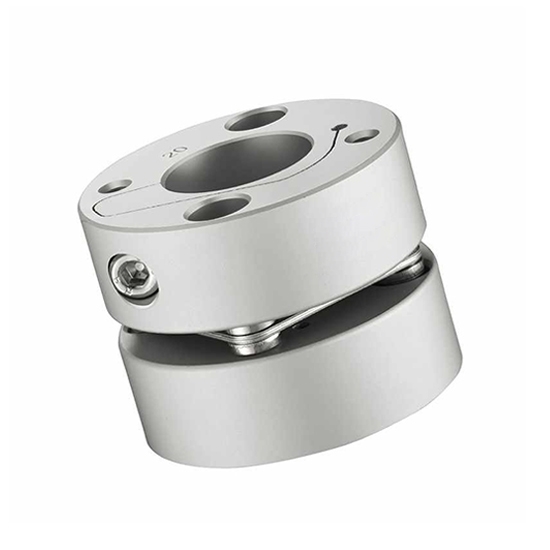

One Diaphragm Coupling, 6mm To 14mm

0 reviews • Write a review

from

$116.98

Ex Tax: $116.98

Stock: In Stock
Model: RDDLZ-SC-GSM3432
Weight: 1.00
SKU: RDDLZ-SC-GSM3432

Available Options

Short Description

φd1 Inner Diameter Size (mm)

φd2 Inner Diameter Size (mm)

WIth Keyway

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High torque flexible shaft coupling bore 6mm to 14mm, rated torque 5N.m, speed of 10000rpm, length 32mm, diameter 34mm, shaft coupling has elastic elements that play the role of buffering and damping to protect the prime mover and the working machine from damage or damage.

Specification

Model	RDDLZ-SC-GSM3432
Length	32mm
Width	34mm
Bore	6mm to 14mm
Rated Torque	5 N.m
Allow Eccentricity	0.1mm
Allowable Deflection Angle	1∠°
Allowable Axial Deviation	±0.18
Allowable Speed	10000 RPM
Static Torsional Stiffness	5700N.m/rad
Moment of Inertia	8.0 x 10^-6
Weight	61g
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

Single Diaphragm Flexible Coupling Dimension (unit: mm)

d1/d2 Inner Diameter Size	Φd	L	LF	S	F	M	Tightening Torque
5-6-6.35-7-8-9-9.52-10-11-12-12.7-14	34	32	14.25	3.5	4.85	M4	3.5 N.m

Details

Keyway

Shaft Diameter	Keyway Standard Machining Dimensions				Keyway Size
d1/d2	b		t		(bXh)
d1/d2	Width of groove	Tolerance	Depth of groove	Tolerance	(bXh)
φ6~φ7.9	2	±0.0125	1	±0.10	2x2
φ8~φ10	3	±0.0125	1.4		3x3
φ10.1~φ12	4	±0.0150	1.8		4x4
φ12.1~φ17	5		2.3		5x5
φ17.1~φ22	6		2.8		6x6
φ22.1~φ30	8	±0.0180	3.3	±0.20	8x7
φ30.1~φ38	10	±0.0180	3.3		10x8
φ38.1~φ44	12	±0.0215	3.3		12x8
φ44.1~φ50	14		3.8		14x9
φ50.1~Ф58	16		4.3		16x10
φ58.1~φ65	18		4.4		18x11

Keyway Machining Standard Drawing

Tips for choosing a shaft coupling type

1. The size and nature of the torque to be transmitted, the requirements for buffering and damping functions, and whether resonance may occur.
2. The relative displacement of the axis of the two shafts caused by manufacturing and assembly errors, shaft load and thermal expansion deformation, and relative movement between components.
3. The allowable dimensions and installation methods are the operating space necessary for ease of assembly, adjustment and maintenance. For large shaft couplings, it should be possible to disassemble and assemble without the need for axial movement of the shaft.
