One Diaphragm Coupling, 12mm To 25mm

0 reviews • Write a review

from

$136.98

Ex Tax: $136.98

Stock: In Stock
Model: RDDLZ-SC-GSM5645
Weight: 1.00
SKU: RDDLZ-SC-GSM5645

Available Options

Short Description

φd1 Inner Diameter Size (mm)

φd2 Inner Diameter Size (mm)

WIth Keyway

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

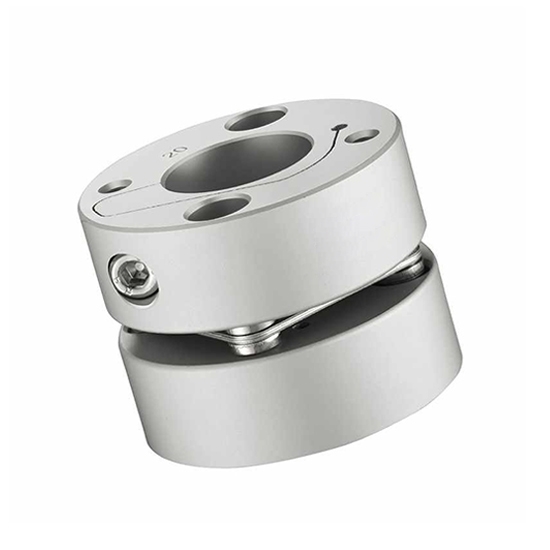

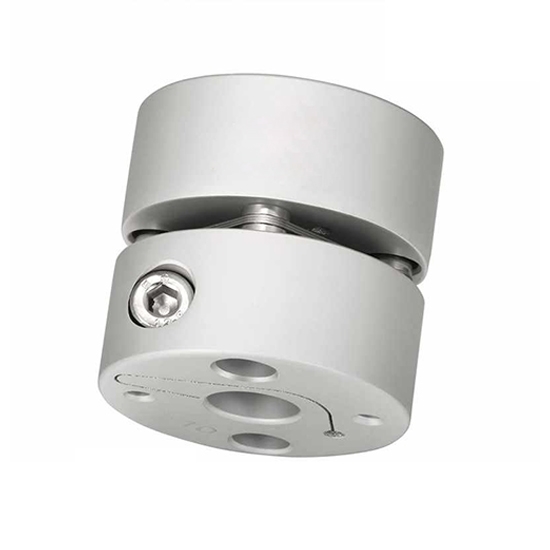

12mm to 25mm shaft coupler size 56 x 56mm, single diaphragm internal clamping, low inertia, suitable for high-speed servo motors and stepping motors.

Specification

Model	RDDLZ-SC-GSM5645
Length	45mm
Width	56mm
Bore	12mm to 25mm
Rated Torque	25 N.m
Allow Eccentricity	0.1mm
Allowable Deflection Angle	1∠°
Allowable Axial Deviation	±0.36
Allowable Speed	10000 RPM
Static Torsional Stiffness	2000N.m/rad
Moment of Inertia	1.2 x 10^-4
Weight	220g
Certificate	ISO9001, REACH, RoHS
Warranty	12 Months

Single Diaphragm Flexible Coupling Dimension (unit: mm)

d1/d2 Inner Diameter Size	Φd	L	LF	S	F	M	Tightening Torque
8-9-9.525-10-11-12-12.7-14-15-16-17-18-19-20-22-24-25	56	45	19.75	5.5	6.4	M5	8 N.m

Details

Keyway

Shaft Diameter	Keyway Standard Machining Dimensions				Keyway Size
d1/d2	b		t		(bXh)
d1/d2	Width of groove	Tolerance	Depth of groove	Tolerance	(bXh)
φ6~φ7.9	2	±0.0125	1	±0.10	2x2
φ8~φ10	3	±0.0125	1.4		3x3
φ10.1~φ12	4	±0.0150	1.8		4x4
φ12.1~φ17	5		2.3		5x5
φ17.1~φ22	6		2.8		6x6
φ22.1~φ30	8	±0.0180	3.3	±0.20	8x7
φ30.1~φ38	10	±0.0180	3.3		10x8
φ38.1~φ44	12	±0.0215	3.3		12x8
φ44.1~φ50	14		3.8		14x9
φ50.1~Ф58	16		4.3		16x10
φ58.1~φ65	18		4.4		18x11

Keyway Machining Standard Drawing

Tips: Diaphragm coupling advantages
The diaphragm coupling has a simple structure and high reliability. It is suitable for high-speed, high-power, high-temperature and corrosive environments. It has great axial and angular compensation, good anti-misalignment, and has vibration absorption and vibration isolation functions. The coupling has no noise, zero clearance, constant speed, no need for lubrication. The additional load acting on the connected equipment is small, and the diaphragm coupling is easy to install, use and maintain.
