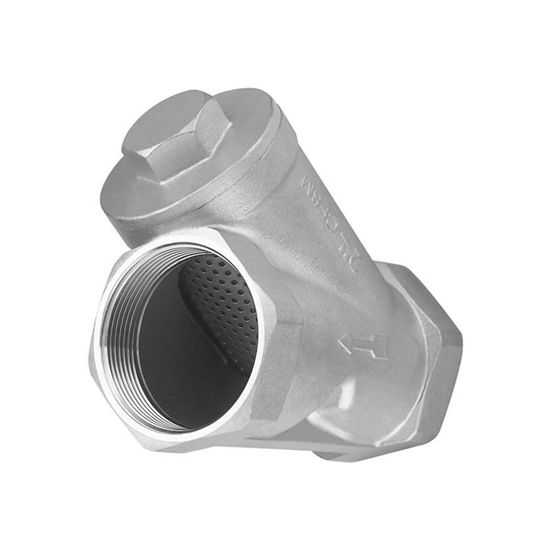

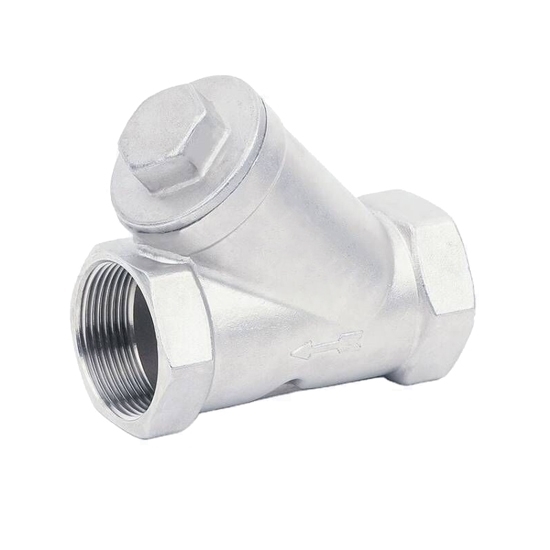

1 Inch Stainless Steel Y Strainer

0 reviews • Write a review

from

$51.61

Ex Tax: $51.61

Stock: In Stock
Model: RDDLZ-SSYS-25
Weight: 1.00
SKU: RDDLZ-SSYS-25

Available Options

Short Description

Material

Thread

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This Y type strainer cannot be used for drinking water.

1 inch (DN25) stainless steel Y strainer features 800PSI working pressure, SS 304/316 material, optional BSP, BSPT, and NPT threads, commonly used in various industrial applications, such as chemical processing, oil and gas, water treatment, and food processing.

Specifications

Model: RDDLZ-T11F-800WOG (P/R)
Type: Y Type Strainer
Nominal Diameter: 1 inch (DN25)
Working Pressure: 800PSI
Product Material: 304/316 Stainless Steel
Connection Form: Thread
Thread Standard: BSP, BSPT, NPT
Temperature Range: -20°C~180°C
Weight: 0.365kg

Dimensions (Unit: mm)

Main Part Materials
NO.	Part Name	Materials	QTY
1	BODY	CF8/CF8M	1
2	FILTER	S304/S316	1
3	JOINT GASKET	PTRE/RPTFE	1
4	CAP	CF8/CF8M	1
Dimension (Unit: mm)
DN	D	L±1.5	H
25	25	57	50

Applications

Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.

Tips: Y-Type Strainer vs. Other Type Strainers

Y-type strainers are similar to other types of strainers, such as basket strainers and duplex strainers, in that they are used to filter unwanted debris and particles from pipelines. However, Y-type strainers have a specific Y-shaped configuration that allows for more efficient filtration and less pressure drop than other types of strainers. Additionally, Y-type strainers are generally more compact and easier to install and maintain than other types of strainers.
