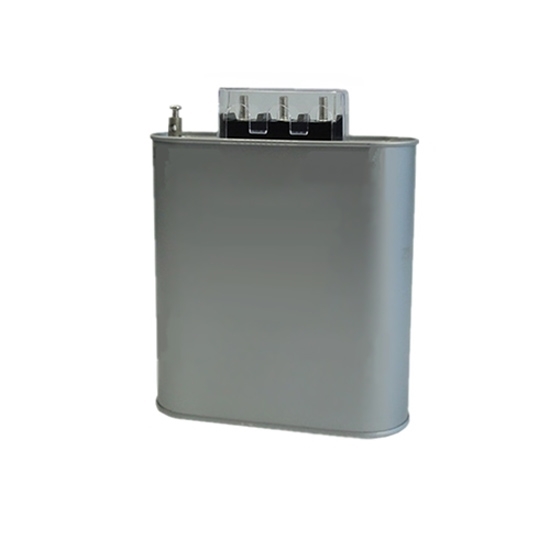

25 Kvar 393 μF Shunt Power Capacitor, 3 Phase, 450V, Low Voltage

0 reviews • Write a review

from

$255.08

Ex Tax: $255.08

Stock: In Stock
Model: RDDLZ-CAP-45025
Weight: 1.00
SKU: RDDLZ-CAP-45025

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

25 kvar Shunt Power Capacitor Features

25 kvar (393 μF) tared capacity works at 3 phase 450V AC low voltage
Compact design and reliable quality thanks to advanced technology and self-healing metalized film material
Designed in accordance with standards GB/T 12747-2004, IEC60831: 212002
No oil leakage, no-toxic and environment protection

25 kvar 3 Phase Capacitor Specifications

Model	0.45-25-3
Shape	Rectangular
Weight	2.4 Kg
Height	210 mm
Rated Voltage	450V AC
Rated Capacity	25 kvar (393 μF)
Rated Current	32.1 A
Rated Frequency	50Hz or 60Hz
Capacity Tolerance	-5%~+10%
Outgoing Terminal	M6
Connection	3 line-△ type / 4 line-Y type
Anti Voltage	Between two pole 2.15 times rated voltage is 10s; Between two pole 3 kv please choose highest value 10s; There is noperpetuity puncture and flash over.
Max Permit Over Voltage	1.1 times rated voltage, the high permit over voltage is not more than 8 hours within 24 hours. 1.15 times rated voltage, it is not more than 30 minutes within 24 hours. 1.2 times rated voltage, it is not more than 5 minutes. 1.3 times ratedvoltage, it would not more than 1 minute.
Max Permit Over Current	It is permit that the over current is not more than 1.3 times rated current.
Safety	Self healing, Sheet metal enclosure
Certification	GB/T 12747-2004, IEC60831: 212002

Note: Need more models information of the 3 phase shunt capacitors, please click here.

25 kvar Shunt Capacitor Dimension (mm)
Tips: Star wiring and triangular wiring of low-voltage shunt power capacitor

Low-voltage shunt power capacitor mainly has two kinds of wiring: star wiring and triangular wiring. If the rated voltage of capacity is the same as that of power grid, use the triangular wiring. Because of the triangle wiring, the voltage of the other two phase capacitors is constant and continues to work even if the capacitor has a single-phase grounding short circuit. Therefore, in the high pressure side concentrated compensation, the triangle is adopted.

If you use a star connection, the situation is different. For example, in three-phase three-wire system, when one phase fuse is blown, the voltage of other two phases decreases, and the capacitor cannot work properly. When short circuit of single-phase grounding occurs, the other two phase voltage will rise to the line voltage, which can easily cause the breakdown of capacitor.

Characteristics of these two ways of connection:

1. Considering the capacity of capacitors, connection way of triangle is better than that of star. For the same three capacitors, the capacity of triangular connection is three times the capacity of star connection. The capacity with triangular connection is three times that star connection.

2. Considering the safety of power system, the star connection mode is better than the triangle connection mode. Because of the triangle connection, it is easy to cause short-circuit when the capacitor is short-circuited. Therefore, in neutral system, star or double star are used in parallel system.
