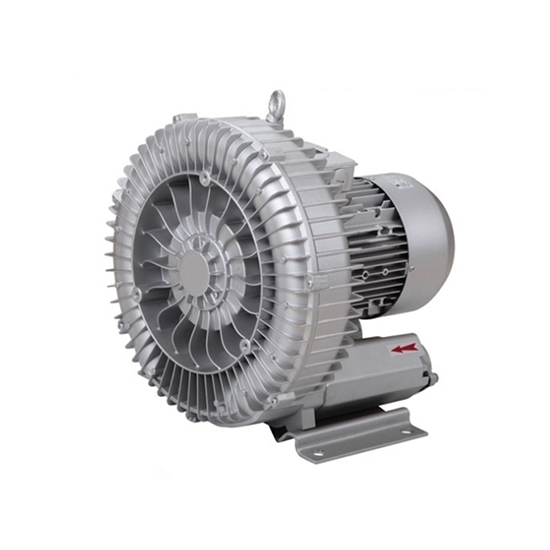

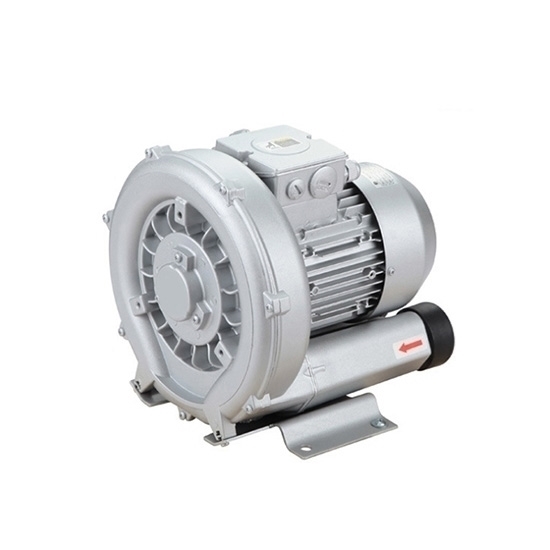

3 Phase 1/2 Hp (400W) Regenerative Blower, 380V, 47 Cfm
from
$542.87
Ex Tax: $542.87
- Stock: In Stock
- Model: RDDLZ-RB-380-400
- Weight: 1.00
- SKU: RDDLZ-RB-380-400
Available Options
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
3-phase industrial vortex air blower for sale on RDDLZ. Centrifugal circulation design, 130 mbar high pressure, 47 cfm large air volume, 53 dB lower noise.
Specification
Model | RDDLZ-2PB210H16 |
Phase | 3 phase |
Frequency | 50/60 Hz |
Power | 1/ 2 hp (400W) |
Rated speed | 3550 rmp |
Voltage (AC) | △220-240V / Y345-415V |
Current | 2.6△ A / 1.5Y A |
Max airflow | 80 m³/ h (47 cfm) |
Rated vacuum pressure | -120 mbar |
Rated compress pressure | 130 mbar |
Noise | 53 dB (A) |
Weight | 13 kg |
Dimention (Unit: mm)
A | B | C | D | E | F | G | H | J | K | L | M | N | O | P | Q | ΦR | S | U | V (1~) | V' (1~) | V1 (3~) | V1' (3~) | YXZ | X-HOLES | ΦX |
246 | 247 | 90 | 205 | 230 | 256 | 135 | 128 | 101 | 83 | 108 | 75 | 71 | 39 | G11/4 | 64 | 10 | 3 | M6X19 | / | / | M25X1.5 | M16X1.5 | M6X15 | 0°/ 120°/ 240° | 140 |
Details
Tips: Advantages of RDDLZ high pressure regenerative blower
- RDDLZ high pressure regenerative blower has the dual function of blowing and sucking.
- The air output for oil-free work is very clean. RDDLZ users will notice that the use of oil in the blower will have a great impact on the environment, but all problems can be easily solved by purchasing our high pressure blower.
- The pump body of the RDDLZ high pressure regenerative air blower adopts the shockproof equipment angle seat, which can reduce the difficulty of the equipment and can be automatically fixed, which is beneficial to the normal operation of the entire high pressure pump and can also save the equipment cost.
- Unlike other vortex blowers, the noise of RDDLZ high pressure vortex blowers is very small. The higher the power of the blower, the lower the noise. This is an advantage of the overall plan of the electric blowers, and it is more environmentally friendly. This is unmatched by other traditional blowers.
- The mechanical wear is small. There are no other mechanical contact parts except the bearing, so the service life is very long, up to 2-6 years.
