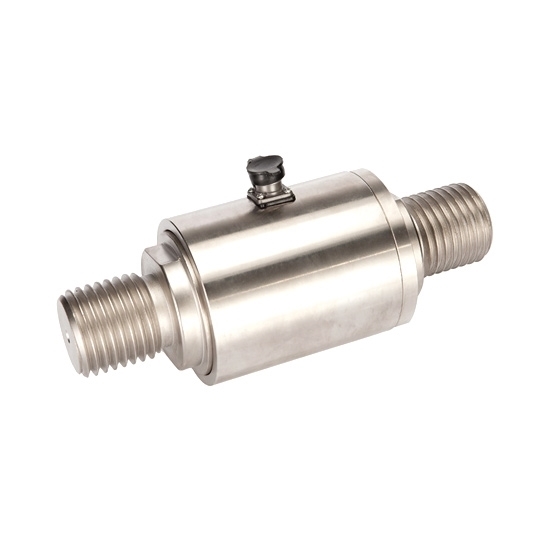

Tension Load Cell, 10 Ton/30 Ton/50 Ton/100 Ton To 200 Ton

0 reviews • Write a review

from

$291.29

Ex Tax: $291.29

Stock: In Stock
Model: RDDLZ-LC-T02
Weight: 1.00
SKU: RDDLZ-LC-T02

Available Options

Capacity

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

After purchasing one RDDLZ load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0~5V, 0~10V, 0~±10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Tension and compression load cells have capacity range from 10 ton, 20 ton, 30 ton, 50 ton, 100 ton to 200 ton. Load cell capacity can be customized according to customer requirements.

Specification

Model	RDDLZ-LCST-TJL-8
Shipping Weight	1.5~4kg
Capacity Range *	10 ton~200 ton

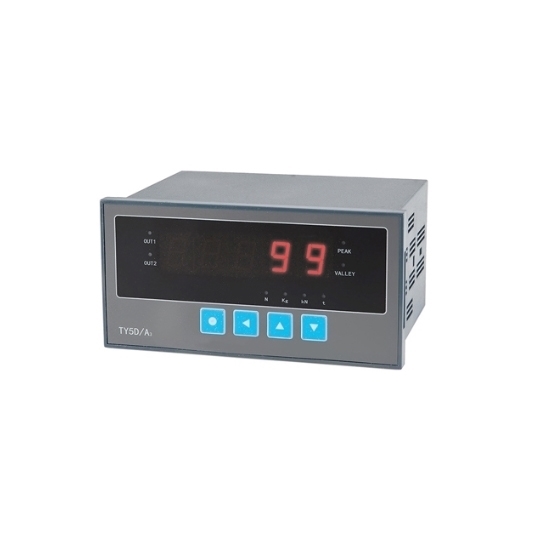

Matched Display Controller	RDDLZ-TY5DA3 (Click it to the controller page)

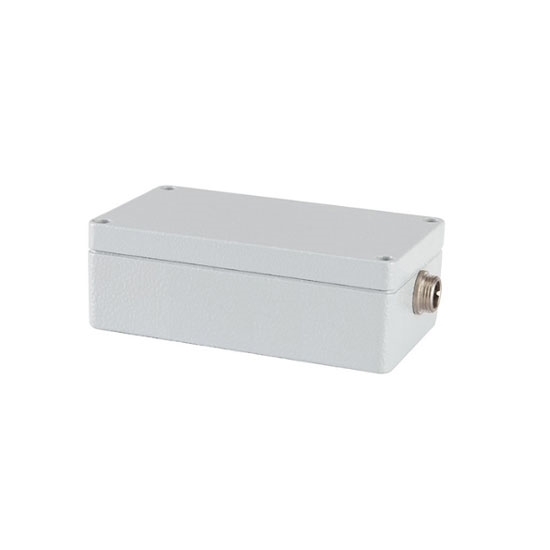

Matched Transmitter	RDDLZ-LCTR-NTB3K (Click it to the transmitter page)
Accuracy	0.05~0.1%F.S (linearity + hysteresis + repeatability)
Sensitivity	1.5±0.1mV/V
Output Signal	0-20mV
Creep	±0.05%F.S/30min
Zero Output	±1%F.S
Temperature Effect on Zero	±0.05%F.S/10℃
Temperature Effect on Output	±0.05%F.S/10℃
Operating Temperature	-20℃~+65℃
Input Impedance	380±10Ω or 750±15Ω
Output Impedance	350±3Ω or 700±5Ω
Insulation Resistance	≥5000MΩ
Safety Overload	150%F.S
Bridge Voltage (excitation voltage)	DC 10V
Material	Alloy steel
Protection Class	IP67
Cable Length	6m
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

Feature

42CrMo Alloy Material: External thread connection, strong resistance to machine fatigue, large load capacity, wide range of applications, and safe and reliable.
High Measurement Accuracy: Stable output, reliable signal transmission, strong anti-jamming capability, ensuring high accuracy.
Fine Workmanship: Advanced grinding technology, flat design, easy connection with dual-threaded ends, simple and convenient installation.

Dimension

Capacity	Dimension (mm)
Capacity	A	ΦB	C	M
10~20 ton	214	82~86	124	M42*4.5
30~50 ton	276	106	157	M56*5.5
70~100 ton	380	142	180	M76*4
150~200 ton	500	175	220	M130*6

Wiring Method

Tips: What is the difference between a Tension Load Cell and a Compression Load Cell?

The main difference between a tension load cell and a compression load cell is the direction of the force being measured. A tension load cell is designed to measure pulling or tension forces, while a compression load cell measures pushing or compressive forces.

Tension Load Cells are used in applications where the load is being pulled, such as on cranes, hoists, or wire ropes.
Compression Load Cells are used when the force is applied in a compressive direction, such as in weighing systems or hydraulic presses.

Both types of load cells work based on the same principle, converting mechanical force into an electrical signal, but they are optimized for different load directions.
