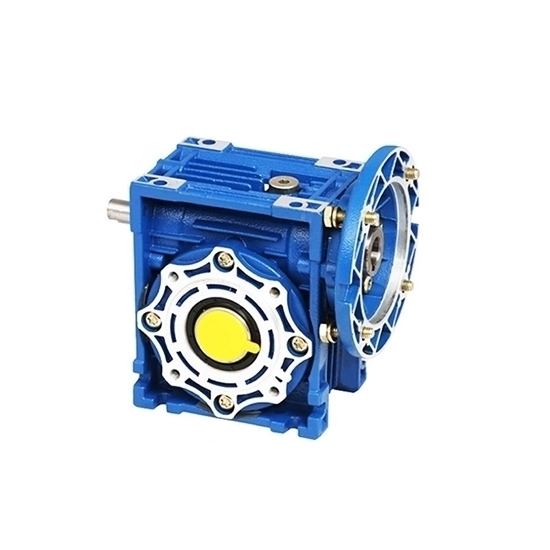

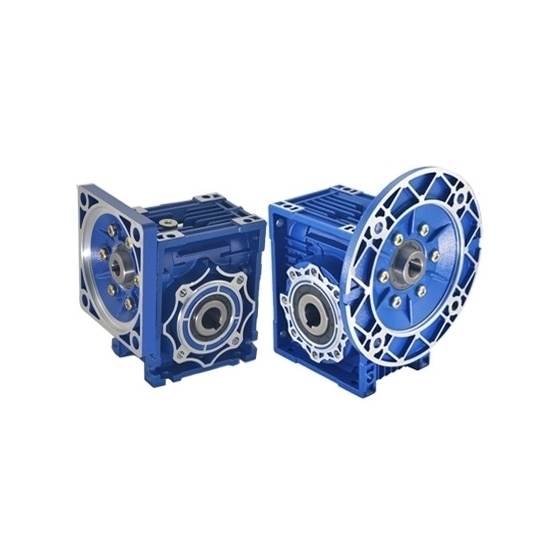

90mm Worm Gearbox, Ratio 5:1 To 100:1, 182 N.m

0 reviews • Write a review

from

$804.87

Ex Tax: $804.87

Stock: In Stock
Model: RDDLZ-WGR90
Weight: 1.00
SKU: RDDLZ-WGR90

Available Options

Accessories

Reduction Ratio

Motor Type

Motor Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

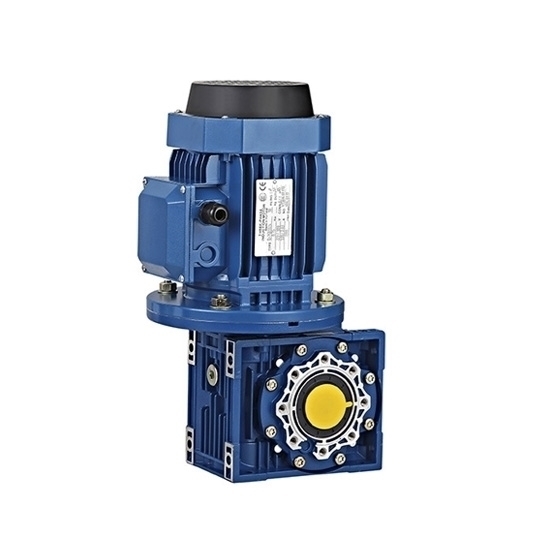

Buy reduction ratio 5~100 worm gearbox together with 750W-4000W asynchronous motor, and you’ll get lower price from RDDLZ. Small size, high heat dissipation performance, can be installed arbitrarily.

Specification

Model	RDDLZ-NMRV090
Reduction ratio	5:1/ 7.5:1/ 10:1/ 15:1/ 20:1/ 25:1/ 30:1/ 40:1/ 50:1/ 60:1/ 80:1/ 100:1 (optional)
Center distance	90mm
Rated torque	182 N.m
Maximum torque	5799 N.m
Rated power	1.5 kW
Rated speed	70 rpm
Dynamic efficiency	82%
Certification	CE
Color	Blue
Warranty	1 year
Protection grade	IP65
Material	Housing: Aluminum alloy Turbine: 20 Cr Worm: Tin bronze

Dimention (Unit: mm)

Details

Customizable accessories

Tips: 5 lubrication methods for worm gearbox

According to the various structures and characteristics of the worm gearbox, there are mainly the following five lubrication methods:

Pressure lubrication. An oil pump needs to be added to the engine, and the pressure of the oil pump is used to supply the oil to each lubrication point. Pressure lubrication belongs to compulsory lubrication, and compulsory lubrication relies on the oil pump to deliver the lubricating oil to the friction part under a certain pressure.
Splash lubrication. The lubricating oil is thrown up by the lubricating rod mounted on the connecting rod and then splashed to the parts that need lubrication. Therefore, the cylinder and the motion mechanism need to use the same lubricating oil. This lubrication method is mostly used in small worm gearbox reducers without crossheads.
Spray lubrication. The sprayed oil mist enters the lubrication location such as the cylinder with the gas. The sliding vane gear reducer and the screw gear reducer are used for this kind of lubrication.
Dripping oil lubrication is to use the oil cup and oil pipeline to deliver the lubricating oil to the parts that should be refueled, or to fill the lubricating oil with an oil can on time.
Oil ring lubrication. A rotating shaft is used to drive a movable oil ring sleeved on the shaft, and the oil ring brings the oil in the oil pool to the bearing for circulating lubrication.
