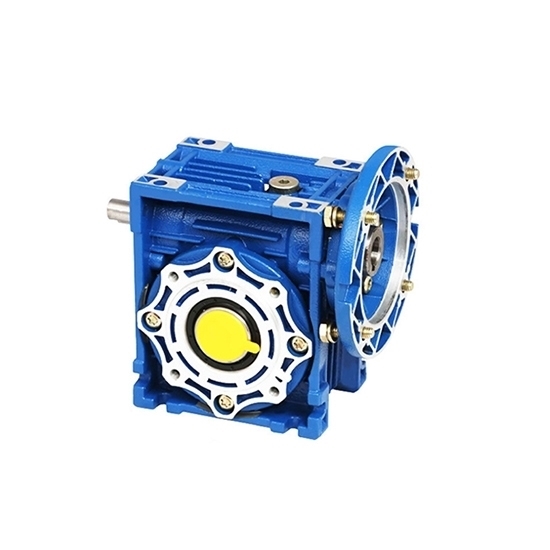

40mm Worm Gearbox, Ratio 5:1 To 100:1, 17 N.m

0 reviews • Write a review

from

$498.48

Ex Tax: $498.48

Stock: In Stock
Model: RDDLZ-WGR40
Weight: 1.00
SKU: RDDLZ-WGR40

Available Options

Accessories

Reduction Ratio

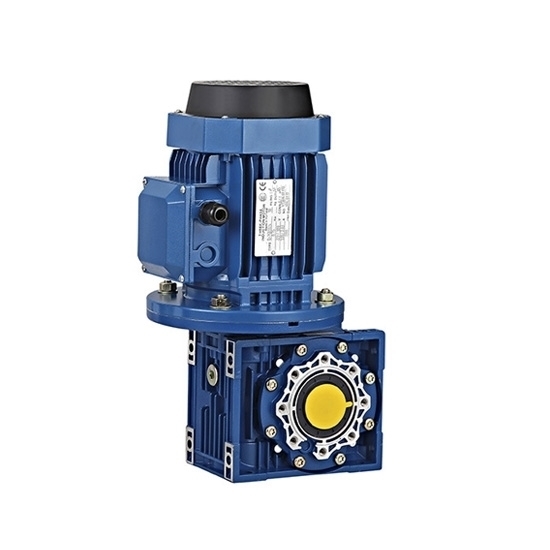

Motor Type

Motor Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

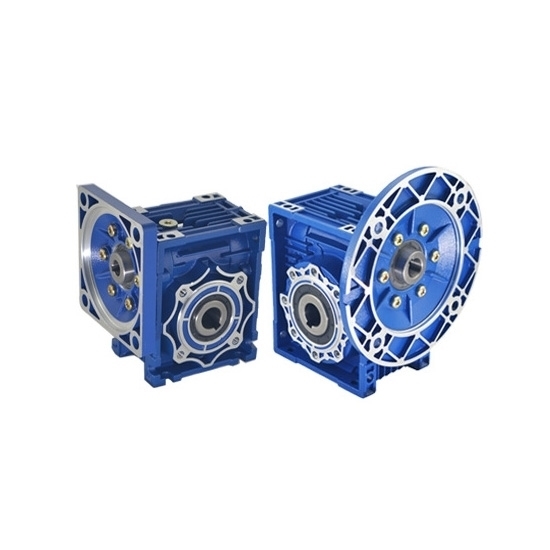

Buy NMRV worm gearbox reducer from RDDLZ online store. 5:1 to 100:1 reduction ratio, 120W rated power. Purchase with flange and one-way output shaft/ bidirectional output shaft, the price is more affordable.

Specification

Model	RDDLZ-NMRV040
Reduction ratio	5:1/ 7.5:1/ 10:1/ 15:1/ 20:1/ 25:1/ 30:1/ 40:1/ 50:1/ 60:1/ 80:1/ 100:1 (optional)
Center distance	40mm
Rated torque	17 N.m
Maximum torque	2087 N.m
Rated power	0.12 kW
Rated speed	47 rpm
Protection grade	IP65
Certification	CE
Color	Blue
Warranty	1 year
Material	Housing: Aluminum alloy Turbine: 20 Cr Worm: Tin bronze

Dimention (Unit: mm)

Details

Customizable accessories

Tips: How to reduce the noise of worm gearbox?

Use smooth tooth surface. Grinding, rubbing and stone grinding can achieve ideal tooth surface roughness, or warming up in oil for a period of time can also improve the tooth surface roughness, which reduces the noise of the worm gearbox.
Choose gears with good precision. If the pitch error, tooth profile error, tooth groove deviation and tooth rib error are reduced, the noise will be reduced. Grinding the tooth surface can not only improve the accuracy of the gear, but also improve the roughness of the tooth surface. Therefore, the noise of the worm gearbox reducer can be well reduced.
Correct tooth surface contact. The implementation of tooth surface drum processing or cutting end processing to prevent single-piece contact, the noise will naturally be reduced. Proper tooth shape trimming is also effective in reducing noise.
