400W Spiral Wind Turbine, 12V/24V/48V

400W Spiral Wind Turbine, 12V/24V/48V
400W Spiral Wind Turbine, 12V/24V/48V
400W Spiral Wind Turbine, 12V/24V/48V
400W Spiral Wind Turbine, 12V/24V/48V
400W Spiral Wind Turbine, 12V/24V/48V
from
$1,114.23
Ex Tax: $1,114.23
  • Stock: In Stock
  • Model: RDDLZ-SWT-400X
  • Weight: 1.00
  • SKU: RDDLZ-SWT-400X

Available Options

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

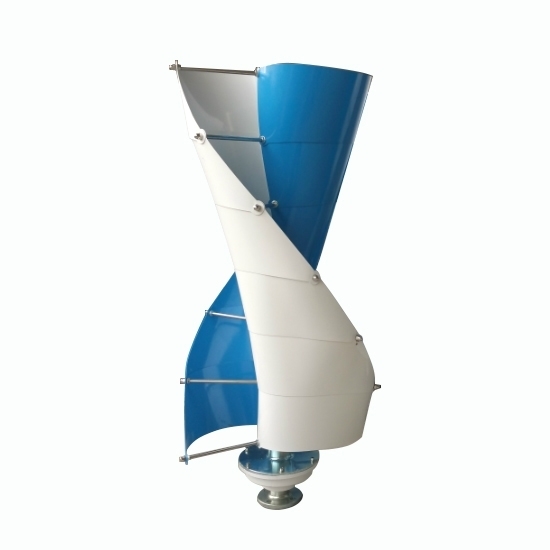

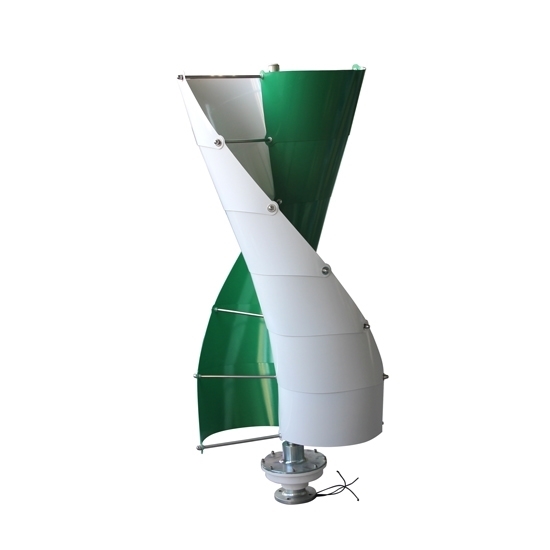

This 400W spiral vertical wind turbine is suitable for a variety of power demand scenarios, providing stable power support for homes, remote areas and outdoor activities.

Features

  • The spiral wind turbine has a low starting wind speed, which can quickly start and effectively capture wind energy under low wind speed conditions, while its beautiful appearance design, low vibration operation and low noise characteristics.
  • It adopts a humanized design to ensure a simple installation process and facilitate subsequent maintenance and repair.
  • The blades of the wind turbine are manufactured by precision injection molding, combined with a streamlined aerodynamic design to improve the utilization rate of wind energy.
  • The wind turbine uses a permanent magnet rotor generator and is equipped with a unique stator design, which effectively reduces the resistance torque of the generator and improves the power generation efficiency and overall system performance.

Specification

ModelRDDLZ-FY-400X
Rated power400W
Max power410W
Rated voltage12/24/48V
Start-up wind speed1.3m/s
Rated wind speed11.5m/s
Survival wind speed45m/s
Top net weight26kg
Wind wheel diameter1.2m
Blades height   0.6m
Number of blades  2
Blades materialCasting aluminum alloy
Generator typeMaglev generators
Control systemElectromagnet
Speed regulationAutomatically adjust windward direction
Lubrication wayLubrication grease
Working temperature-40℃~80℃
Matched controller modelRDDLZ-WTC-400


Dimension (mm)

Details

Tips: Environmental protection and sustainable development of spiral wind turbines

Spiral wind turbines are a clean, renewable energy device that can greatly reduce dependence on fossil fuels and help reduce carbon emissions. Compared with traditional fossil energy power generation, wind energy is a pollution-free energy source. Using wind power to generate electricity not only does not emit harmful gases, but also helps slow down global warming. With the increasing global attention to environmental protection and sustainable development, spiral wind turbines, as part of green energy, are gradually becoming an important means to solve energy shortages and environmental pollution problems. Its efficient energy conversion and low environmental impact make it an important part of the future sustainable society.
