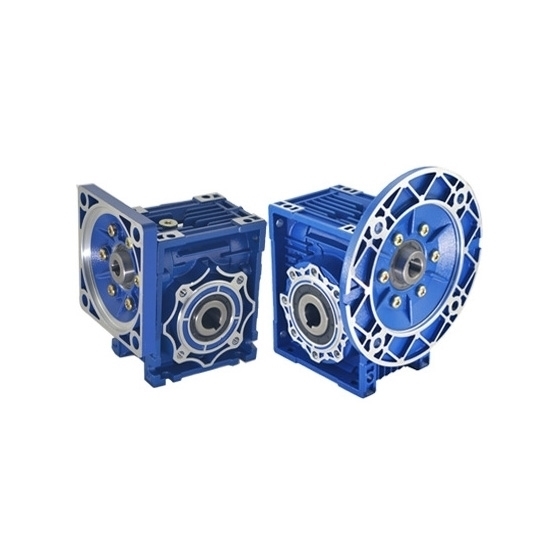

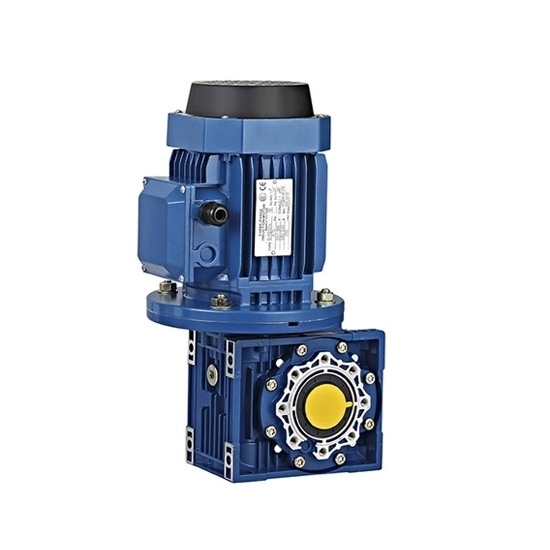

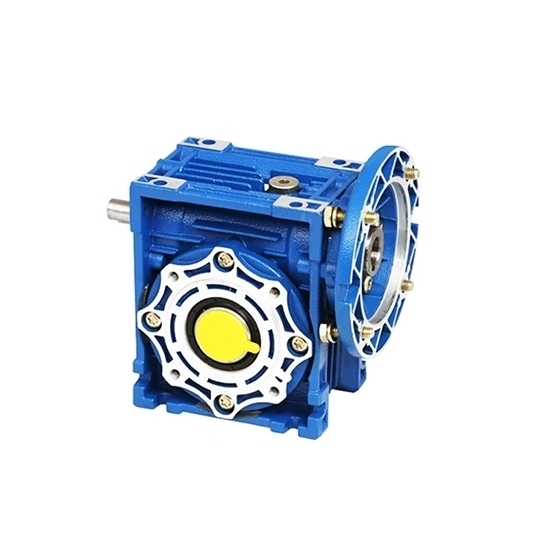

50mm Worm Gearbox, Ratio 5:1 To 100:1, 27 N.m

0 reviews • Write a review

from

$536.05

Ex Tax: $536.05

Stock: In Stock
Model: RDDLZ-WGR50
Weight: 1.00
SKU: RDDLZ-WGR50

Available Options

Accessories

Reduction Ratio

Motor Type

Motor Voltage

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The NMRV worm gearbox reducer provided by RDDLZ is a speed reducer with low noise, high efficiency and low price. 200W rated power, 40:1/ 50:1/ 60:1/ 80:1 reduction ratio, IP65.

Specification

Model	RDDLZ-NMRV050
Reduction ratio	5:1/ 7.5:1/ 10:1/ 15:1/ 20:1/ 25:1/ 30:1/ 40:1/ 50:1/ 60:1/ 80:1/ 100:1 (optional)
Center distance	50mm
Rated torque	27 N.m
Rated power	0.2 kW
Rated speed	1400 rpm
Protection grade	IP65
Certification	CE
Color	Blue
Warranty	1 year
Material	Housing: Aluminum alloy Turbine: 20 Cr Worm: Tin bronze

Dimention (Unit: mm)

Details

Customizable accessories

Tips: 50mm worm gearbox installing tips

Clean the shaft before installing the 50mm worm gearbox reducer, and check whether the installation shaft has bruises or dirt, if any, it should be cleaned up.
Before installing the 50mm worm gearbox, confirm whether the motor and reducer are intact, and strictly check whether the size of each part connecting the motor and the reducer matches.
When installing the transmission part on the output shaft, it is not allowed to hit with a hammer. Usually the assembly fixture and the internal thread of the shaft end are used to press the transmission part in with bolts, otherwise it may cause damage to the internal parts of the 50mm worm gearbox speed reducer.
The blockage should be cleared before use to ensure that the 50mm center distance speed reducer is discharged from the body during operation. Otherwise, the long-term operation of the 50mm worm gearbox reducer will cause the gas in the reducer to swell the oil seal, and even cause the reducer to leak oil.
