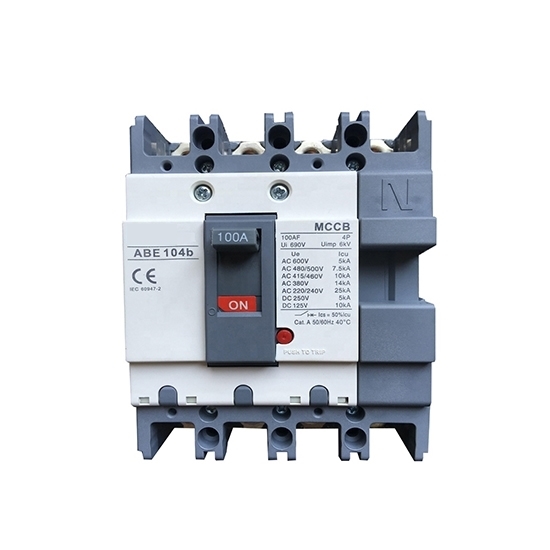

4 Pole Molded Case Circuit Breaker, 50A/ 60A/ 75A/ 100A

0 reviews • Write a review

from

$92.86

Ex Tax: $92.86

Stock: In Stock
Model: RDDLZ-MCCB-1004P
Weight: 1.00
SKU: RDDLZ-MCCB-1004P

Available Options

Short Description

Rated Current

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

100 amp mccb with operating voltage 400 volt, -25℃~+50℃ operating temperature. The mccb circuit breaker is suitable for conversion of line and infrequent starting motor.

Molded Case Circuit Breaker Information

Model: RDDLZ-MCCB-ABE-104b
Max. rated Current: 100 amp
Rated Voltage: 380/ 415V AC, 50Hz/ 60Hz
Number of poles: Four pole
50 kA short circuit interrupting capacity

Specification

Standard Certifications			IEC60947	GB14048
Electrical Parameters	Model	RDDLZ-ABE-104b
	Rated Current	50A, 60A, 75A, 100A (contact us, the current can be chosen)
	Numbers of Poles	4 Pole
	Rated Operating Voltage	400V
	Rated Insulated Voltage (Ui)	800V
	Rated Frequency	50Hz/ 60Hz
	Ultimate Short Circuit Breaking Capacity, Icu	DC	125V	10kA
			250V	5kA
		AC 50Hz/ 60Hz	230V	25kA
			380V	14kA
			415V	10kA
			440V	10kA
			480V	7.5kA
			600V	5kA
Mechanical Parameters	Electrical Life	1500 times
	Mechanical Life	8500 times
	Protection Degree	IP20
	Operating Temperature	-25℃~+50℃
	Weight	1kg

Dimension (Unit: mm)

Model	Dimensions																		Mounting Dimensions
Model	C	C1	E	F	G	G1	H	H1	H2	H3	H4	H5	L	L1	L2	W	W1	W2	A	B	Φd
RDDLZ-ABE-104b	87	124	50.5	22	19.5	7.5	68	102	18	5	4	4.5	150	185	132	92	30	120	36	142	7

Details

Tips: Working Conditions of Molded Case Circuit Breaker.

1. Ambient air temperature:
1) The upper limit of ambient air temperature +40℃;
2) The lower limit of ambient air temperature is -5℃;
3) The average value of the ambient air temperature for 24 hours does not exceed +35°C.

2. Altitude: The altitude of the installation site does not exceed 2000m.

3. Atmospheric conditions:
The relative humidity of the atmosphere does not exceed 50% when the ambient air temperature is +40℃; it can have a higher relative humidity at a lower temperature; the monthly average maximum relative humidity of the wettest month is 90%, and the monthly average of the month is the lowest The temperature is +25℃, taking into account the condensation on the surface of the product due to temperature changes.

4. Pollution degree: The pollution degree is level 3.
