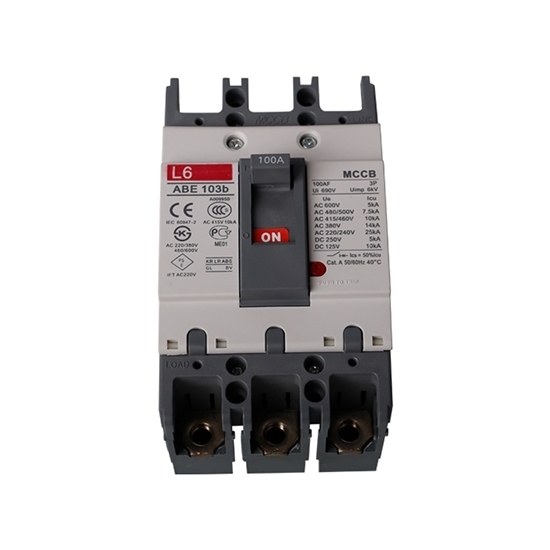

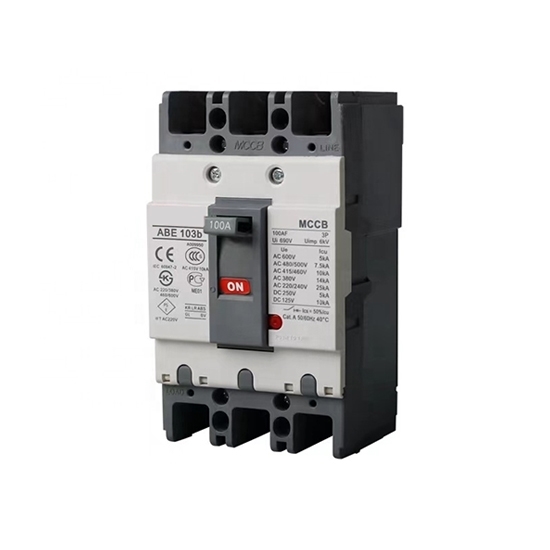

3 Pole Molded Case Circuit Breaker, 50A/ 60A/ 75A/ 100A

0 reviews • Write a review

from

$83.33

Ex Tax: $83.33

Stock: In Stock
Model: RDDLZ-MCCB-1003P
Weight: 1.00
SKU: RDDLZ-MCCB-1003P

Available Options

Short Description

Rated Current

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Mccb circuit breaker with IP20 protection degree, rated voltage 380/ 415VAC, 50Hz/ 60Hz. 100 amp mccb has advantages of high reliability, low failure rate, long overhaul period and low maintenance workload.

Molded Case Circuit Breaker Information

Model: RDDLZ-MCCB-ABE-103b
Rated Current: 100 amp
Rated Voltage: 380/415V AC, 50Hz/ 60Hz
Number of poles: Three pole
50 kA short circuit interrupting capacity

Specification

Standard Certifications			IEC60947	GB14048
Electrical Parameters	Model	RDDLZ-ABE-103b
	Rated Current	50A, 60A, 75A, 100A (contact us, the current can be chosen)
	Numbers of Poles	3 Pole
	Rated Operating Voltage	400V
	Rated Insulated Voltage (Ui)	800V
	Rated Frequency	50Hz/ 60Hz
	Ultimate Short Circuit Breaking Capacity, Icu	DC	125V	10kA
			250V	5kA
		AC 50Hz/ 60Hz	230V	25kA
			380V	14kA
			415V	10kA
			440V	10kA
			480V	7.5kA
			600V	5kA
Mechanical Parameters	Electrical Life	1500 times
	Mechanical Life	8500 times
	Protection Degree	IP 20
	Operating Temperature	-25℃~+50℃
	Weight	0.8kg

Dimension (Unit: mm)

Model	Dimensions																		Mounting Dimensions
Model	C	C1	E	F	G	G1	H	H1	H2	H3	H4	H5	L	L1	L2	W	W1	W2	A	B	Φd
RDDLZ-ABE-103b	87	124	50.5	22	19.5	7.5	68	102	18	5	4	4.5	150	185	132	92	30	120	36	142	7

Details

Tips: Working Principle of Molded Case Circuit Breaker.

The main contact of the low-voltage circuit breaker is manually operated or electrically closed. After the main contact is closed, the free trip mechanism locks the main contact in the closing position. The coil of the overcurrent release and the thermal element of the thermal release are connected in series with the main circuit, and the coil of the undervoltage release is connected in parallel with the power supply.

When the circuit is short-circuited or severely overloaded, the armature of the overcurrent release pulls in, causing the free tripping mechanism to operate, and the main contact disconnects the main circuit.

When the circuit is overloaded, the thermal element of the thermal trip unit generates heat to bend the bimetallic strip, pushing the free trip mechanism to act, and the main contact disconnects the main circuit.

When the circuit is under-voltage, the armature of the under-voltage release is released, which also causes the free trip mechanism to act, and the main contact disconnects the main circuit.

When the shunt trip button is pressed, the armature of the shunt trip unit pulls in, causing the free trip mechanism to act, and the main contact disconnects the main circuit.
