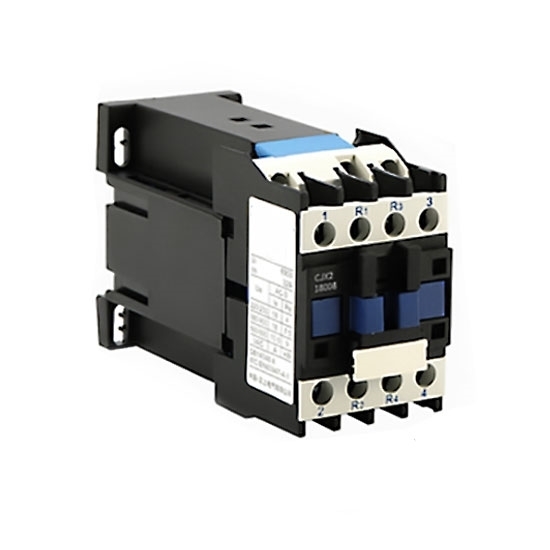

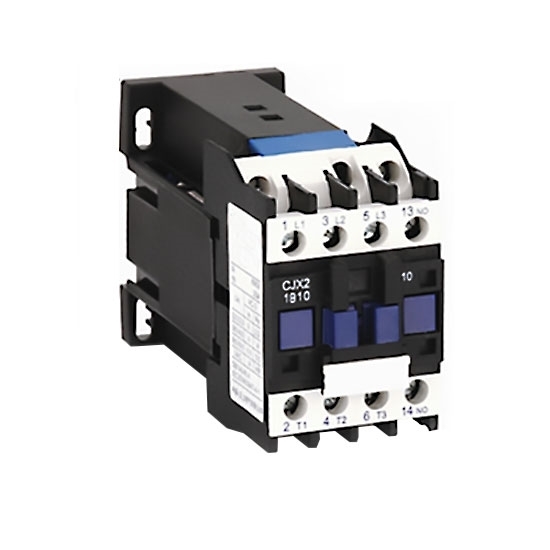

18 Amp 3/4 Pole DC Coil Contactor, 12V/24V/48V/220V Coil

0 reviews • Write a review

from

$76.99

Ex Tax: $76.99

Stock: In Stock
Model: RDDLZ-DCCON-18A
Weight: 1.00
SKU: RDDLZ-DCCON-18A

Available Options

Contact Form

Coil Rated Voltage

Auxiliary Contact

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ DC contactor is designed for DC adjustable speed drive circuits which require a combination contacts of normally open and normally closed. It works as to connect and break of the circuit load, which can fully meet the special demand of electric locomotive, diesel locomotive and electric motor car group.

Specification

Model		RDDLZ-CJX2-18Z	RDDLZ-CJX2-18008Z
Rated Current		18A AC
Coil Rated Voltage (Optional)		12V DC, 24V DC, 36V DC, 48V DC, 110V DC, 220V DC
Contact Form (Optional)		3 Pole (3NO)+1NO, 3 Pole (3NO)+1NC	4 Pole (2NO+2NC)
Frequency		50Hz/ 60Hz AC
Rated Power (AC-3)	200-240V	4kW (5.5HP)
	380-440V	7.5kW (10HP)
	500-550V	9kW (12HP)
	600-690V	10kW (13.5HP)
Conventional Thermal Current		32A
Operating Temperature		-40℃~85℃
Operating Humidity		5~95% RH

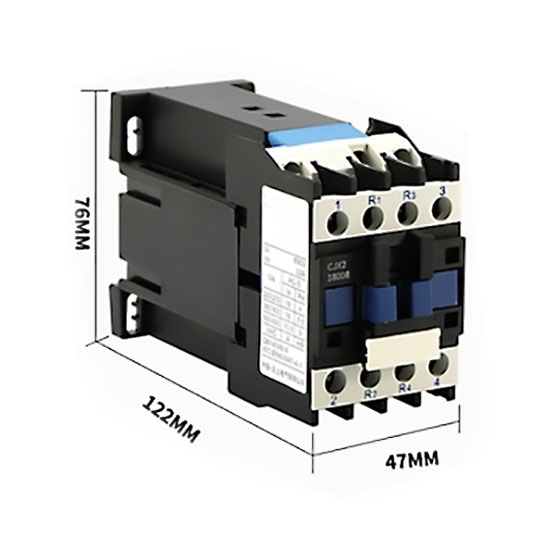

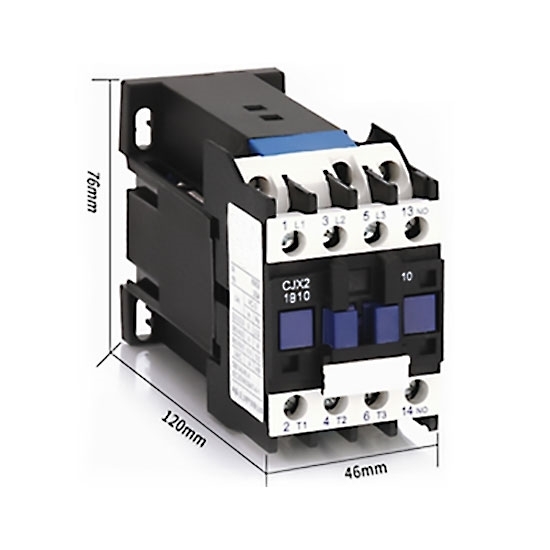

Dimensions		47 x 76 x 120mm	47 x 76 x 122mm
Weight		0.5kg

Circuits Diagram

Details

Tips: What is a DC contactor?

A DC contactor refers to a contactor whose iron core is DC controlled, and its load can be either DC or AC. The iron core of the DC contactor is different from the AC contactor. It has no eddy current, so it is generally made of mild steel or industrial pure iron to make a round shape. Since the attracting coil of the DC contactor is energized with DC, there is no impulsive starting current, and there is no violent impact on the iron core, so it has a long life and is suitable for frequent start and stop occasions. The selection of AC and DC contactors can check electrical products according to the working voltage and current of the line.
