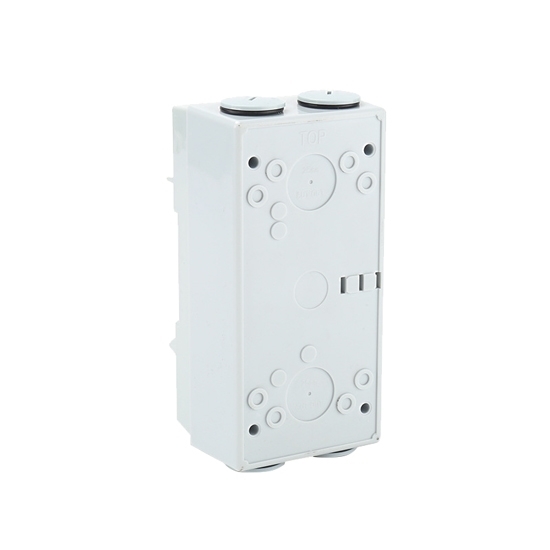

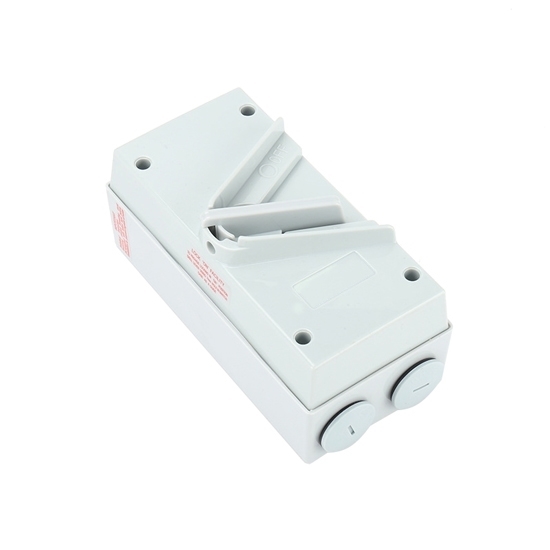

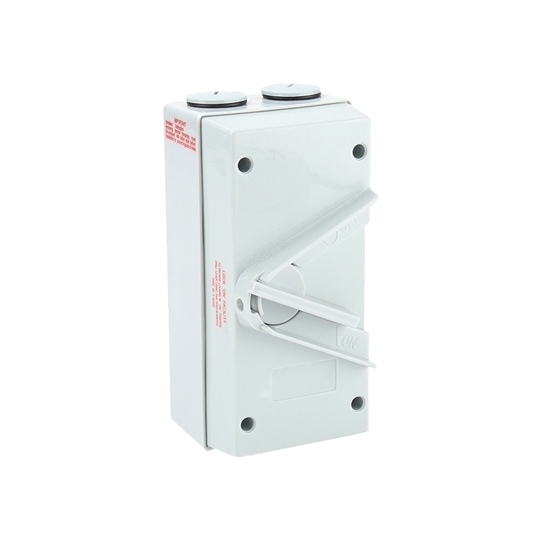

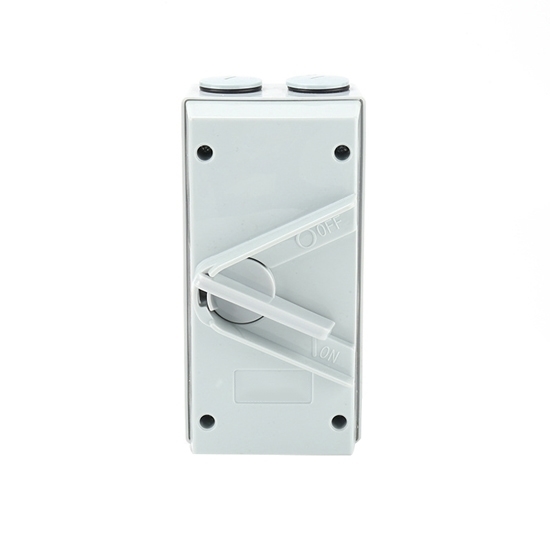

20A/45A Outdoor Isolator Switch, 1 Pole/2 Pole/3 Pole/4 Pole

0 reviews • Write a review

from

$55.76

Ex Tax: $55.76

Stock: In Stock
Model: RDDLZ-IS-UKF
Weight: 1.00
SKU: RDDLZ-IS-UKF

Available Options

Rated Current

Shell Material

Number of Poles

Internal Contact Material

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

1 Pole/2 Pole/3 Pole/4 Pole IP65 waterproof isolator switch is ruggedly constructed to withstand not only weather changes but also frequent switching under severe loads, such as motor loads or other high inductive loads. 20 amp, 32 amp, 45 amp or 63 amp disconnect switch is suitable for indoor and outdoor installations to suit different environments.

Model: RDDLZ-UKF
Standard: IEC/EN60947-3, AS/NZS 3947
Rated Voltage: 240V AC/415V AC
Rated Frequency: 50/60Hz
Utilization Category: AC22A/AC23A
Number of Pole: 1 Pole, 2 Pole, 3 Pole, 4 Pole
Rating: 20 amp, 32 amp, 45 amp, 63 amp
External Material: PC or ABS
Internal Contact Material: Copper or Silver
IP Protection: IP65
Approvals: CB, CE, SAA

Dimension (Unit: mm)

Wiring Diagram

Applications

Tips: Why use isolation switches outdoors?

Outdoor isolation switches are essential for safety, as they allow quick disconnection of power during maintenance or emergencies. They protect electrical equipment from damage caused by environmental factors like rain, dust, and temperature extremes, and are often required to meet electrical safety regulations. Additionally, they offer convenient access to shut down outdoor systems such as solar panels, HVAC units, or lighting, ensuring safe operation and maintenance without needing to access indoor control panels.
