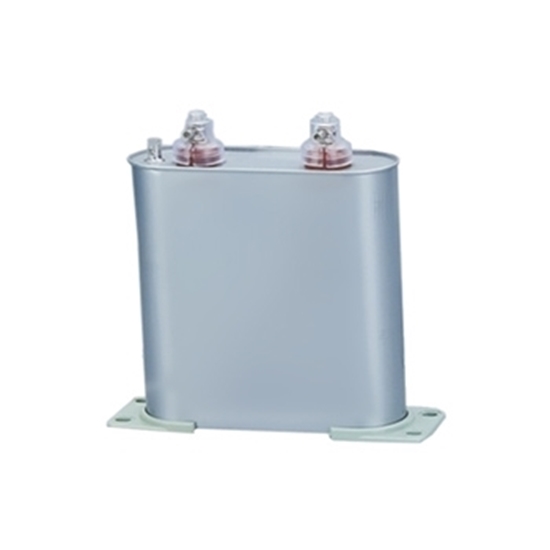

10 Kvar Shunt Capacitor, Single Phase, 400V, Self-healing

0 reviews • Write a review

from

$125.38

Ex Tax: $125.38

Stock: In Stock
Model: RDDLZ-CAP-40010
Weight: 1.00
SKU: RDDLZ-CAP-40010

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

10 kvar Capacitor Features

It can be used in 50Hz or 60Hz, 400V AC low voltage circuit system.
Small volume, light weight for you easy to install.
Excellent self-healing property: Rapidly self-healing after midum dielectric breakdown by over-voltage or over-current, recovered to normal work.
Good Safety performance: Discharge resitor and over-pressure protection device inside capacitor.
No leaking, no pollution and environment protection.

10 kvar Single Phase Capacitor Specifications

Model	0.4-10-1
Shape	Rectangular
Weight	1.5 Kg
Height	180 mm
Rated Voltage	400V AC
Rated Capacity	10 kvar (198 μF)
Rated Current	25 A
Rated Frequency	50Hz or 60Hz
Capacity Tolerance	-5%~+10%
Outgoing Terminal	M6
Connection	3 line-△ type / 4 line-Y type
Anti Voltage	Between two pole 2.15 times rated voltage is 10s; Between two pole 3 kv please choose highest value 10s; There is noperpetuity puncture and flash over.
Max Permit Over Voltage	1.1 times rated voltage, the high permit over voltage is not more than 8 hours within 24 hours. 1.15 times rated voltage, it is not more than 30 minutes within 24 hours. 1.2 times rated voltage, it is not more than 5 minutes. 1.3 times ratedvoltage, it would not more than 1 minute.
Max Permit Over Current	It is permit that the over current is not more than 1.3 times rated current.
Safety	Self healing, Sheet metal enclosure
Certification	GB/T 12747-2004, IEC60831: 212002

Note: Need more models information of the single phase shunt capacitors, please click here.

10 kvar Shunt Capacitor Dimension (mm)

Tips: What is a shunt capacitor?

Shunt capacitor, formerly known as phase-shifting capacitor. It is mainly used to compensate the reactive power of the inductive load of the power system to improve the power factor and the voltage quality and reduce the line loss. Single-phase shunt capacitor is mainly composed of core, shell and outlet structure. The metal foil (as a polar plate) is folded together with an insulating paper or plastic film, which consists of a number of components, insulating pieces and fasteners that are pressed together to form a capacitor core and impregnated with insulating oil. The lead wire of the capacitor plate is connected by string and connected in series and parallel to the outlet connecting piece of the lower end of the outlet porcelain casing. The metal shell of capacitor is filled with insulating medium oil.
