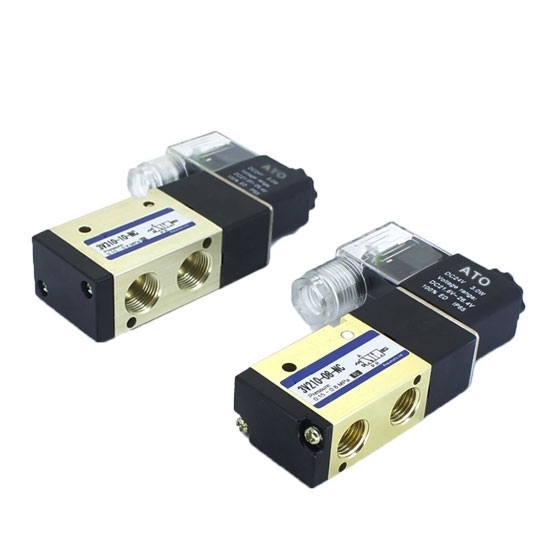

Pneumatic Solenoid Valve, 3 Way, Normally Closed, 12V/24V/110V/220V

0 reviews • Write a review

from

$48.59

Ex Tax: $48.59

Stock: In Stock
Model: RDDLZ-VALVE-3VNC
Weight: 1.00
SKU: RDDLZ-VALVE-3VNC

Available Options

Short Description

Model

Voltage (V)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

Pneumatic solenoid valve, 2-position 3-port, normally closed, single solenoid, is used to handle the flow of air with long service life and high reliability under the working voltage of 12V DC, 24V DC, 110V AC or 220V AC, and widely used in the industrial fields like chemical, petroleum, pharmaceutical, automotive, light industry, food, mineral processing, electroplating, metallurgy, textiles etc.

Specification

Model	RDDLZ-3V110-M5-NC	RDDLZ-3V110-06-NC	RDDLZ-3V210-06-NC	RDDLZ-3V210-08-NC	RDDLZ-3V310-08-NC	RDDLZ-3V310-10-NC	RDDLZ-3V410-15-NC
Number of Ports	3-way (3-port)
Number of Positions	2-position
Valve Type	Normally Closed
Operation Mode	Internally piloted
Number of Solenoid	Single
Port Size	M5×0.8	Rc 1/8"	Rc 1/8"	Rc 1/4"	Rc 1/4"	Rc 3/8"	Rc 1/2"
Media	Air
Operating Pressure Range	0.15~0.8MPa (22~116PSI)
Max. Pressure Resistance	1.2MPa
Voltage (Optional)	12V DC, 24V DC, 110V AC, 220V AC
Dimension	See below table
Voltage Tolerance	-10%~+10%
Operating Temperature	5℃~60℃ (41℉~140℉)
Insulation Grade	Class B
Protection Grade	IP65
Body Material	Aluminum Alloy
Seal Material	NBR
Wiring Method	Terminal type
Max. Action Frequency	5Hz (5 cycles/second)
Lubrication	No

Dimensions
(body length unit = mm, port size unit = inch)

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T
3V110-M5-NC	13	18	22.7	0	M5×0.8	19	Φ3.3	13.2	Φ3.1	27	2.5	88.4	55	12.2	21	7.7	0	M5×0.8	14.2	14.7
3V110-06-NC	13	18	23.7	1	PT1/8	19	Φ3.3	13.2	Φ3.1	27	2.5	88.4	55	12.2	21	7.7	2	PT1/8	16	14.7
3V210-06-NC	17	22	27.7	0	PT1/8	30	Φ3.2	12.7	Φ4.2	35	3	109	66.7	15.2	25	8.2	0	PT1/8	22	16.7
3V210-08-NC	17	22	28.7	1.5	PT1/4	30	Φ3.2	12.7	Φ4.2	35	3	109	66.7	15.2	25	8.2	0	PT1/4	22.5	16.7
3V310-08-NC	20	27	32.5	0	PT1/4	35	Φ4.3	15	Φ4.3	40	2.4	120	69.2	17.5	30	10.5	0	PT1/4	24	20.5
3V310-10-NC	20	27	32.5	2	PT3/8	35	Φ4.3	15	Φ4.3	40	2.4	120	69.2	17.5	30	10.5	0	PT3/8	24	20.5
3V410-15-NC	27	34	42	3	PT1/2	48	Φ4.5	17.5	Φ4.5	50	2.8	138	74	17.5	48	13	0	PT1/2	35	25

Solenoid Valve Symbol (Flow Diagram)

Tips: Differences between pilot-operated and direct acting solenoid valve

1. Pressure tolerance
The pilot-operated solenoid valve has a higher tolerance of liquid pressure than the direct acting solenoid valve.

2. Response time
The starting speed of the direct acting solenoid valve is quicker than that of the directly operated type. It is mostly used for the occasion of fast connection and disconnection. Because the small valve opens in the first and the main valve opens later when the pilot-operated solenoid valve is supplied with power. Instead, the directly operated solenoid valve is opened with its main valve directly. When the pilot-operated solenoid valve is energized, the small valve opens at the first and the main valve opens later. However, as to the direct acting solenoid valve, the main solenoid opens directly.

3. Flow capacity
The flow capacity of the pilot-operated solenoid valve is bigger than that of the directly operated type. Generally, the CV value can reach 3 or above.

4. Power and consumption
The power and consumption of the directly operated solenoid valve are higher than that of the pilot-operated type.

5. Purity of the medium
The pilot-operated solenoid valve has a relatively high requirement to the purity of the flowing medium. However, the direct acting type has no such strict requirement.
