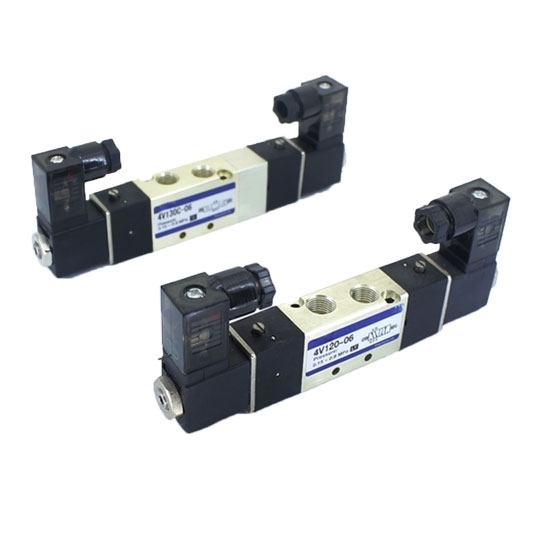

Pneumatic Double Solenoid Valve, 5 Way, 12V/24V/110V/220V

0 reviews • Write a review

from

$55.79

Ex Tax: $55.79

Stock: In Stock
Model: RDDLZ-VALVE-4VD
Weight: 1.00
SKU: RDDLZ-VALVE-4VD

Available Options

Short Description

Model

Voltage (V)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

5/2(3)-way double solenoid pneumatic valve is used to control the flow of the compressed air with supply voltage 12V DC, 24V DC, 110V AC and 220V AC, and widely applied in the industrial fields like chemical, petroleum, pharmaceutical, automotive, light industry, food, mineral processing, electroplating, metallurgy, textiles etc.

Specification

Model	RDDLZ-4V120-M5	RDDLZ-4V120-06	RDDLZ-4V220-06	RDDLZ-4V220-08	RDDLZ-4V320-08	RDDLZ-4V320-10
Number of Ports	5-way
Number of Positions	2-position/3-position
Operation Mode	Internally Pilot Operated
Number of Solenoid	Double
Port Size	M5×0.8	Rc 1/8"	Rc 1/8"	Rc 1/4"	Rc 1/4"	Rc 3/8"
Media	Air
Operating Pressure Range	0.15~0.8MPa (22~116PSI)
Max. Pressure Resistance	1.2MPa
Voltage (Optional)	12V DC, 24V DC, 110V AC, 220V AC
Dimensions	See below table
Voltage Tolerance	-10%~+10%
Operating Temperature	5℃~60℃ (41℉~140℉)
Insulation Grade	Class B
Protection Grade	IP65
Body Material	Aluminum Alloy
Seal Material	NBR
Wiring Method	Terminal type
Max. Action Frequency	5Hz (5 cycles/second)
Lubrication	No

Dimensions
(body length unit = mm, port size unit = inch)

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T	U	V
4V120-M5	56.2	30	14	64.3	M5×0.8	0	Φ3.3	27	Φ3.3	14	2.5	142.4	64.2	55	9.5	13	18	M5×0.8	57.7	27	71.2	0
4V120-06	56.2	30	16	63.2	PT1/8	3	Φ3.3	27	Φ3.3	14	2.5	142.4	64.2	55	9.5	13	18	PT1/8	57.2	28	71.2	1
4V220-06	66.4	38	18	76.4	PT1/8	0	Φ3.2	35	Φ4.3	20	3	171	75.4	66.7	10.5	17	22	PT1/8	67.4	36	85.4	0
4V220-08	66.4	38	21	74.9	PT1/4	3	Φ3.2	35	Φ4.3	20	3	171	75.4	66.7	10.5	17	22	PT1/8	67.4	36	85.4	0
4V320-08	69.9	50	22	83.9	PT1/4	0	Φ4.3	40	Φ4.3	24	2.4	190	82.9	69.2	1.5	20	27	PT1/4	72.4	45	94.9	0
4V320-10	69.9	50	24	82.9	PT3/8	4	Φ4.3	40	Φ4.3	24	2.4	190	82.9	69.2	13.5	20	27	PT1/4	72.4	45	94.9	0

5/2-Way Double Solenoid Valve Symbol (Flow Diagram)
Tips: How does a direct-acting solenoid valve work?

The following is brief introduction of direct-acting solenoid valve.

Working principle
When the power is on, the solenoid coil generates the electromagnetic force to lift the closure member from the valve seat to open the valve. When the power is cut off, the electromagnetic force disappears and the spring presses the closure member on the valve seat to close the valve.
Characteristics
It can work normally in the vacuum, negative pressure and zero pressure. However, the diameter normally doesn’t exceed 25mm.
