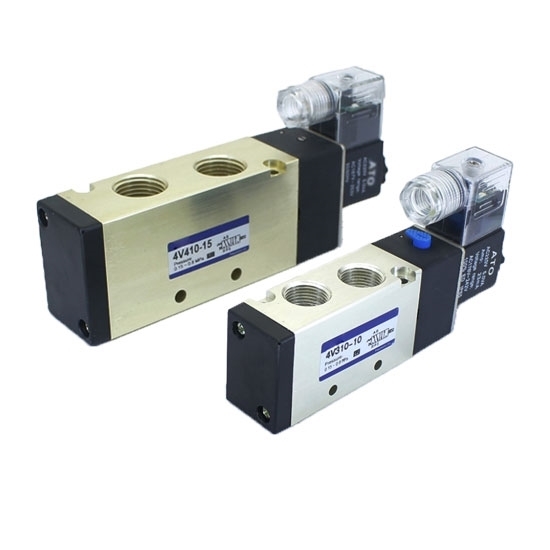

Pneumatic Single Solenoid Valve, 5 Way, 12V/24V/110V/220V

0 reviews • Write a review

from

$49.59

Ex Tax: $49.59

Stock: In Stock
Model: RDDLZ-VALVE-4VS
Weight: 1.00
SKU: RDDLZ-VALVE-4VS

Available Options

Short Description

Model

Voltage (V)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

With working voltage of DC 12 volt, DC 24 volt, AC 110 volt or AC 220 volt, Pneumatic solenoid valve features five-way two-position, single solenoid acting, fast and safe switching, and it is widely applied for air control in the chemical, petroleum, pharmaceutical, automotive, light industry, food, mineral processing, electroplating, metallurgy, textiles and other industrial areas.

Specification

Model

RDDLZ-4V110-M5

RDDLZ-4V110-06

RDDLZ-4V210-06

RDDLZ-4V210-08

RDDLZ-4V310-08

RDDLZ-4V310-10

RDDLZ-4V410-15

Number of Ports

5-way

Number of Positions

2-position

Operation Mode

Internally Pilot Operated

Number of Solenoid

Single

Port Size

M5×0.8

Rc 1/8"

Rc 1/4"

Rc 3/8"

Rc 1/2"

Media

Air

Operating Pressure Range

0.15~0.8MPa (22~116PSI)

Max. Pressure Resistance

1.2MPa

Voltage (Optional)

12V DC, 24V DC, 110V AC, 220V AC

Dimensions

See below table

Voltage Tolerance

-10%~+10%

Operating Temperature

5℃~60℃ (41℉~140℉)

Insulation Grade

Class B

Protection Grade

IP65

Body Material

Aluminum Alloy

Seal Material

NBR

Wiring Method

Terminal type

Max. Action Frequency

5Hz (5 cycles/second)

Lubrication

Flow Characteristics
Dimensions
(body length unit = mm, port size unit = inch)

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O	P	Q	R	S	T	U	V
4V110-M5	13.2	30	14	21.2	M5×0.8	0	Φ3.3	27	Φ3.3	14	2.5	99.4	21.2	55	9.5	13	18	M5×0.8	14.7	27	28.2	0
4V110-06	13.2	30	16	20.2	PT1/8	3	Φ3.3	27	Φ3.3	14	2.5	99.4	21.2	55	9.5	13	18	PT1/8	14.2	28	28.2	1
4V210-06	12.7	38	18	22.7	PT1/8	0	Φ3.2	35	Φ4.3	20	3	117	21.7	66.7	10.5	17	22	PT1/8	13.7	36	31.7	0
4V210-08	12.7	38	21	21.2	PT1/4	3	Φ3.2	35	Φ4.3	20	3	117	21.7	66.7	10.5	17	22	PT1/8	13.7	36	31.7	0
4V310-08	15	50	22	29	PT1/4	0	Φ4.3	40	Φ4.3	24	2.4	135	28	69.2	13.5	20	27	PT1/4	17.5	45	40	0
4V310-10	15	50	24	28	PT3/8	4	Φ4.3	40	Φ4.3	24	2.4	135	28	69.2	13.5	20	27	PT1/4	17.5	45	40	0
4V410-15	21	72	36	39	PT1/2	4	Φ4.3	50	Φ5.5	28	2.8	168.4	43	74.2	17.5	27	34	PT1/2	25.5	63	57	0

5/2-Way Single Solenoid Valve Symbol (Flow Diagram)

Tips: How does a solenoid valve work?

The solenoid valve has an enclosed chamber inside and ventilated holes in different positions. Every hole is connected with different oil pipes. The chamber has a piston in the middle. The two sides are two pieces of electromagnets. The electrifying magnetic coil will attract the valve body to its side, so that different oil outlets will be opened or closed through controlling the movement of the valve body. However, the oil inlet is constantly open. The hydraulic oil will enter into different draw-off pipes. The oil pressure will be used to drive the piston of the oil cylinder, which will drive the piston rod and then the mechanical device. In this way, through controlling the current of the solenoid valve, the mechanical movement will be controlled.
