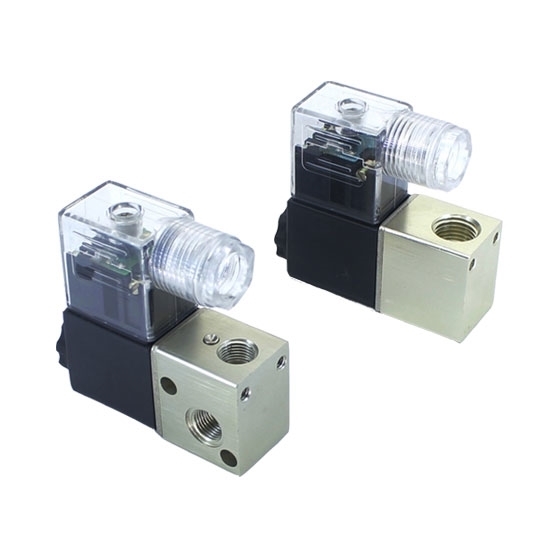

Pneumatic Solenoid Valve, 2 Way, 12V/24V/110V/220V

0 reviews • Write a review

from

$42.07

Ex Tax: $42.07

Stock: In Stock
Model: RDDLZ-VALVE-2V
Weight: 1.00
SKU: RDDLZ-VALVE-2V

Available Options

Short Description

Voltage (V)

Port Size

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This solenoid valve cannot be used for drinking water.

Pneumatic solenoid valve, 2-way 2-position, is designed to shut off and release the air with the power supplied by 12 volt, 24 volt, 110 volt or 220 volt. It is suitable for the industrial areas like chemical, petroleum, pharmaceutical, automotive, light industry, food, mineral processing, water treatment, electroplating, metallurgy, dyes, textiles.

Specification

Model	RDDLZ-2V025-06	RDDLZ-2V025-08
Number of Ports	2 way
Number of Positions	2 position
Operation Mode	Internally piloted
Flow Model	Uni-Directional
Port Size (Optional)	Rc 1/8"	Rc 1/4"
Media	Air
Operating Pressure Range	0.15~0.8MPa (22~116PSI)
Max. Pressure Resistance	1.2MPa
Voltage (Optional)	12V DC, 24V DC, 110V AC, 220V AC
Voltage Tolerance	-10%~+10%
Operating Temperature	5℃~60℃ (41℉~140℉)
Insulation Grade	Class B
Protection Grade	IP65
Body Material	Aluminum Alloy
Seal Material	NBR
Wiring Method	Terminal type
Max. Action Frequency	5Hz (5 cycles/second)
Lubrication	No

Flow Characteristics

Dimensions
(body length unit = mm, port size unit = inch)
2/2 Way Solenoid Valve Symbol (Flow Diagram)

Tips: What is a solenoid valve?

The solenoid valve is industrial equipment controlled by electromagnetism. It is an automatic basic element to control the fluid, like air, water, oil, etc. It belongs to the actuator, but not limits to the hydraulic pressure and pneumatic control.

In the industrial control system, the solenoid valve is used to regulate the direction, flow rate, speed and other parameters of the medium. The solenoid valve can coordinate with different circuits to realize the anticipated control, with both control precision and flexibility being guaranteed.
